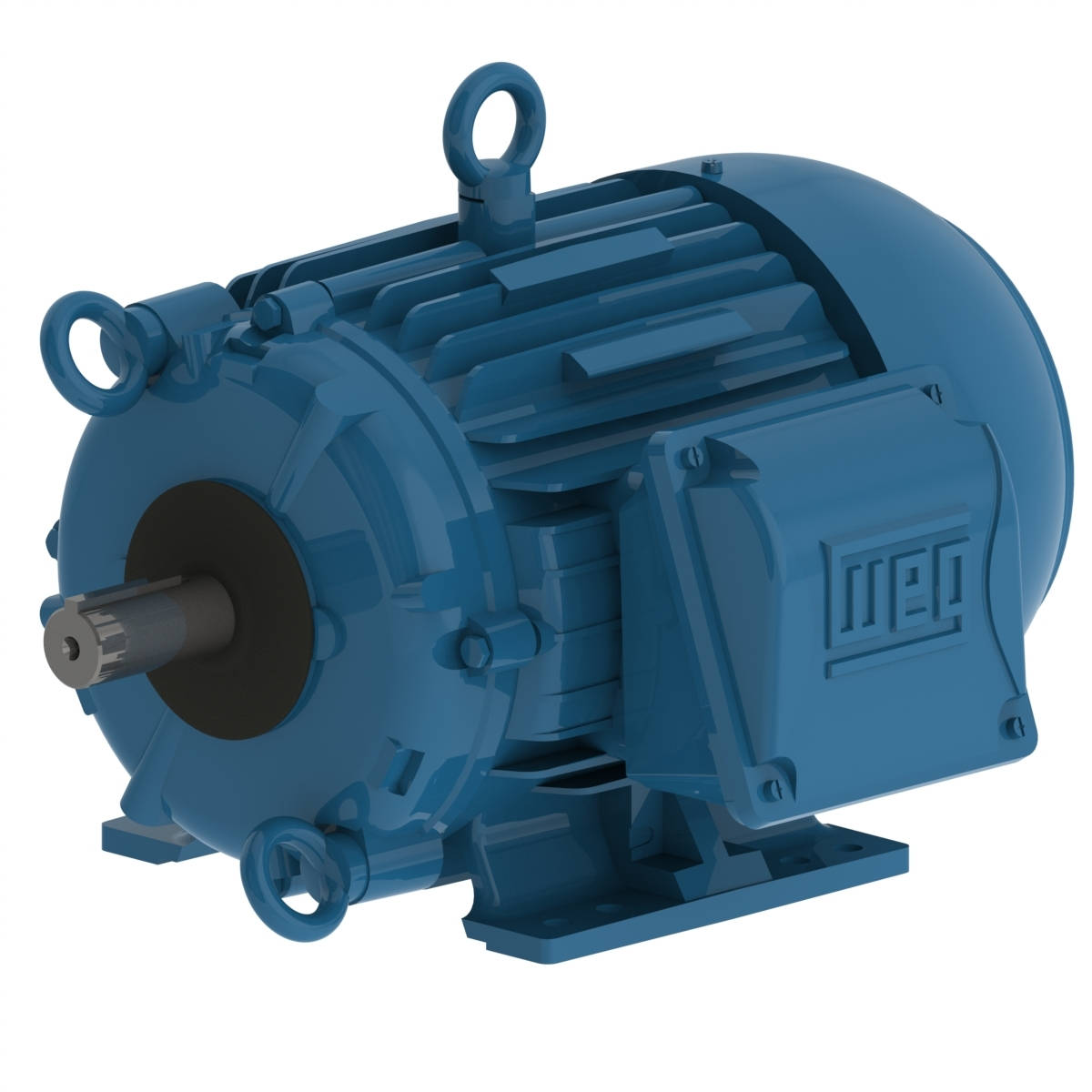

Frame	213/5T
Output	0.75 HP (0.550 kW)
Number of Poles	12/6
Frequency	60 Hz
Rated speed	560 rpm
Slip	6.67 %
Rated voltage	460 V
Rated current	1.78 A
L. R. Amperes	5.16 A
LRC	2.9x(Code F)
No load current	1.20 A
Rated torque	7.03 ft.lb
Locked rotor torque	130 %
Breakdown torque	158 %
Locked rotor time	162s (cold) 90s (hot)

Moment of inertia (J)	1.90 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	165 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
66.0	68.0	68.0

Power factor

50%	75%	100%
0.40	0.50	0.57

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	12/6
Frequency	60 Hz
Rated speed	1160 rpm
Slip	3.33 %
Rated voltage	460 V
Rated current	4.11 A
L. R. Amperes	32.9 A
LRC	8.0x(Code K)
No load current	2.20 A
Rated torque	13.6 ft.lb
Locked rotor torque	320 %
Breakdown torque	280 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	1.90 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	165 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	82.5	84.0

Power factor

50%	75%	100%
0.60	0.72	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
