/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Farm Duty/Grain Dryer/00336AP3EGD145TZ-S WEG 1.5/3HP Grain Dryer Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00336AP3EGD145TZ-S

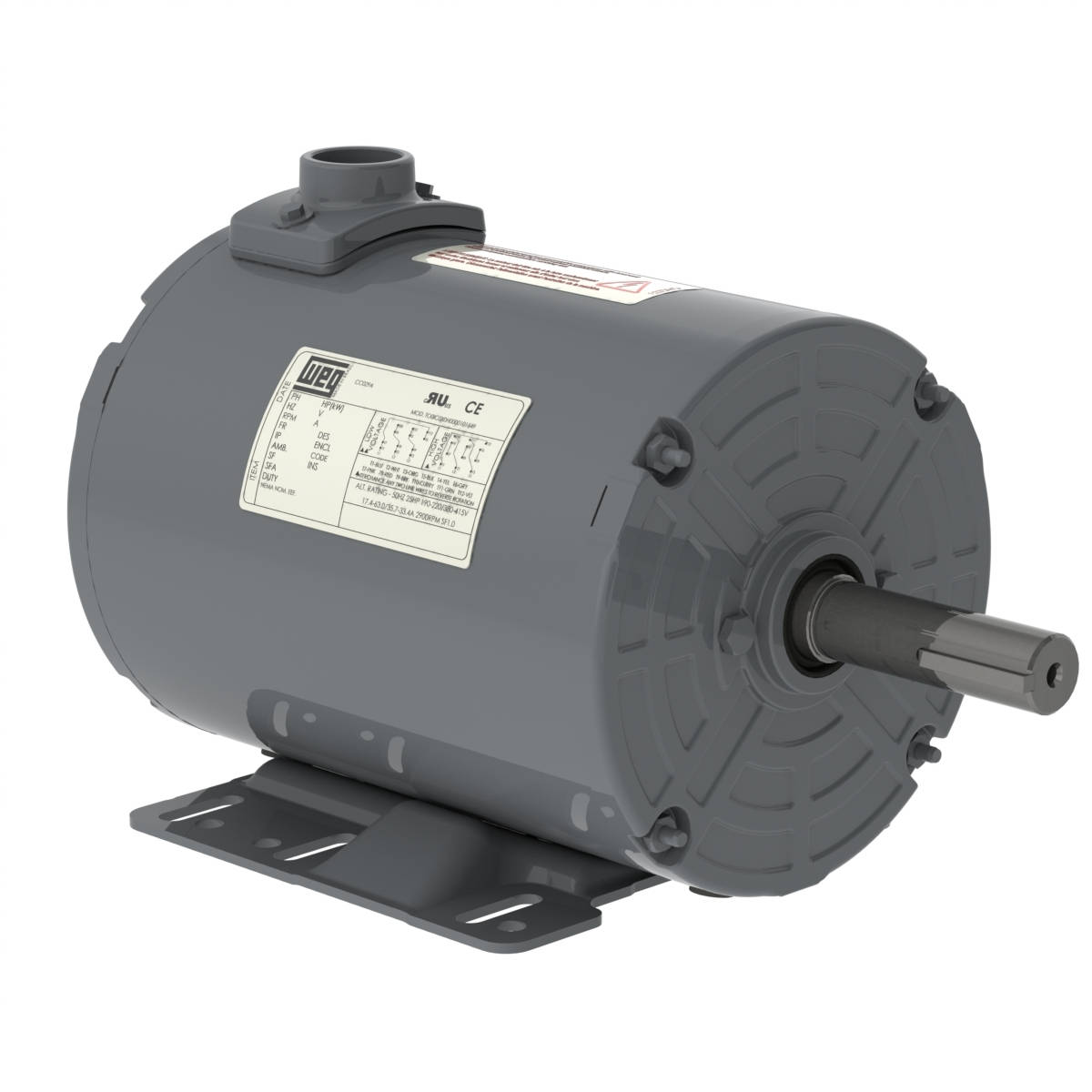

00336AP3EGD145TZ-S WEG 1.5/3HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336AP3EGD145TZ-S

Selected accessories will also be added to cart
$667.50 / Each
Quantity:
IC410-TEAO, IP55, 143/5TZ Frame, 208-230/460V, 60 Hz, 3 Phase

Electric Motors

Frame143/5TZ
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3550 rpm
Slip1.39 %
Rated voltage208-230/460 V
Rated current5.33-4.82/2.41 A
L. R. Amperes61.3-55.4/27.7 A
LRC11.5x(Code R)
No load current0.000-3.47/1.73 A
Rated torque2.19 ft.lb
Locked rotor torque450 %
Breakdown torque620 %
Locked rotor time27s (cold) 15s (hot)
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation?CCW
Approx. weight?36.2 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
69.5  76.3  79.7

Power factor

50%75%100%
0.51  0.63  0.72

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ  6203 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
100 lb 136 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Grain Dryer
Frame
143TZ
Horsepower
1.5HP
Horsepower
3HP
Frame
145TZ
