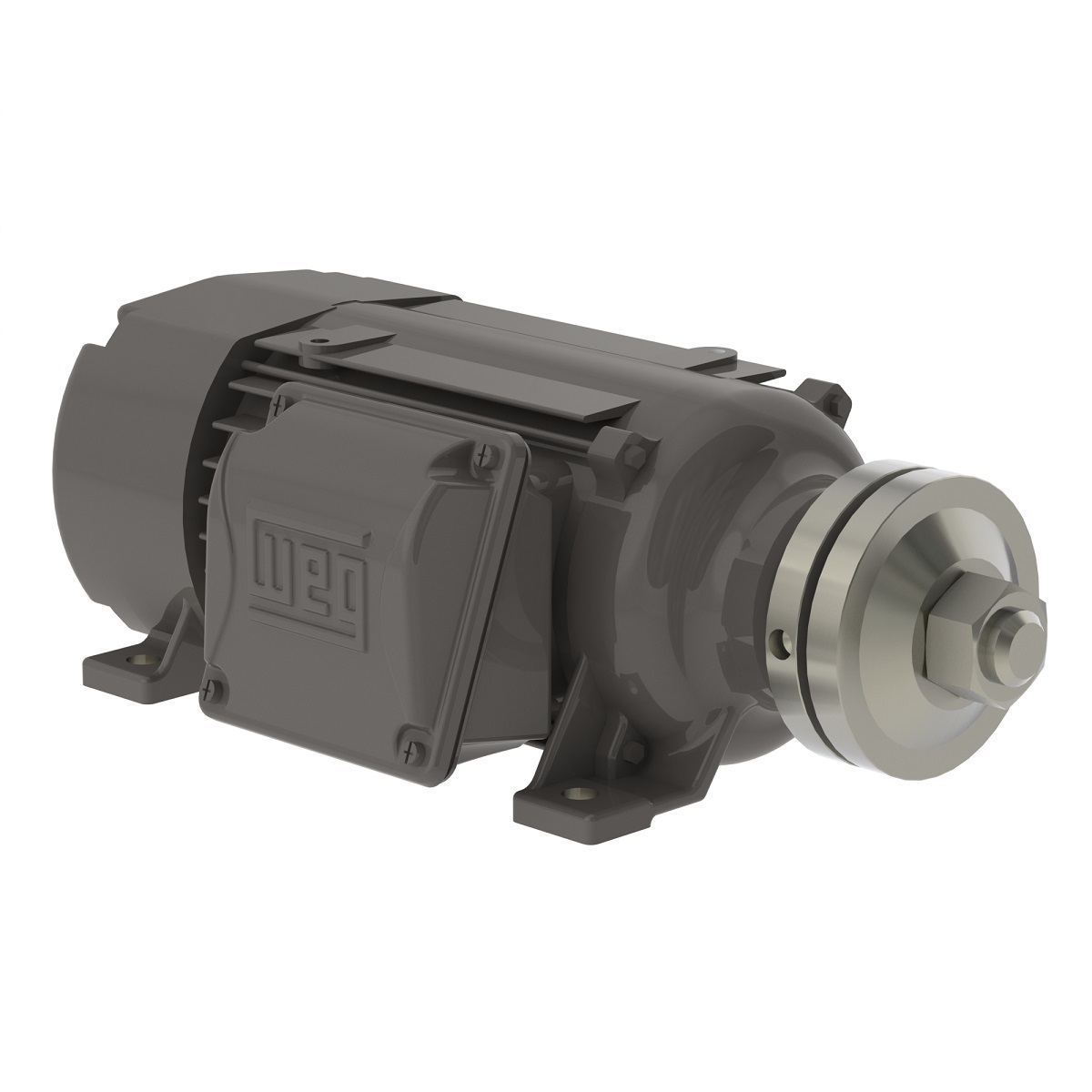

00336ES3ESA80SL WEG 3HP Saw Arbor Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ES3ESA80SL

00336ES3ESA80SL WEG 3HP Saw Arbor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ES3ESA80SL

Selected accessories will also be added to cart
$862.41 / Each
Quantity:
IC411 - TEFC, IP54, 80S/MS Frame, 208-230/460VAC 60Hz 3 Phase, 13574344, Standard Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame80S/MS
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage208-230/460 V
Rated current9.49-8.58/4.29 A
L. R. Amperes69.3-62.6/31.3 A
LRC7.3
No load current3.55-4.11/2.06 A
Rated torque4.50 ft.lb
Locked rotor torque330 %
Breakdown torque370 %
Locked rotor time16s (cold) 9s (hot)
DesignN
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleS6
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP54
EnclosureIC411 - TEFC
MountingB3R(D)
Rotation?CW
Noise level?62.0 dB(A)
Approx. weight?84.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
76.0  79.5  80.5

Power factor

50%75%100%
0.65  0.75  0.80

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeRWG(Rp) 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
3HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
80S/MS
