00336ET3H56CFL-S WEG 3HP General Purpose Electric Motor, 3600RPM

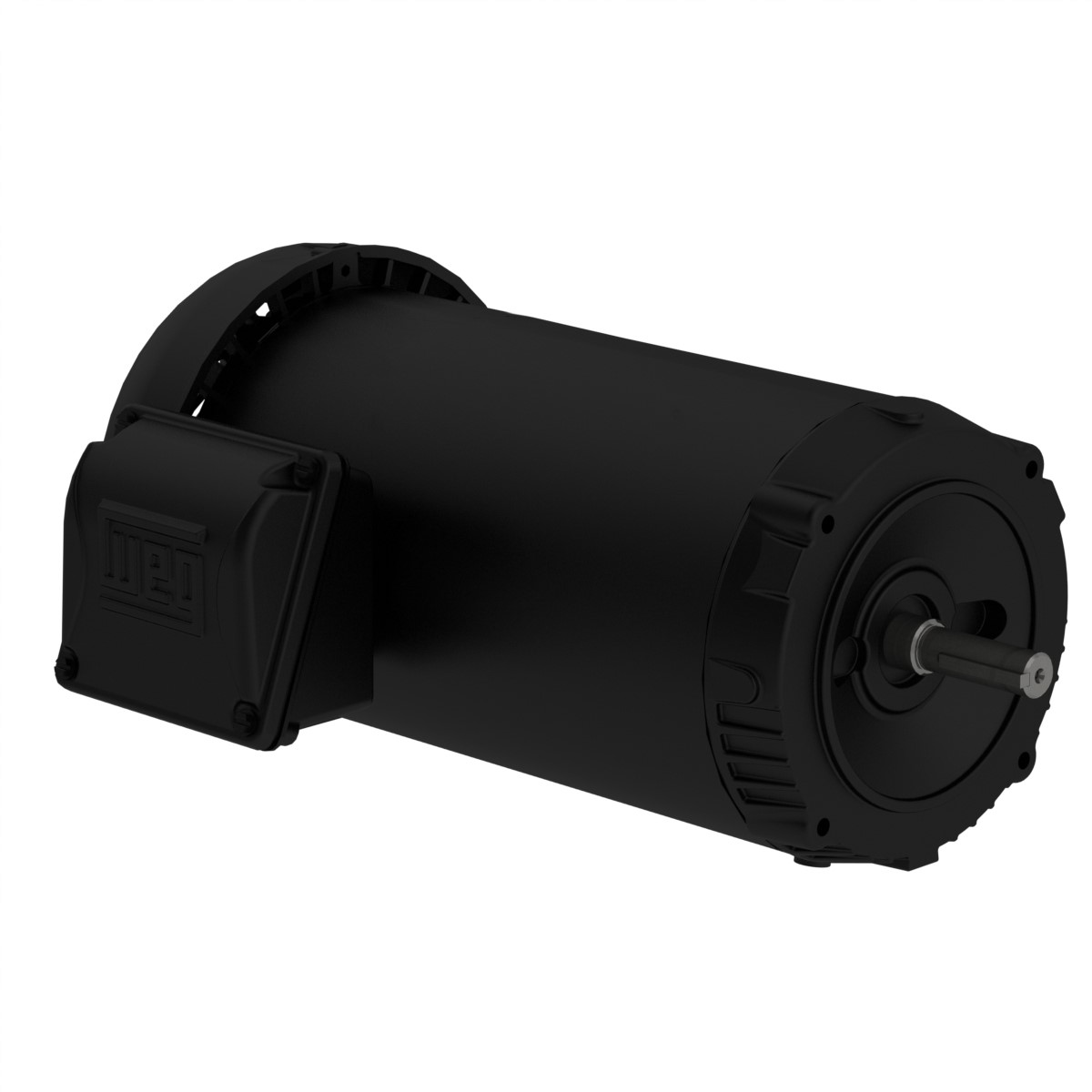

Enlarge Photo

Product ID: 00336ET3H56CFL-S

00336ET3H56CFL-S WEG 3HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ET3H56CFL-S

Selected accessories will also be added to cart
$539.34 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 575VAC 3-Phase 60Hz, 14786575, C-Face, Footless, Rolled Steel, NEMA Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage575 V
Rated current2.81 A
L. R. Amperes26.7 A
LRC9.5x(Code K)
No load current1.02 A
Rated torque4.44 ft.lb
Locked rotor torque300 %
Breakdown torque380 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.1663 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?48.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  86.5  86.5

Power factor

50%75%100%
0.78  0.87  0.91

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
3HP
Frame
56C
Enclosure
TEFC
Input Voltage
575VAC
