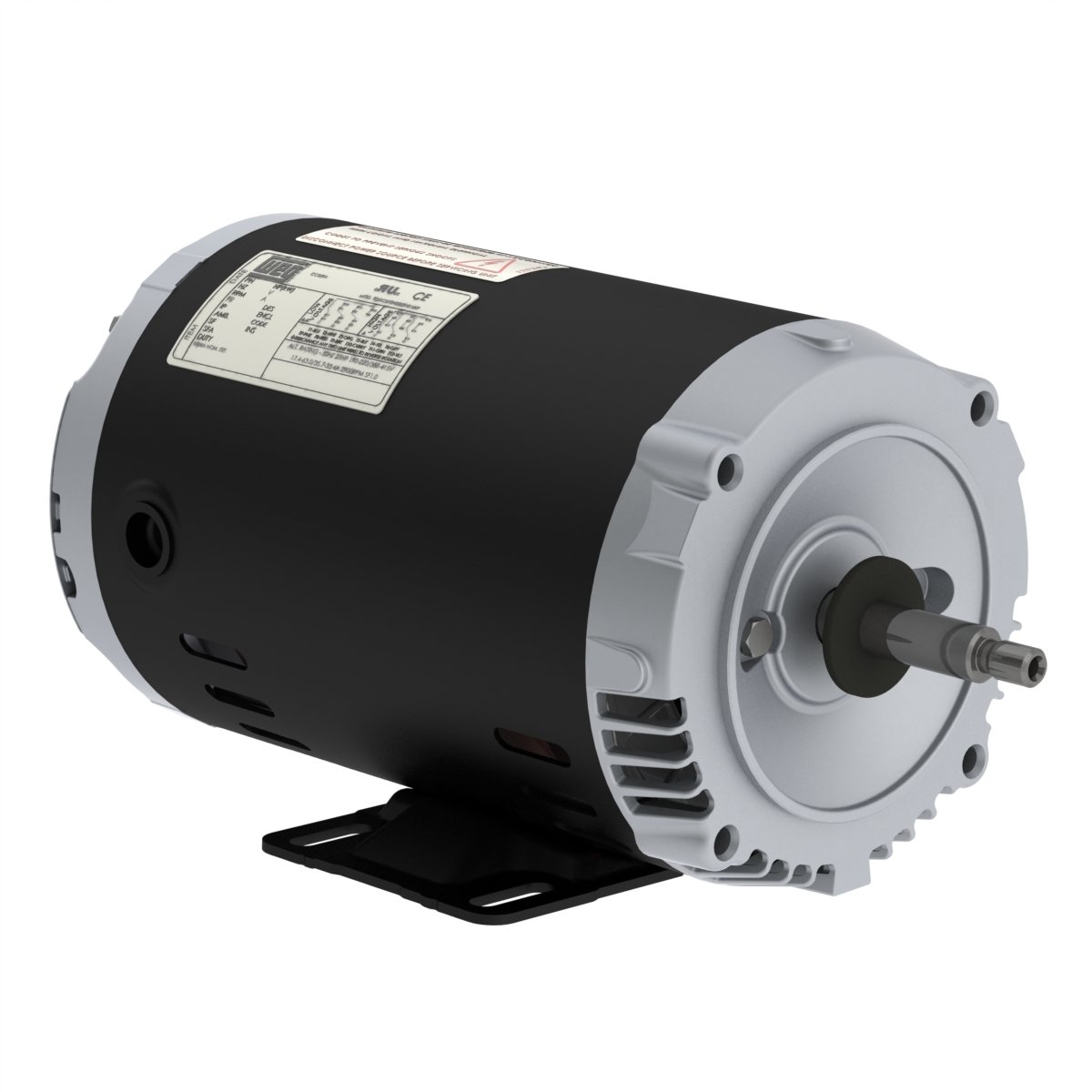

00336OS3HJP56J-S WEG 3HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336OS3HJP56J-S

00336OS3HJP56J-S WEG 3HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OS3HJP56J-S

Selected accessories will also be added to cart
$301.71 / Each
Quantity:
IC01 - ODP, 56HJ Frame, 575VAC 3-Phase 60Hz, 12676621, J-Type, Foot Mount, Rolled Steel, Standard Efficiency

Electric Motors

Frame56HJ
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3450 rpm
Slip4.17 %
Rated voltage575 V
Rated current3.11 A
L. R. Amperes21.8 A
LRC7.0x(Code J)
No load current1.28 A
Rated torque4.51 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0959 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?CCW
Noise level?62.0 dB(A)
Approx. weight?35.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  81.5  81.5

Power factor

50%75%100%
0.70  0.82  0.87

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodWithout Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
3HP
Enclosure
ODP
Input Voltage
575VAC
Frame
56HJ
