/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/C-Face, Foot Mount/00336ES1E145TC-S WEG 3HP Electric Motor, 3600RPM

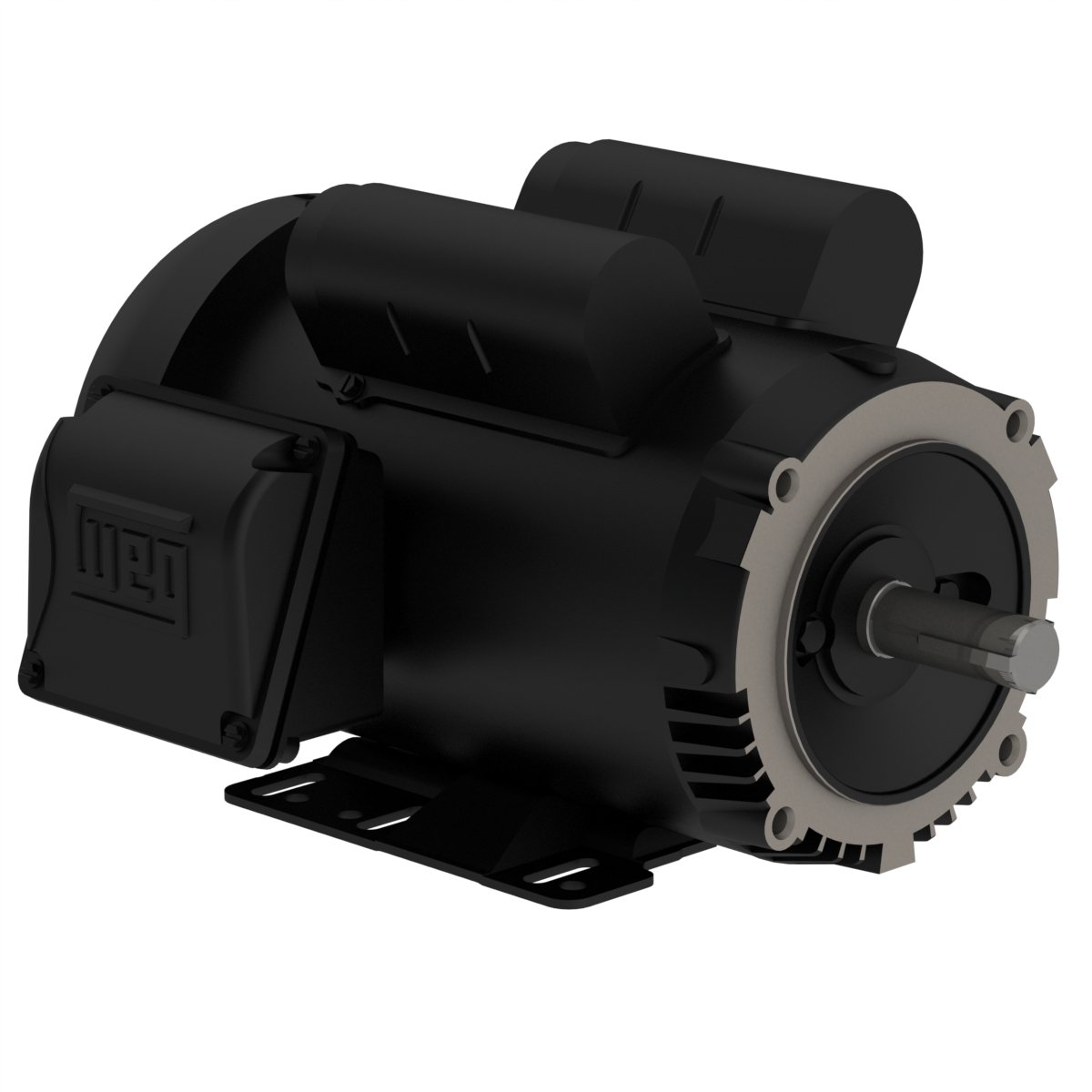

00336ES1E145TC-S WEG 3HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ES1E145TC-S

00336ES1E145TC-S WEG 3HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ES1E145TC-S

Selected accessories will also be added to cart
$763.62 / Each
Quantity:
IC411 - TEFC, 143TC/145TC Frame, 208-230/460VAC Single Phase 60Hz, 13821108, C-Face, Foot Mount, Rolled Steel, 7/8" Keyed Shaft

Electric Motors

Frame143/5TC
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3490 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current14.0-12.7/6.35 A
L. R. Amperes112-102/50.8 A
LRC8.0x(Code J)
No load current3.45-4.00/2.00 A
Rated torque4.45 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0944 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³49.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
76.079.080.0

Power factor

50%75%100%
0.860.920.94

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
3HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143TC
Frame
145TC
