/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00336ES1E145TC-W22 WEG 3HP Electric Motor, 3600RPM

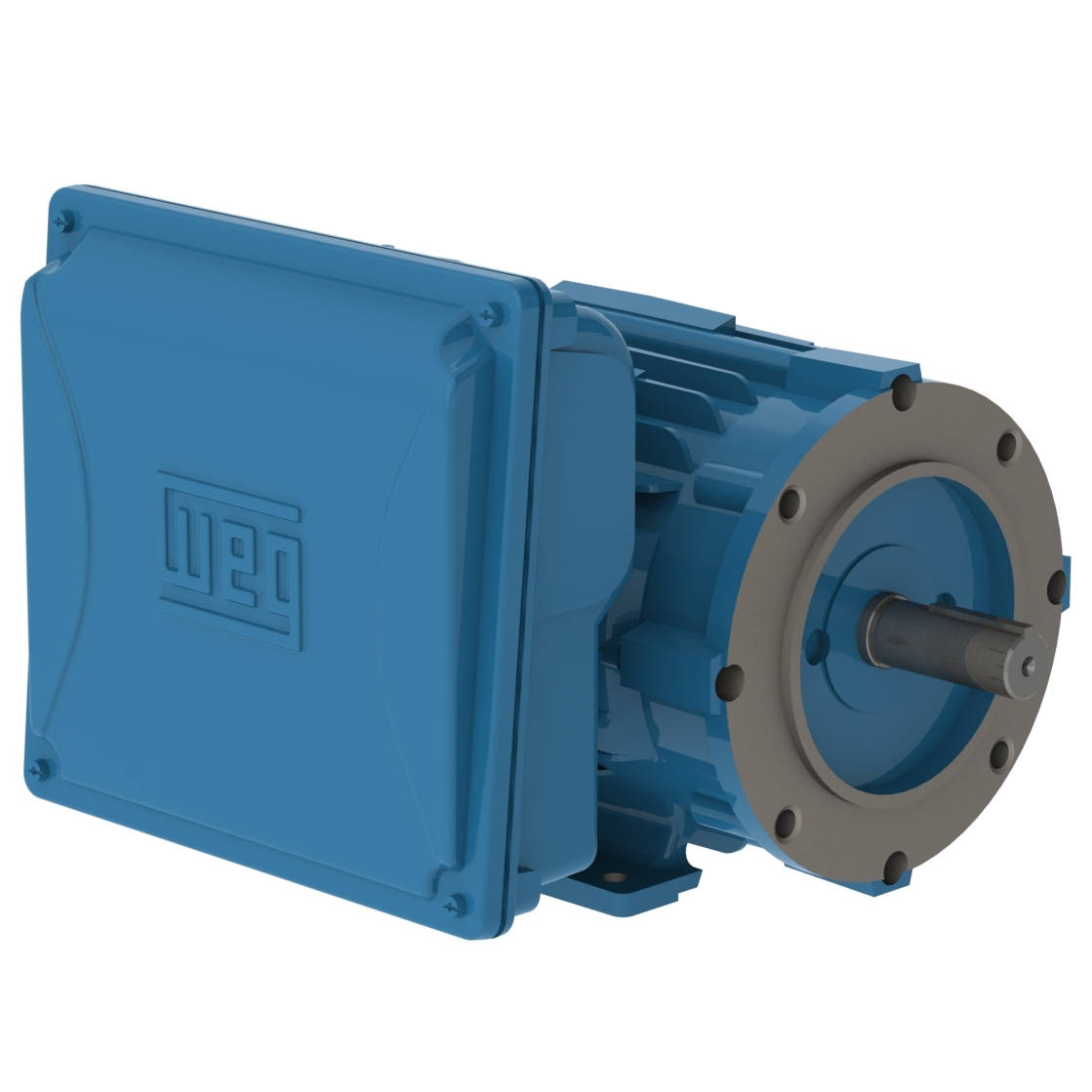

00336ES1E145TC-W22 WEG 3HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ES1E145TC-W22

00336ES1E145TC-W22 WEG 3HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ES1E145TC-W22

Selected accessories will also be added to cart
$782.31 / Each
Quantity:
IC411 - TEFC, IP55, 143TC/145TC Frame, 208-230/460VAC 60Hz Single Phase, 14018469, Foot Mounted, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5TC
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage208-230/460 V
Rated current13.6-12.5/6.25 A
L. R. Amperes97.9-90.0/45.0 A
LRC7.2x(Code H)
No load current2.50-2.90/1.45 A
Rated torque4.49 ft.lb
Locked rotor torque220 %
Breakdown torque240 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.0664 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²69.0 dB(A)
Approx. weight³68.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
72.576.078.5

Power factor

50%75%100%
0.960.970.97

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
3HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143TC
Frame
145TC
