/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TEFC, C-Face, Foot Mount/00336ET3EHD143TC WEG 3HP Hydroduty Washdown Electric Motor, 3600RPM

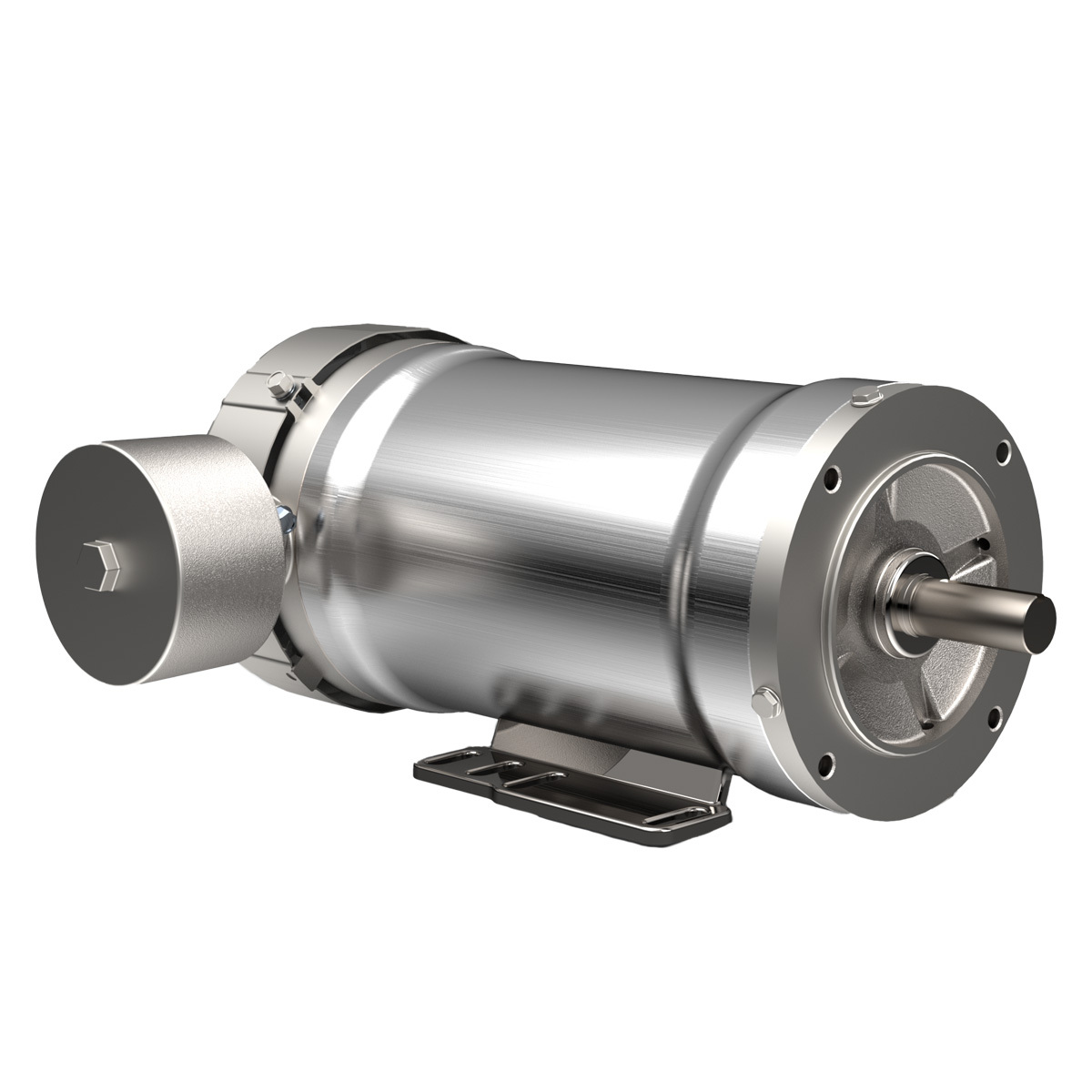

00336ET3EHD143TC WEG 3HP Hydroduty Washdown Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ET3EHD143TC

00336ET3EHD143TC WEG 3HP Hydroduty Washdown Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ET3EHD143TC

Selected accessories will also be added to cart
$2,047.00 / Each
Quantity:
TEFC, IP66, 145TC Frame, 230/460VAC 3-Phase 50/60Hz, 14763239, C-Face, Foot Mount, Stainless Steel, NEMA Premium Efficiency, EZ Connect
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

StandardNEMA MG-1
Degree of ProtectionIP66
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60/50 Hz
Output rating2 HP
EnclosureTEFC
Number of poles02P
Motor ApplicationHydroDuty
MountingFoot-mounted
EfficiencyNEMA Premium Efficiency
Terminal box¹Left position
Frame145TC
Voltage230/460 V
Synchronous speed3600/3000 rpm

Promo Video

Documents

Type
Electric Motor
Horsepower
2HP
Speed
3450RPM
Input Phase
3-Phase
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
145TC
