00336OS1B182JM-S WEG 3HP JM Close Coupled Pump Electric Motor, 3600RPM

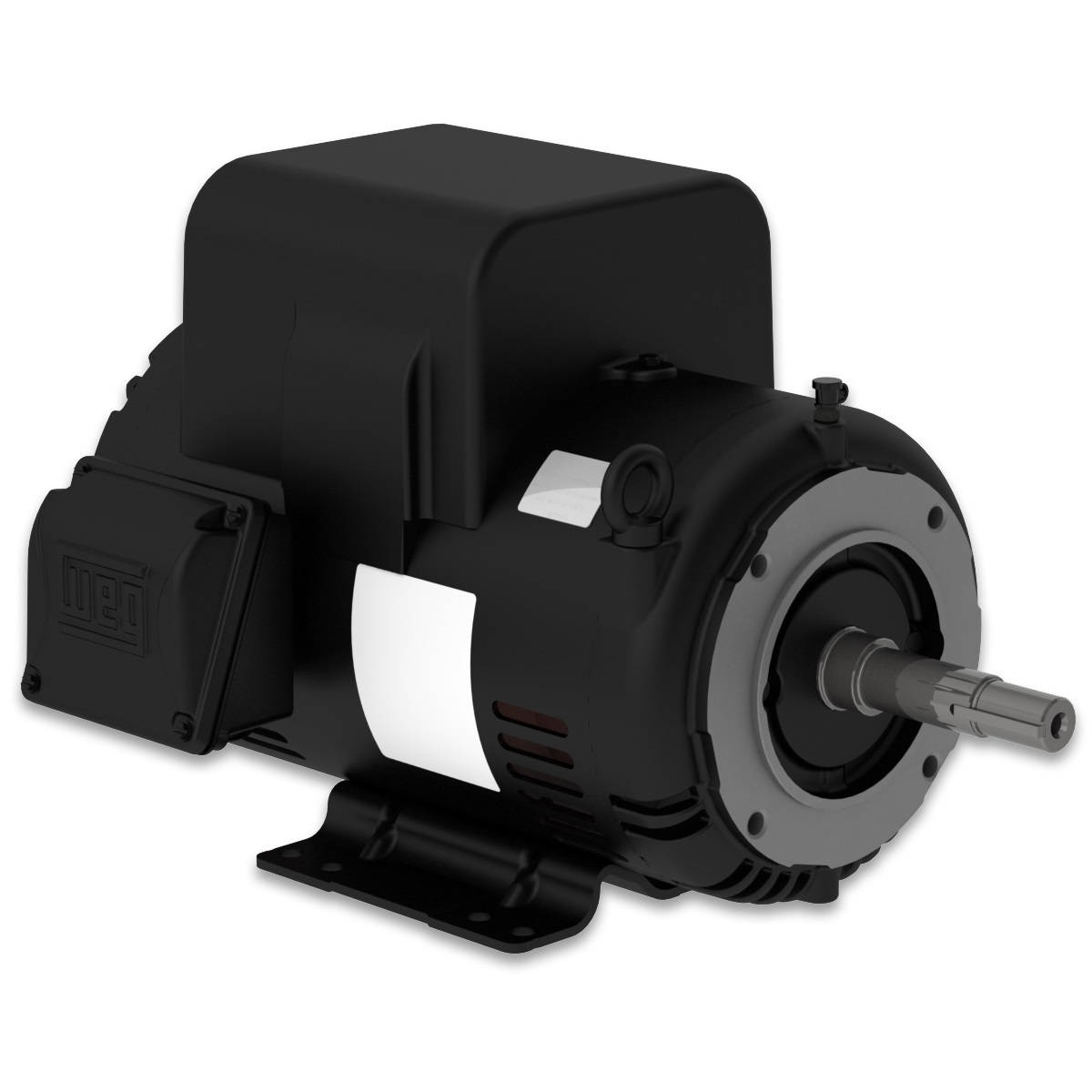

Enlarge Photo

Product ID: 00336OS1B182JM-S

00336OS1B182JM-S WEG 3HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OS1B182JM-S

Selected accessories will also be added to cart
$869.53 / Each
Quantity:
IC01 - ODP, 182JM/184JM Frame, 115/208-230VAC 60Hz Single Phase, 15211536, Rolled Steel, Foot Mounted

Electric Motors

Frame182/4JM
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage115/208-230 V
Rated current25.8/13.8-12.9 A
L. R. Amperes173/92.5-86.4 A
LRC6.7x(Code H)
No load current10.5/3.90-5.20 A
Rated torque4.49 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time19s (cold) 11s (hot)
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³75.0 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.880.681.5

Power factor

50%75%100%
0.800.880.91

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
182JM
Frame
184JM
