/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Compressor Duty/00336OS1CCD56-S WEG 3HP Compressor Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00336OS1CCD56-S

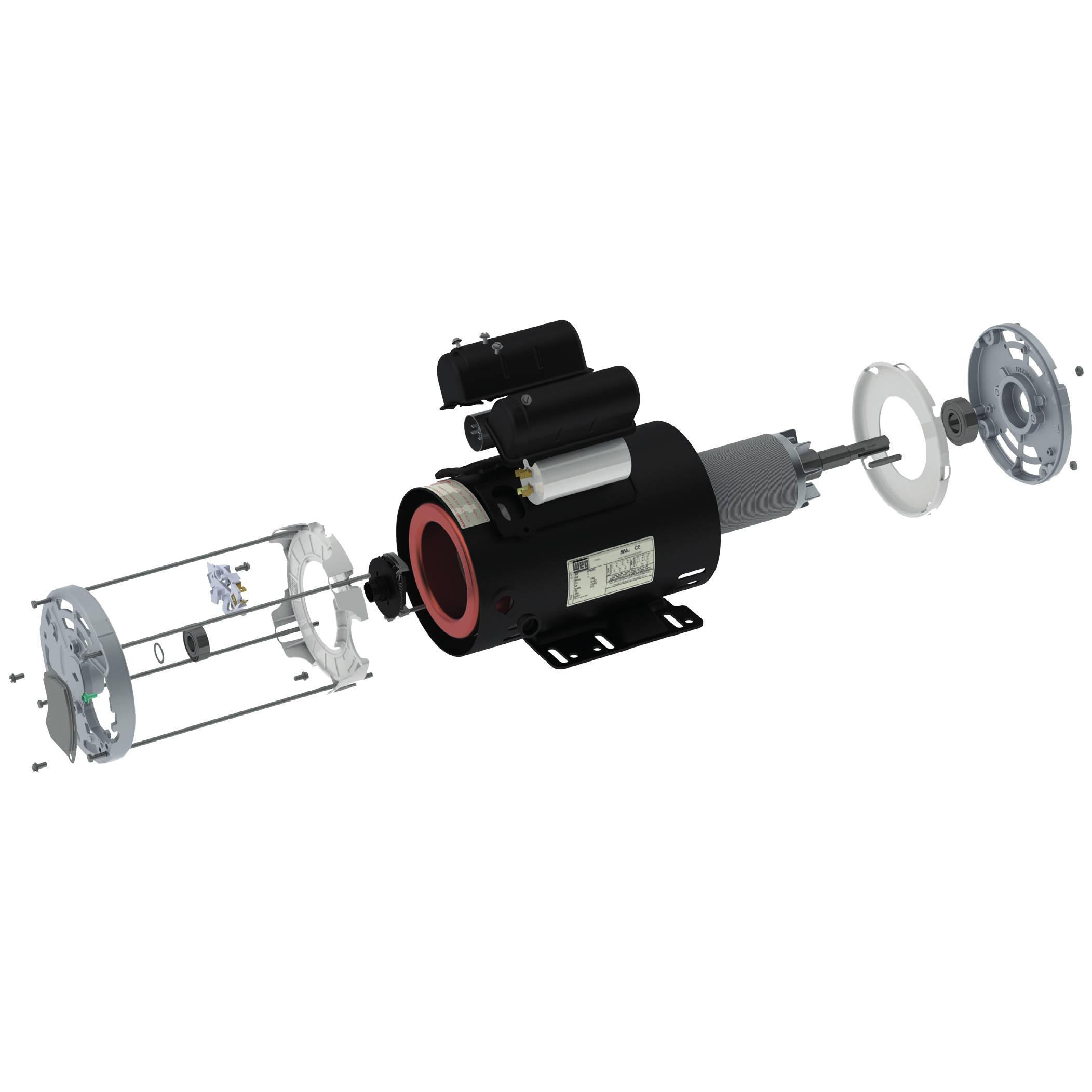

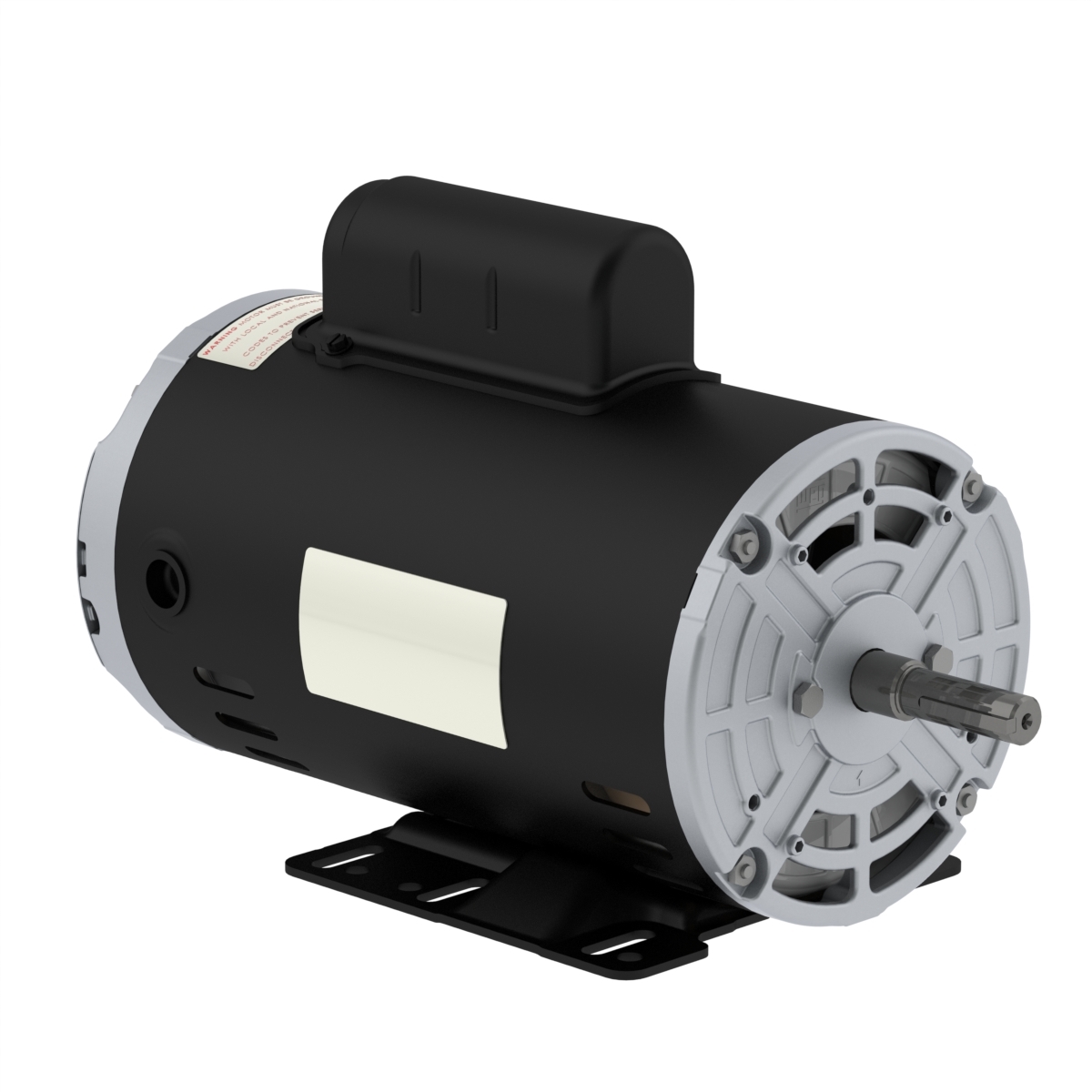

00336OS1CCD56-S WEG 3HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OS1CCD56-S

Available Stock: 2

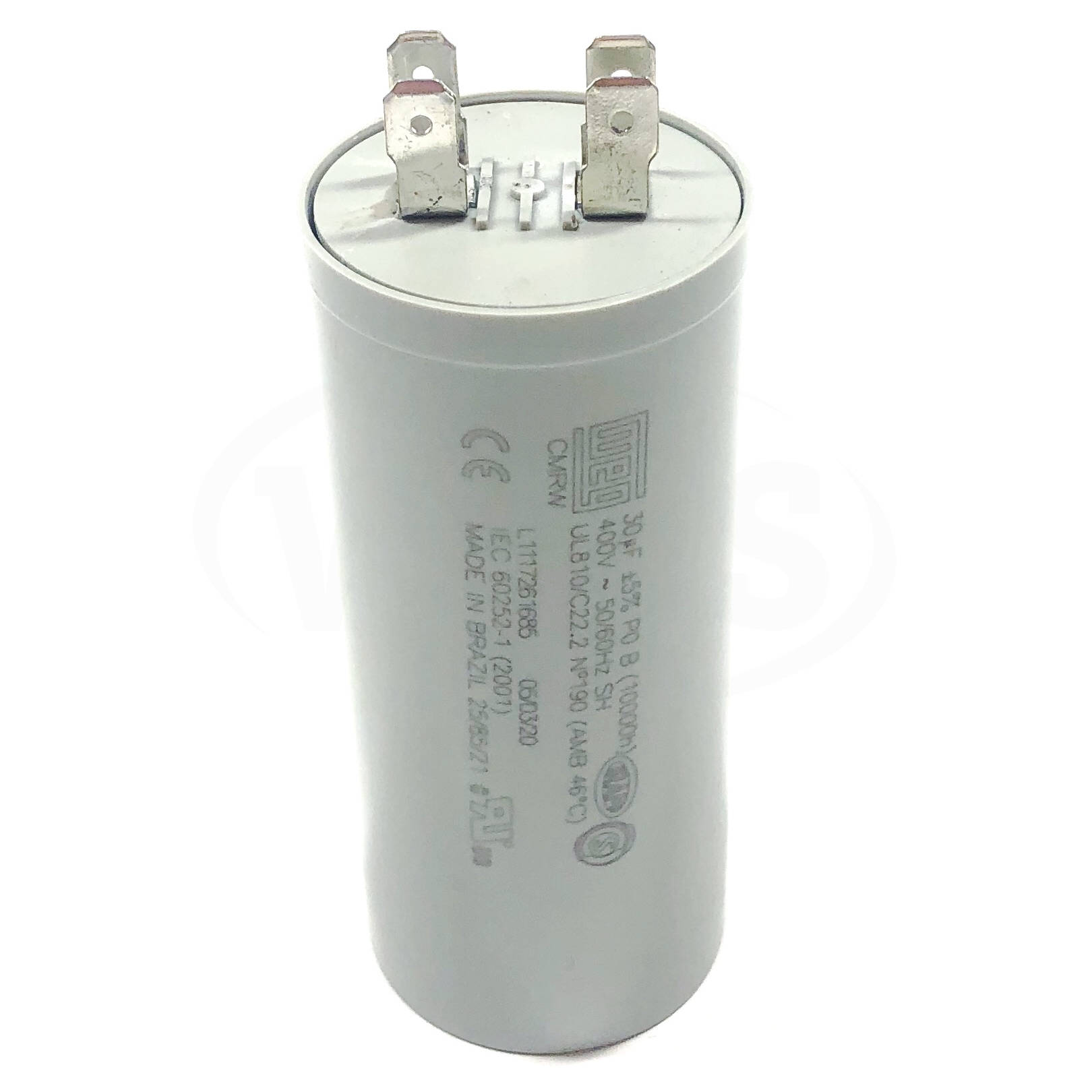

Selected accessories will also be added to cart
$384.48 / Each
Quantity:
IC01 - ODP, 56H Frame, 208-230V Single Phase 60Hz, 12882732, Rolled Steel, Foot Mount, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame56H
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3480 rpm
Slip3.33 %
Rated voltage208-230 V
Rated current13.0-12.7 A
L. R. Amperes88.4-86.4 A
LRC6.8x(Code H)
No load current4.05-4.70 A
Rated torque4.47 ft.lb
Locked rotor torque165 %
Breakdown torque250 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.0707 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise105 K
Service factor1.00 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³38.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
72.978.680.0

Power factor

50%75%100%
0.900.930.94

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6204 ZZ 6202 ZZ
SealingSem vedaçãoWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
90 lb129 lb

 Loading...

Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56H
Enclosure
ODP
Horsepower
3HP
