Motor/Control Division

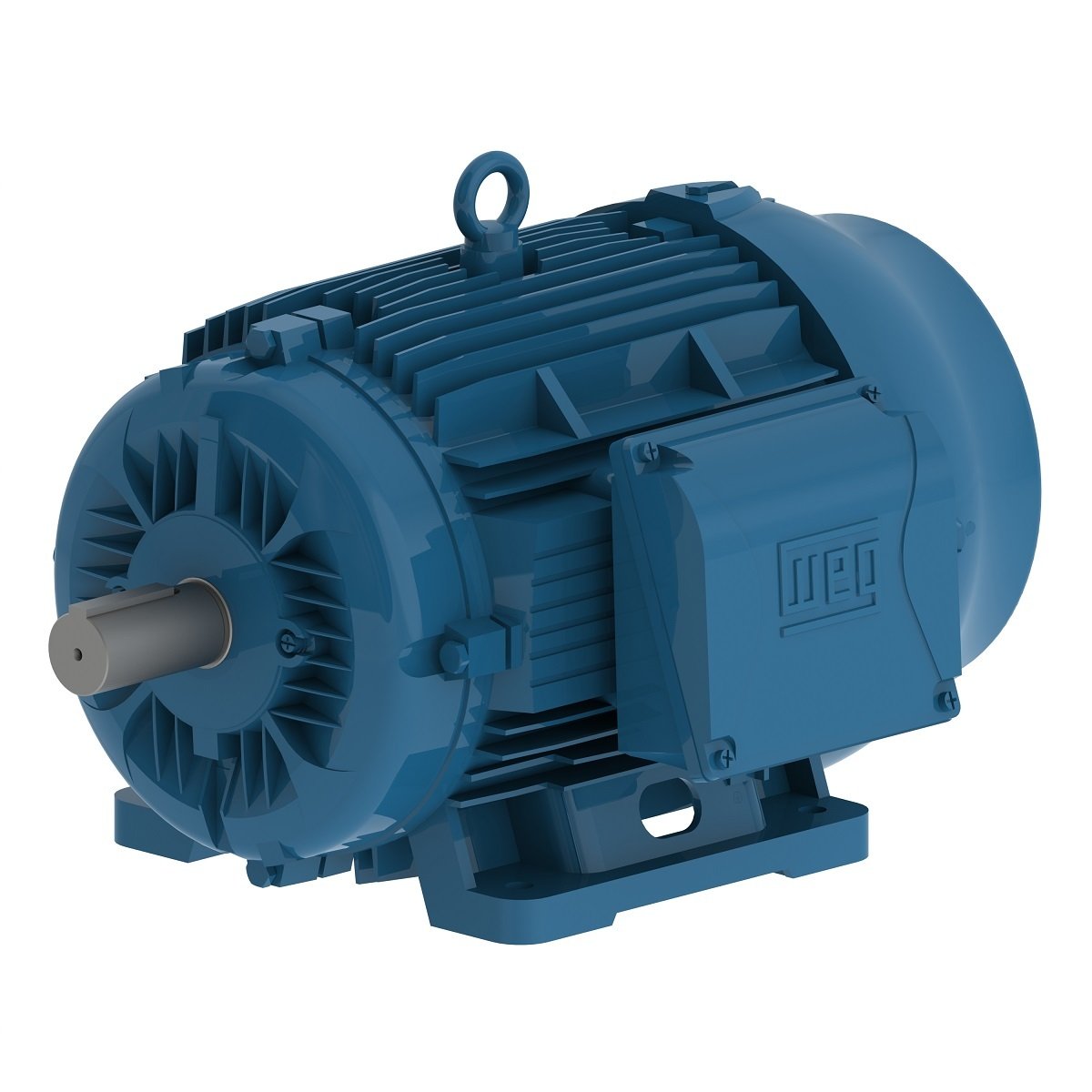

Frame	160M
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	9.54 A
L. R. Amperes	47.7 A
LRC	5.0
No load current	5.20 A
Rated torque	39.3 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	2.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	51.0 dB(A)
Approx. weightÂ³	246 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.6	86.8	86.1

Power factor

50%	75%	100%
0.56	0.68	0.74

Frame	160M
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	9.26 A
L. R. Amperes	46.3 A
LRC	5.0
No load current	5.50 A
Rated torque	39.0 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	2.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	51.0 dB(A)
Approx. weightÂ³	246 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	86.8	86.6

Power factor

50%	75%	100%
0.52	0.65	0.72

Frame	160M
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	9.16 A
L. R. Amperes	45.8 A
LRC	5.0
No load current	5.80 A
Rated torque	39.0 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	61s (cold) 34s (hot)

Moment of inertia (J)	2.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	51.0 dB(A)
Approx. weightÂ³	246 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.4	86.6	86.8

Power factor

50%	75%	100%
0.49	0.62	0.70

Frame	160M
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	883 rpm
Slip	1.89 %
Rated voltage	460 V
Rated current	8.41 A
L. R. Amperes	45.4 A
LRC	5.4
No load current	5.14 A
Rated torque	32.3 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	84s (cold) 47s (hot)

Moment of inertia (J)	2.39 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	54.0 dB(A)
Approx. weightÂ³	246 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	86.5

Power factor

50%	75%	100%
0.49	0.62	0.69

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
