00412ET3YAL132MFF-W22 WEG 5.5HP/4kW IEC Tru-Metric Electric Motor, 1200RPM

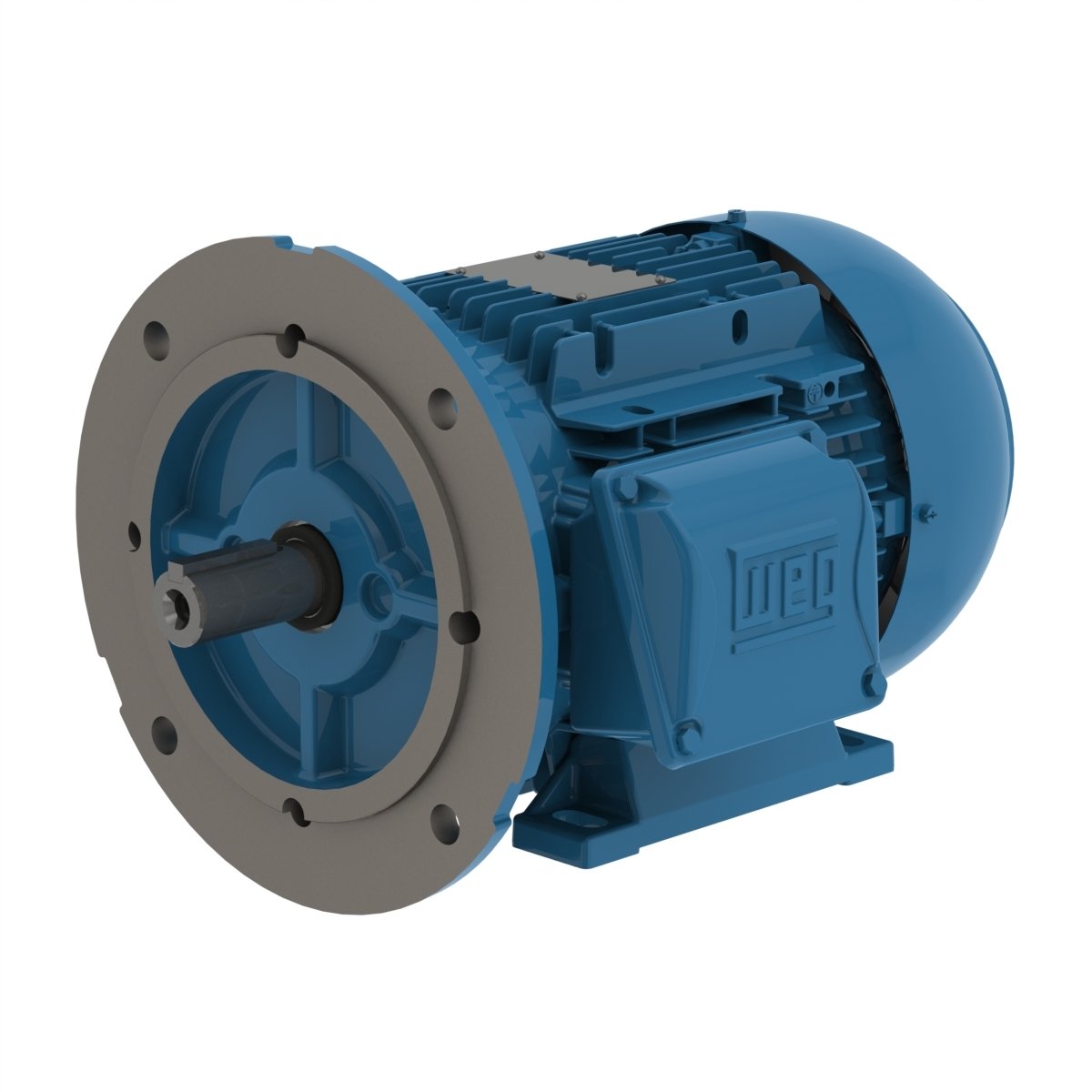

Enlarge Photo

Product ID: 00412ET3YAL132MFF-W2

00412ET3YAL132MFF-W22 WEG 5.5HP/4kW IEC Tru-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00412ET3YAL132MFF-W22

Selected accessories will also be added to cart
$999.75 / Each
Quantity:
IC411-TEFC, IP55, 132M Frame, 460/380-415VAC 3-Phase 50/60Hz, 14052066, Foot Mounted, FF-Flange, 38mm Keyed Shaft, Multimounting, Aluminum Frame

Electric Motors

Frame 132M
Output 5.5 HP (4 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 380 V
Rated current 9.21 A
L. R. Amperes 59.9 A
LRC 6.5
No load current 4.70 A
Rated torque 29.8 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 150 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.6  86.9  86.8

Power factor

50% 75% 100%
0.57  0.70  0.76
Frame 132M
Output 5.5 HP (4 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 8.99 A
L. R. Amperes 58.4 A
LRC 6.5
No load current 5.10 A
Rated torque 29.7 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 150 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.0  86.8  86.8

Power factor

50% 75% 100%
0.53  0.66  0.74
Frame 132M
Output 5.5 HP (4 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 415 V
Rated current 9.02 A
L. R. Amperes 58.6 A
LRC 6.5
No load current 5.50 A
Rated torque 29.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 150 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.4  86.6  86.9

Power factor

50% 75% 100%
0.50  0.63  0.71
Frame 132M
Output 5.5 HP (4 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 460 V
Rated current 7.90 A
L. R. Amperes 55.3 A
LRC 7.0
No load current 4.80 A
Rated torque 24.5 ft.lb
Locked rotor torque 190 %
Breakdown torque 300 %
Locked rotor time 77s (cold) 43s (hot)
Moment of inertia (J) 1.34 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 150 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  88.5  89.5

Power factor

50% 75% 100%
0.50  0.63  0.71

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
