Motor/Control Division

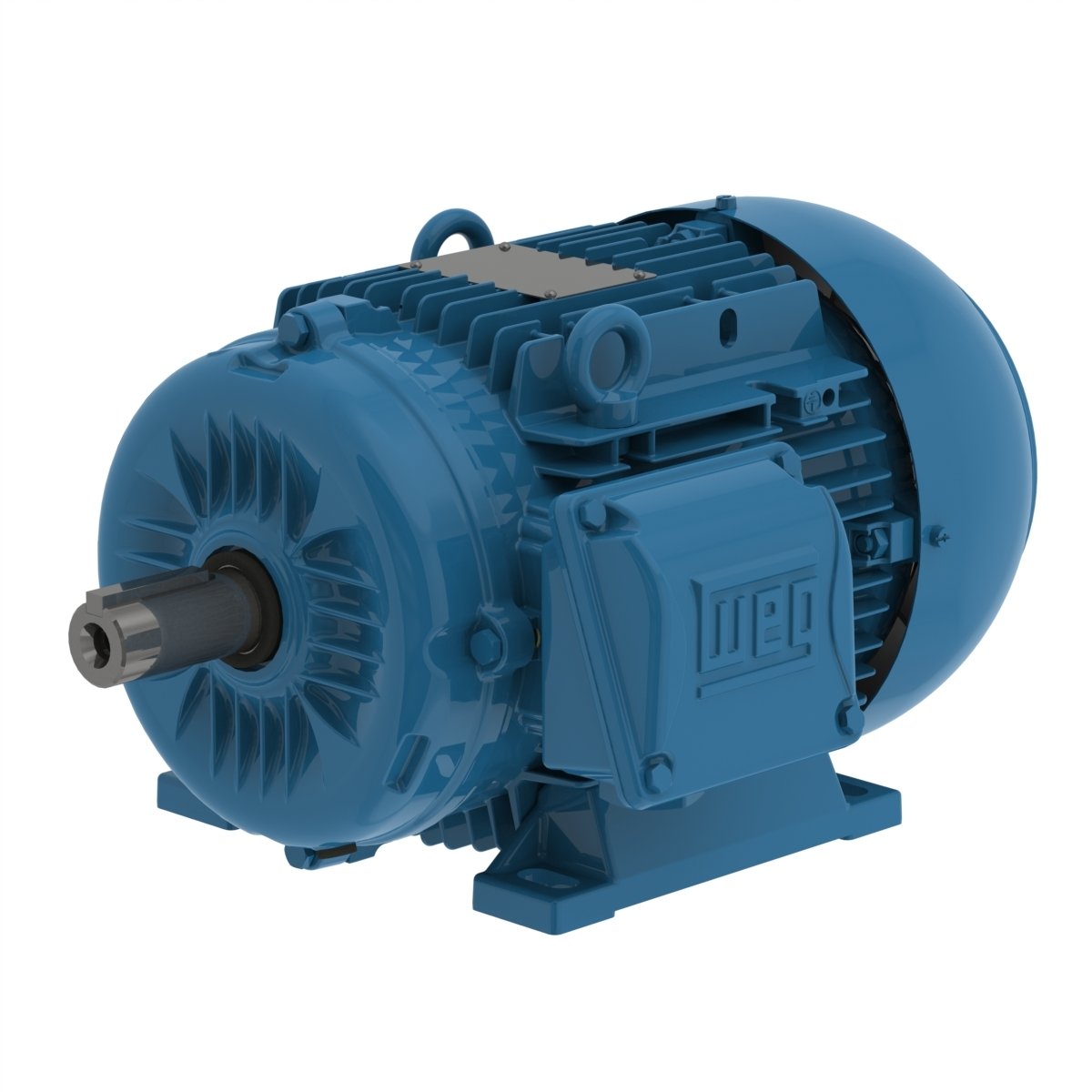

Frame	132M
Output	5.5 HP (4 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	955 rpm
Slip	4.50 %
Rated voltage	380 V
Rated current	9.21 A
L. R. Amperes	59.9 A
LRC	6.5
No load current	4.70 A
Rated torque	29.8 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	53.0 dB(A)
Approx. weightÂ³	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.6	86.9	86.8

Power factor

50%	75%	100%
0.57	0.70	0.76

Frame	132M
Output	5.5 HP (4 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	8.99 A
L. R. Amperes	58.4 A
LRC	6.5
No load current	5.10 A
Rated torque	29.7 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	53.0 dB(A)
Approx. weightÂ³	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.0	86.8	86.8

Power factor

50%	75%	100%
0.53	0.66	0.74

Frame	132M
Output	5.5 HP (4 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	415 V
Rated current	9.02 A
L. R. Amperes	58.6 A
LRC	6.5
No load current	5.50 A
Rated torque	29.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	53.0 dB(A)
Approx. weightÂ³	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.4	86.6	86.9

Power factor

50%	75%	100%
0.50	0.63	0.71

Frame	132M
Output	5.5 HP (4 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1165 rpm
Slip	2.92 %
Rated voltage	230/460 V
Rated current	15.8/7.90 A
L. R. Amperes	111/55.3 A
LRC	7.0
No load current	9.60/4.80 A
Rated torque	24.5 ft.lb
Locked rotor torque	190 %
Breakdown torque	300 %
Locked rotor time	77s (cold) 43s (hot)

Moment of inertia (J)	1.34 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	55.0 dB(A)
Approx. weightÂ³	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	88.5	89.5

Power factor

50%	75%	100%
0.50	0.63	0.71

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
