/Products/Electric Motors/3 Phase Explosion Proof/WEG 3-Phase Explosion Proof Electric Motors/Foot Mount/00509XT3E254T WEG 5HP Explosion Proof Electric Motor, 900RPM

Product ID: 00509XT3E254T

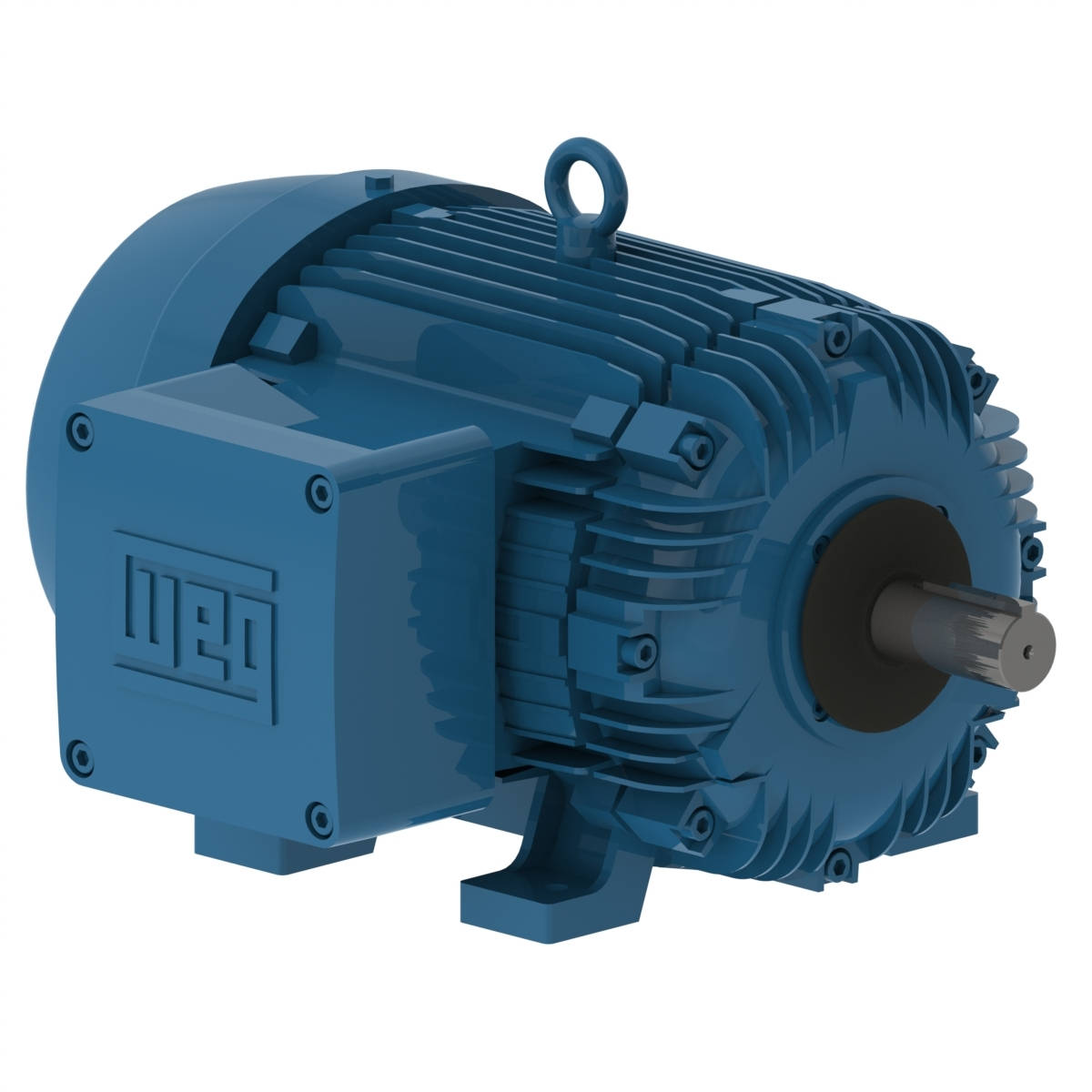

00509XT3E254T WEG 5HP Explosion Proof Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00509XT3E254T

Selected accessories will also be added to cart

$3,518.17 / Each

Quantity:

IC411-TEFC, IP55, 254T Frame, 230/460VAC, 50/60Hz, 3 Phase
14407417, Foot-mounted, Cast Iron Frame, Explosion proof, NEMA Premium Efficiency

Frame	254T
Output	5 HP (3.7 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	15.9/7.93 A
L. R. Amperes	84.0/42.0 A
LRC	5.3x(Code H)
No load current	11.0/5.50 A
Rated torque	29.8 ft.lb
Locked rotor torque	210 %
Breakdown torque	270 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	3.41 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	322 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
