/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount, C-Face/00509ST3QIE254TC-W22 WEG 5HP Severe Duty Electric Motor, 900RPM

Product ID: 00509ST3QIE254TC-W22

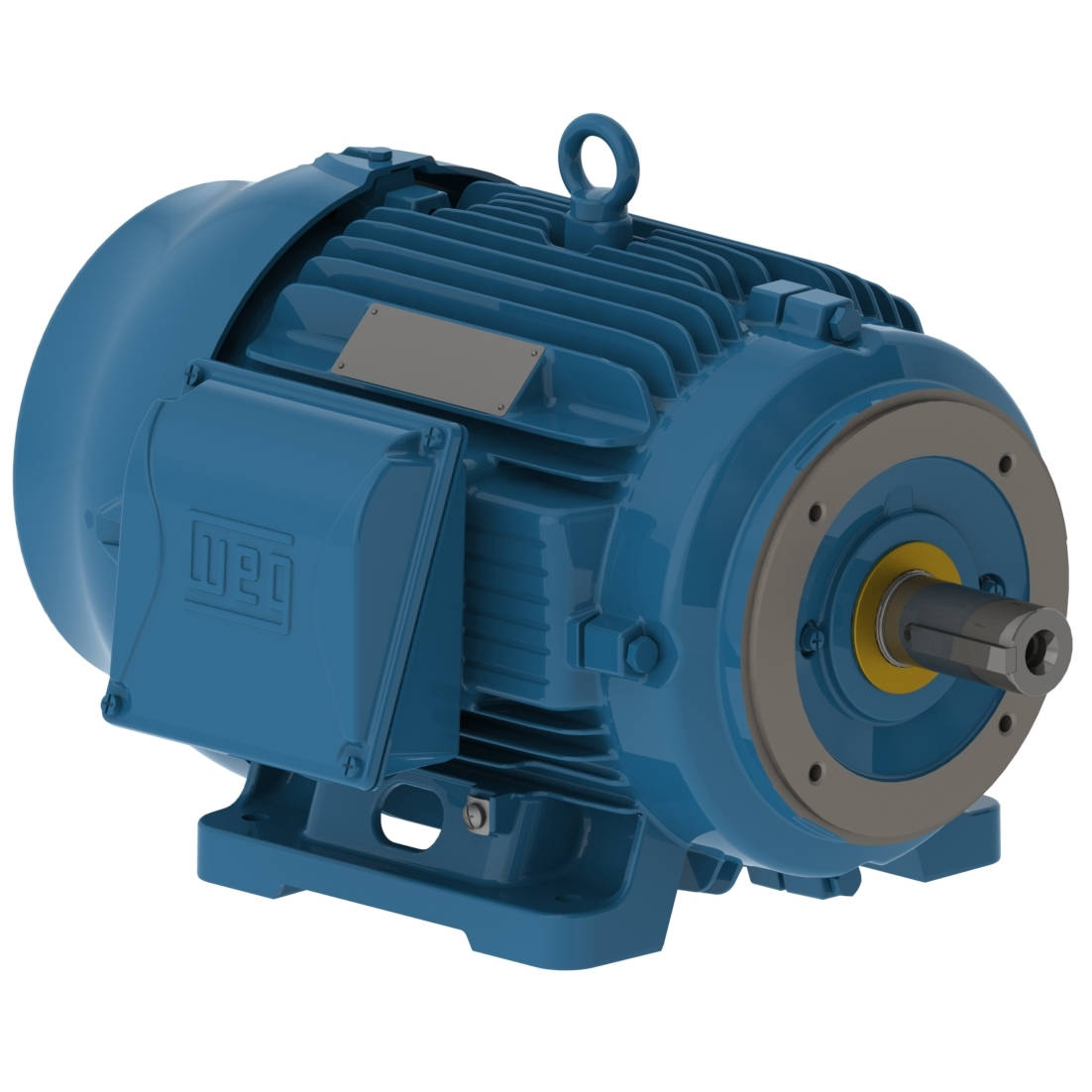

00509ST3QIE254TC-W22 WEG 5HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00509ST3QIE254TC-W22

Selected accessories will also be added to cart

$3,883.07 / Each

Quantity:

IC411 - TEFC, IP55, 254TC/256TC Frame, 460VAC 60Hz 3 Phase, 12384947, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, IEEE 841, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6TC
Output	5 HP (3.7 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	882 rpm
Slip	2.00 %
Rated voltage	460 V
Rated current	7.58 A
L. R. Amperes	40.2 A
LRC	5.3x(Code H)
No load current	4.50 A
Rated torque	29.8 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	79s (cold) 44s (hot)

Moment of inertia (J)	3.41 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	54.0 dB(A)
Approx. weight?	264 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	87.5

Power factor

50%	75%	100%
0.49	0.62	0.70

Frame	254/6TC
Output	5 HP (3.7 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	8.84 A
L. R. Amperes	38.0 A
LRC	4.3x(Code F)
No load current	4.45 A
Rated torque	36.2 ft.lb
Locked rotor torque	150 %
Breakdown torque	190 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	3.41 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	51.0 dB(A)
Approx. weight?	264 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	85.5	84.8

Power factor

50%	75%	100%
0.56	0.68	0.75

Frame	254/6TC
Output	5 HP (3.7 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	8.56 A
L. R. Amperes	40.2 A
LRC	4.7x(Code F)
No load current	4.75 A
Rated torque	36.2 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	3.41 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	51.0 dB(A)
Approx. weight?	264 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	85.5

Power factor

50%	75%	100%
0.52	0.65	0.73

Frame	254/6TC
Output	5 HP (3.7 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	8.48 A
L. R. Amperes	42.4 A
LRC	5.0x(Code G)
No load current	4.95 A
Rated torque	36.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	3.41 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	51.0 dB(A)
Approx. weight?	264 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	85.5

Power factor

50%	75%	100%
0.50	0.63	0.71

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
