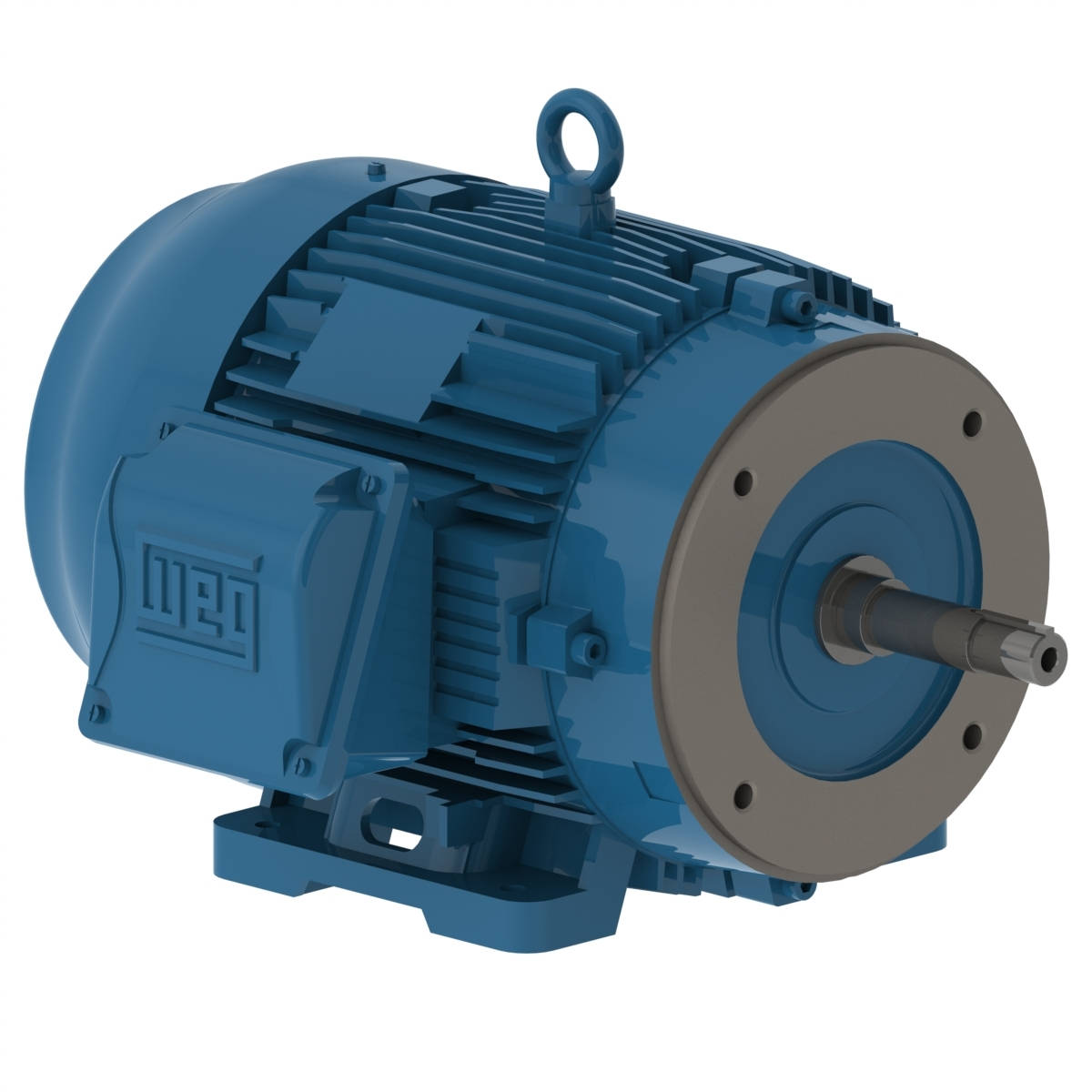

00512ET3E215JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00512ET3E215JM-W22

00512ET3E215JM-W22 WEG 5HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512ET3E215JM-W22

Selected accessories will also be added to cart
$1,574.41 / Each
Quantity:
IC411 - TEFC, IP55, 213JM/215JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 12132187, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame213/5JM
Output5 HP (3.7 kW)
Number of Poles6
Frequency60 Hz
Rated speed1170 rpm
Slip2.50 %
Rated voltage230/460 V
Rated current13.7/6.83 A
L. R. Amperes92.9/46.4 A
LRC6.8x(Code J)
No load current6.90/3.45 A
Rated torque22.4 ft.lb
Locked rotor torque170 %
Breakdown torque260 %
Locked rotor time102s (cold) 57s (hot)
Moment of inertia (J)1.47 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?55.0 dB(A)
Approx. weight?178 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.5  89.5

Power factor

50%75%100%
0.58  0.70  0.76
Frame213/5JM
Output5 HP (3.7 kW)
Number of Poles6
Frequency50 Hz
Rated speed960 rpm
Slip4.00 %
Rated voltage380 V
Rated current8.10 A
L. R. Amperes44.5 A
LRC5.5x(Code G)
No load current3.41 A
Rated torque27.4 ft.lb
Locked rotor torque140 %
Breakdown torque200 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)1.47 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?53.0 dB(A)
Approx. weight?178 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  88.5  86.8

Power factor

50%75%100%
0.65  0.76  0.80
Frame213/5JM
Output5 HP (3.7 kW)
Number of Poles6
Frequency50 Hz
Rated speed965 rpm
Slip3.50 %
Rated voltage400 V
Rated current7.82 A
L. R. Amperes47.7 A
LRC6.1x(Code H)
No load current3.68 A
Rated torque27.2 ft.lb
Locked rotor torque160 %
Breakdown torque229 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)1.47 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?53.0 dB(A)
Approx. weight?178 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  88.5  87.5

Power factor

50%75%100%
0.61  0.73  0.78
Frame213/5JM
Output5 HP (3.7 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage415 V
Rated current7.55 A
L. R. Amperes49.1 A
LRC6.5x(Code H)
No load current3.90 A
Rated torque27.1 ft.lb
Locked rotor torque190 %
Breakdown torque250 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)1.47 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?53.0 dB(A)
Approx. weight?178 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  88.5

Power factor

50%75%100%
0.58  0.71  0.77

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Close Coupled Pump
Horsepower
5HP
Enclosure
TEFC
Frame
213JM
Frame
215JM
