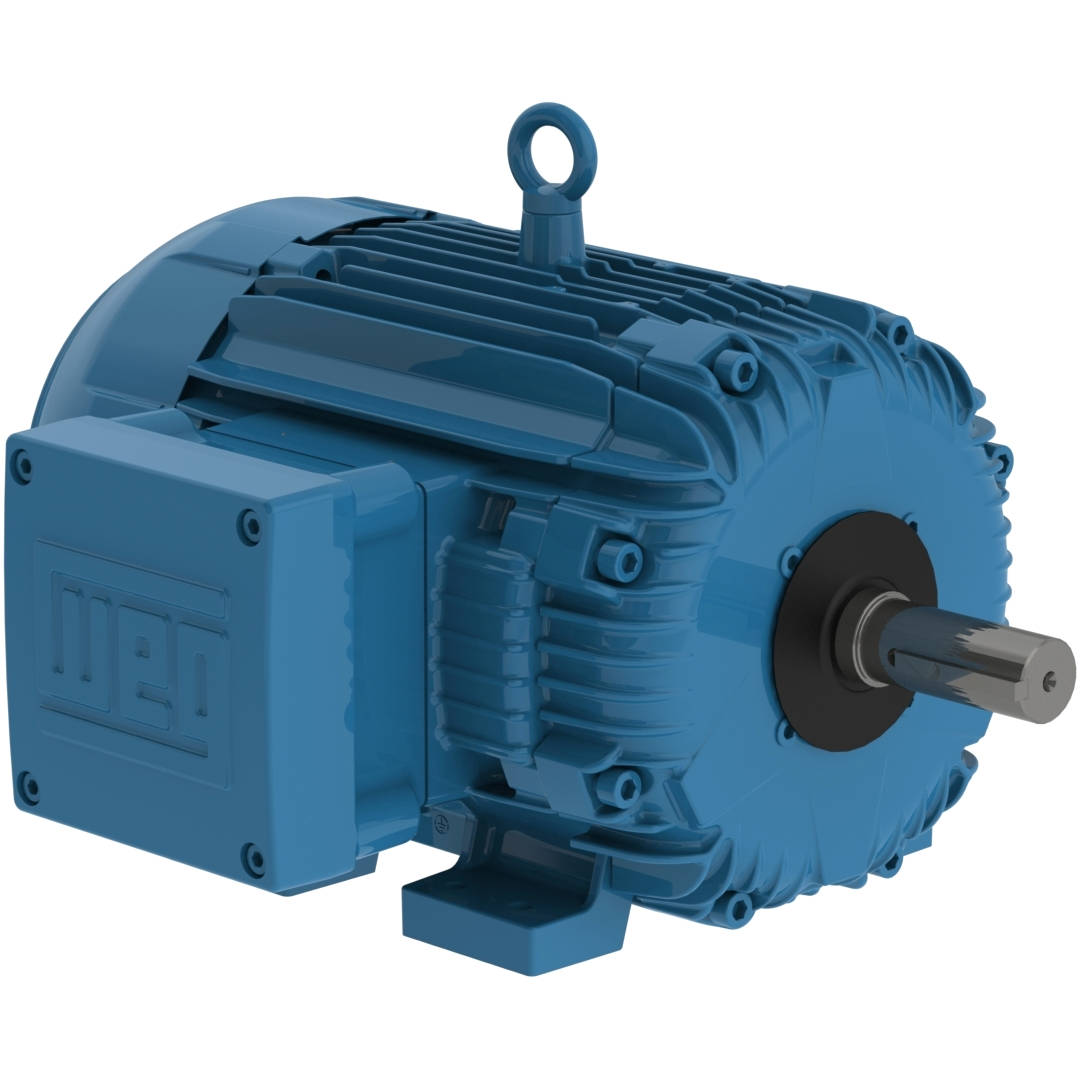

Motor/Control Division

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	575 V
Rated current	5.46 A
L. R. Amperes	37.2 A
LRC	6.8x(Code J)
No load current	2.76 A
Rated torque	22.4 ft.lb
Locked rotor torque	170 %
Breakdown torque	260 %
Locked rotor time	102s (cold) 57s (hot)

Moment of inertia (J)	1.47 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	206 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.58	0.70	0.76

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
Fan material	Plastic
Screw cap	STAINLESS STEEL AISI 316L
NDE bearing Seal	Lip Seal
DE bearing Seal	Oil Seal
Cable Press Material	Sem
