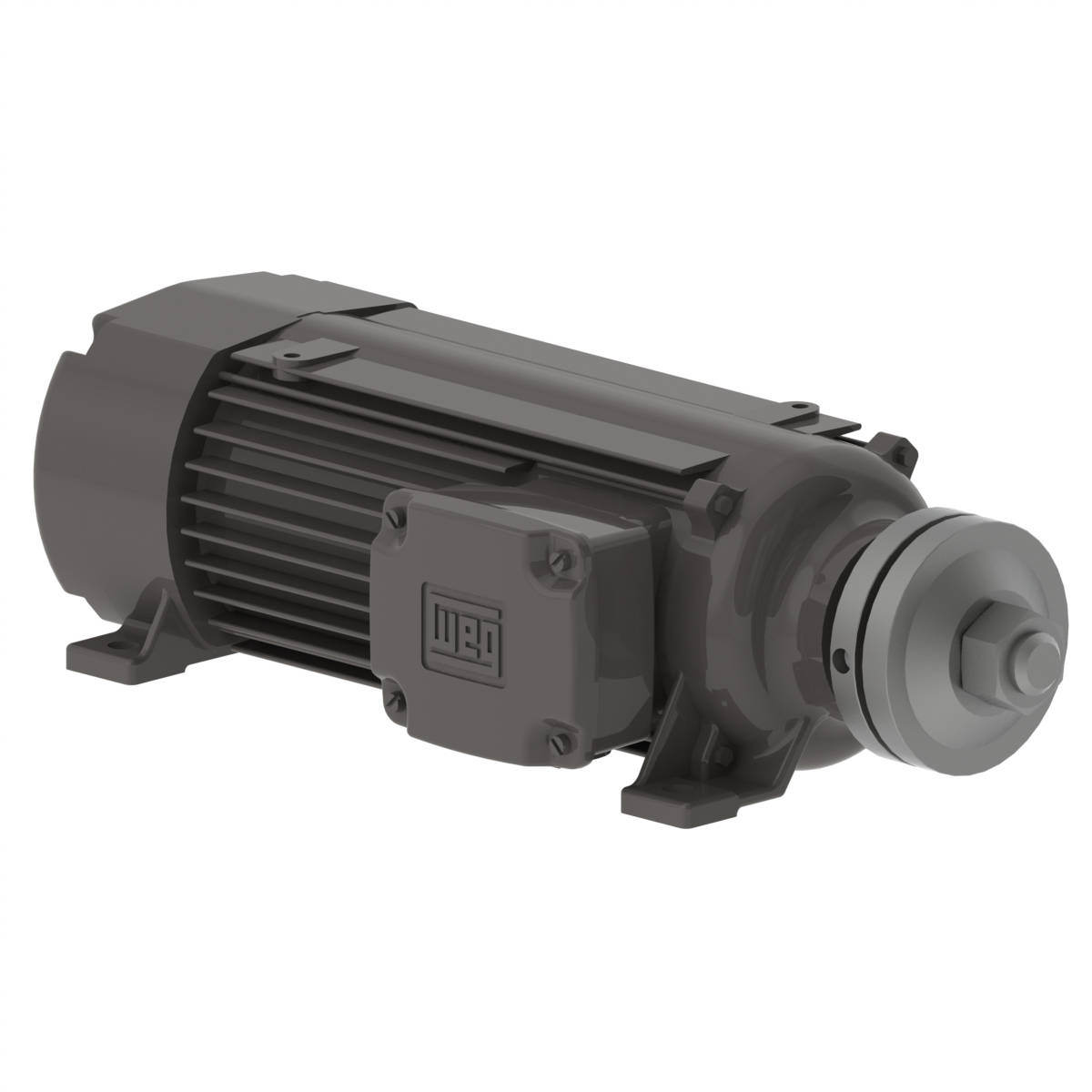

00518ES3ESA90LR WEG 5HP Saw Arbor Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518ES3ESA90LR

00518ES3ESA90LR WEG 5HP Saw Arbor Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ES3ESA90LR

Selected accessories will also be added to cart
$1,513.89 / Each
Quantity:
IC411 - TEFC, IP54, 90L/MS Frame, 208-230/460VAC 60Hz 3 Phase, 11150594, Standard Efficiency, M30x3.5mm RH Thread

Electric Motors

Frame90L/MS
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1740 rpm
Slip3.33 %
Rated voltage208-230/460 V
Rated current15.5-14.1/7.03 A
L. R. Amperes124-112/56.2 A
LRC8.0
No load current8.88-8.03/4.02 A
Rated torque15.1 ft.lb
Locked rotor torque380 %
Breakdown torque409 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.2660 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP54
EnclosureIC411 - TEFC
MountingB3R(D)
Rotation?CCW
Noise level?51.0 dB(A)
Approx. weight?152 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.0  84.0  84.5

Power factor

50%75%100%
0.58  0.71  0.78

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeRWG(Rp) 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ  6208 ZZ
SealingWithout Bearing Seal Without Bearing Seal
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
395 lb 547 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
90L/MS
