/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, FF-Face, W22/00518ET3YAL132SFF-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 1800RPM

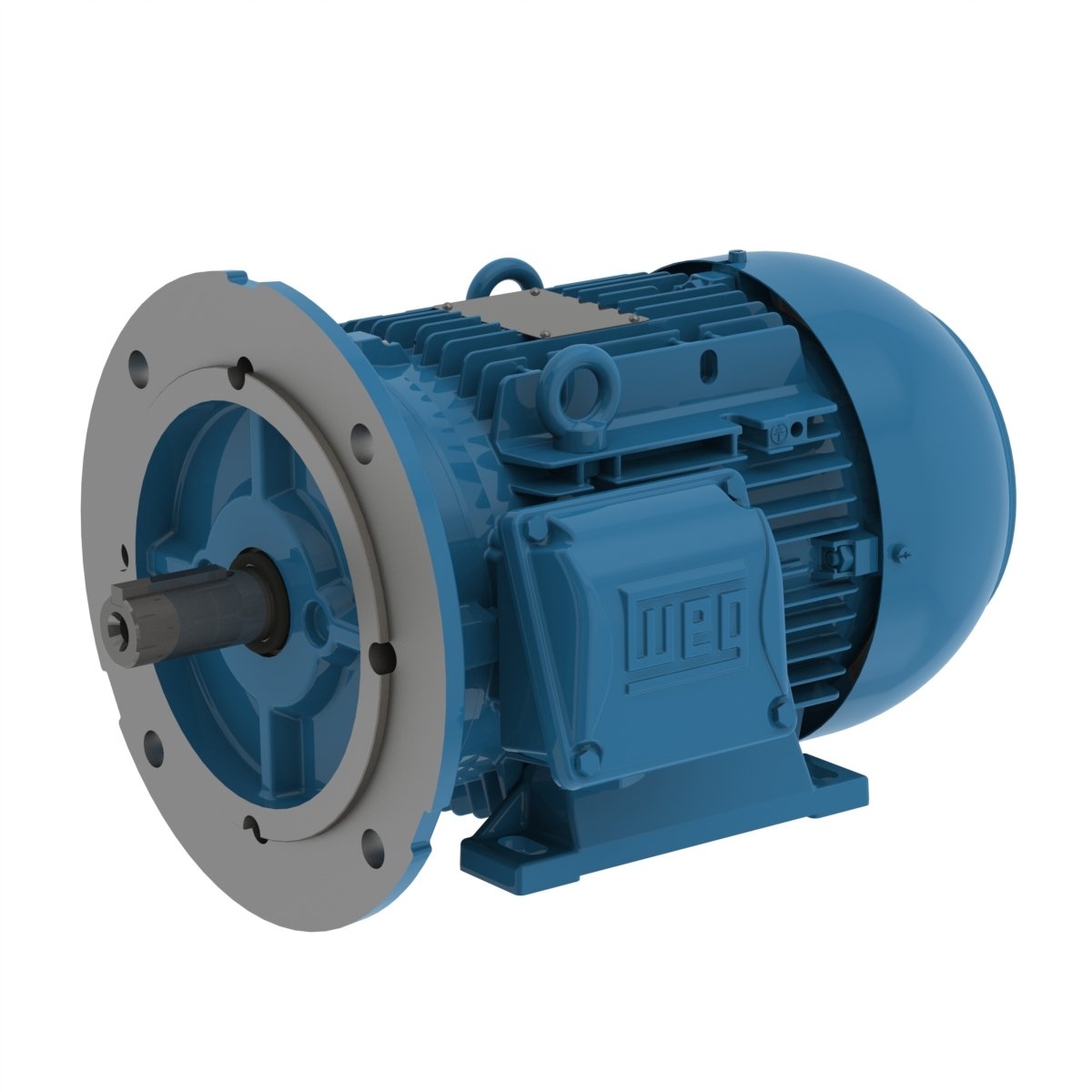

00518ET3YAL132SFF-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518ET3YAL132SFF-W2

00518ET3YAL132SFF-W22 WEG 7.5HP/5.5kW IEC TRU-Metric Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3YAL132SFF-W22

Selected accessories will also be added to cart
$758.25 / Each
Quantity:
IC411-TEFC, IP55, 132S Frame, 460/380-415VAC 3-Phase 50/60Hz, 14052128, Foot Mount, FF-Flange, Aluminum Frame, 38mm Keyed Shaft

Electric Motors

Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 10.6 A
L. R. Amperes 102 A
LRC 9.6
No load current 4.40 A
Rated torque 26.6 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 144 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.4  90.7  90.3

Power factor

50% 75% 100%
0.71  0.82  0.87
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 10.3 A
L. R. Amperes 98.9 A
LRC 9.6
No load current 4.70 A
Rated torque 26.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 144 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.0  90.7  90.7

Power factor

50% 75% 100%
0.67  0.79  0.85
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.2 A
L. R. Amperes 97.9 A
LRC 9.6
No load current 5.10 A
Rated torque 26.4 ft.lb
Locked rotor torque 260 %
Breakdown torque 370 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 144 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.6  90.7  90.8

Power factor

50% 75% 100%
0.64  0.76  0.83
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 9.07 A
L. R. Amperes 94.3 A
LRC 10.4
No load current 4.43 A
Rated torque 21.9 ft.lb
Locked rotor torque 260 %
Breakdown torque 430 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 144 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  91.0  91.7

Power factor

50% 75% 100%
0.65  0.77  0.83

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
