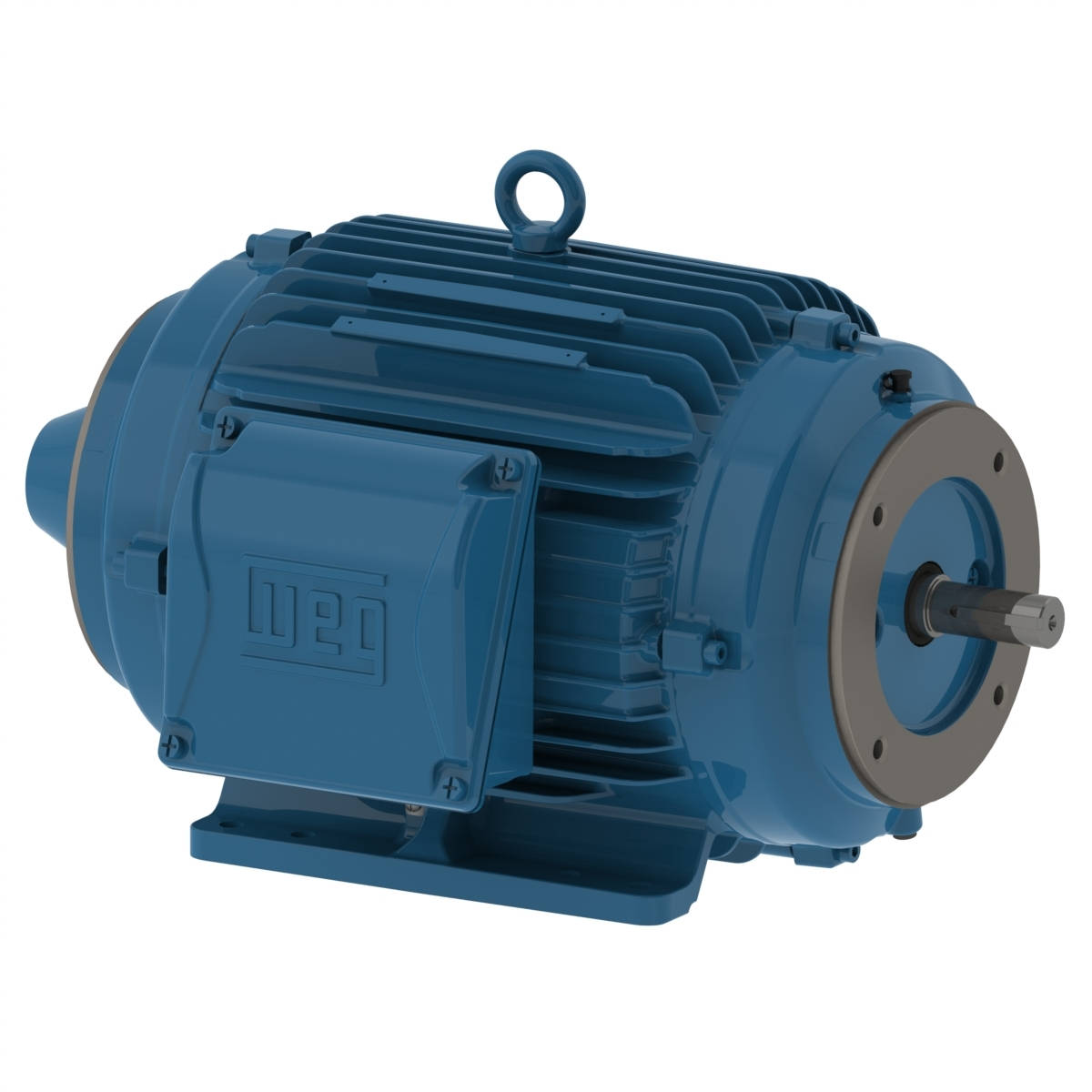

00518NT3FVD184TC-W22 WEG 5HP Vector Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518NT3FVD184TC-W22

00518NT3FVD184TC-W22 WEG 5HP Vector Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518NT3FVD184TC-W22

Selected accessories will also be added to cart
$1,221.97 / Each
Quantity:
IC410 - TENV, IP55, 182TCZ/184TCZ Frame, 230/460VAC 60Hz 3 Phase, 12678202, NEMA Premium Efficiency, Foot Mounted, Double C-Face, Cast Iron Frame, 1-1/8" & 5/8" Keyed Shafts

Electric Motors

Frame182/4TCZ
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current14.2/7.11 A
L. R. Amperes135/67.5 A
LRC9.5x(Code M)
No load current8.60/4.30 A
Rated torque14.9 ft.lb
Locked rotor torque290 %
Breakdown torque450 %
Locked rotor time55s (cold) 31s (hot)
DesignA
Insulation ClassH
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodVFD
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TENV
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?110 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  89.5  89.5

Power factor

50%75%100%
0.51  0.64  0.73

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing MethodWithout Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
5HP
Enclosure
TENV
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182TC
