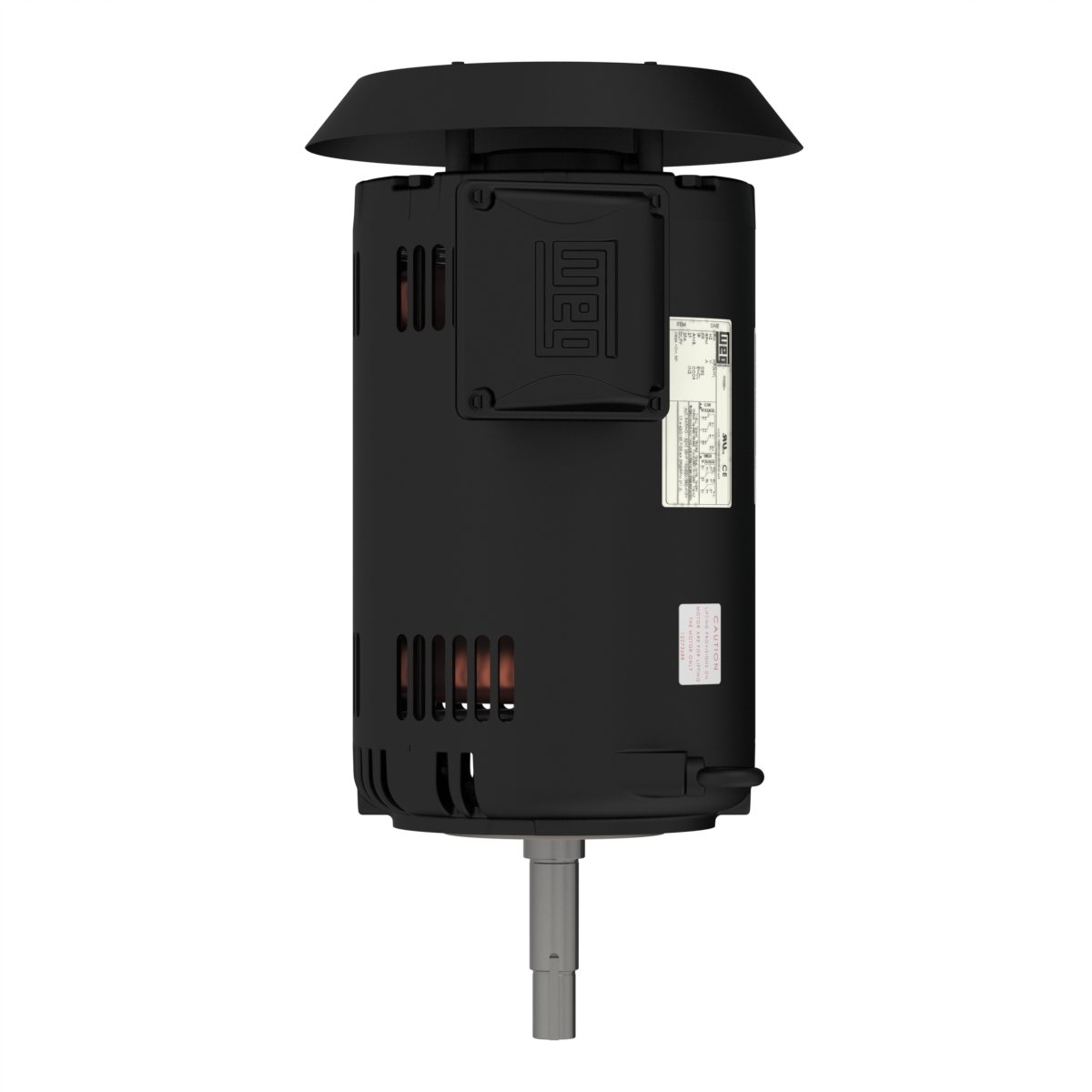

Motor/Control Division

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	14.0-12.7/6.33 A
L. R. Amperes	101-91.2/45.6 A
LRC	7.2x(Code J)
No load current	5.43-6.29/3.15 A
Rated torque	14.7 ft.lb
Locked rotor torque	200 %
Breakdown torque	310 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	87.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	88.5	89.5

Power factor

50%	75%	100%
0.63	0.76	0.82

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	190/380 V
Rated current	15.4/7.71 A
L. R. Amperes	89.4/44.7 A
LRC	5.8x(Code G)
No load current	6.19/3.10 A
Rated torque	17.9 ft.lb
Locked rotor torque	140 %
Breakdown torque	220 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	87.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.2	87.3	84.8

Power factor

50%	75%	100%
0.71	0.82	0.86

Frame	182/4JM
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	13.5/7.18 A
L. R. Amperes	94.8/50.3 A
LRC	7.0x(Code J)
No load current	6.80/3.61 A
Rated torque	17.8 ft.lb
Locked rotor torque	180 %
Breakdown torque	270 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.4003 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	87.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.7	86.4

Power factor

50%	75%	100%
0.64	0.76	0.83

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
