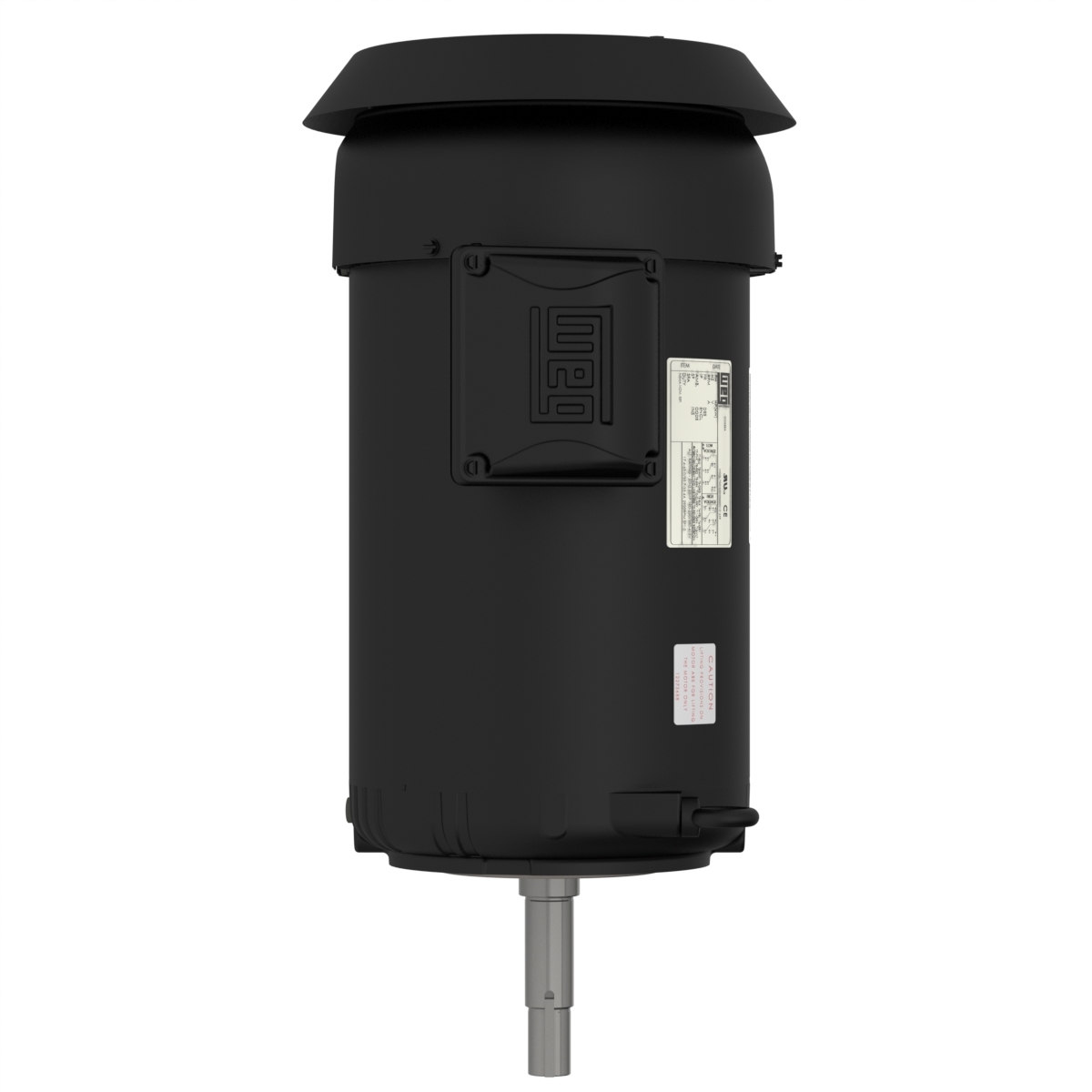

00518ET3E184JMV-S WEG 5HP JM Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

00518ET3E184JMV-S WEG 5HP JM Close Coupled Pump Electric Motor, 1800RPM

Product ID: 00518ET3E184JMV-S

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3E184JMV-S

Selected accessories will also be added to cart
$1,067.11 / Each
Quantity:
IC411 - TEFC, IP55, 182JM/184JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13443847, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage208-230/460 V
Rated current14.4-13.0/6.49 A
L. R. Amperes100-90.9/45.4 A
LRC7.0x(Code J)
No load current5.94-6.89/3.44 A
Rated torque14.8 ft.lb
Locked rotor torque220 %
Breakdown torque300 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.3080 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?83.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.5  89.5

Power factor

50%75%100%
0.60  0.73  0.80
Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1425 rpm
Slip5.00 %
Rated voltage190/380 V
Rated current15.8/7.88 A
L. R. Amperes91.4/45.7 A
LRC5.8x(Code G)
No load current6.74/3.37 A
Rated torque18.2 ft.lb
Locked rotor torque170 %
Breakdown torque229 %
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.3080 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?53.0 dB(A)
Approx. weight?83.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.9  87.2  84.9

Power factor

50%75%100%
0.68  0.80  0.84
Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage220/415 V
Rated current14.1/7.47 A
L. R. Amperes95.8/50.8 A
LRC6.8x(Code J)
No load current7.85/4.16 A
Rated torque18.0 ft.lb
Locked rotor torque220 %
Breakdown torque290 %
Locked rotor time0s (cold) 0s (hot)
Moment of inertia (J)0.3080 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?53.0 dB(A)
Approx. weight?83.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.2  86.1

Power factor

50%75%100%
0.59  0.73  0.80

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Close Coupled Pump
Horsepower
5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182JM
Frame
184JM
