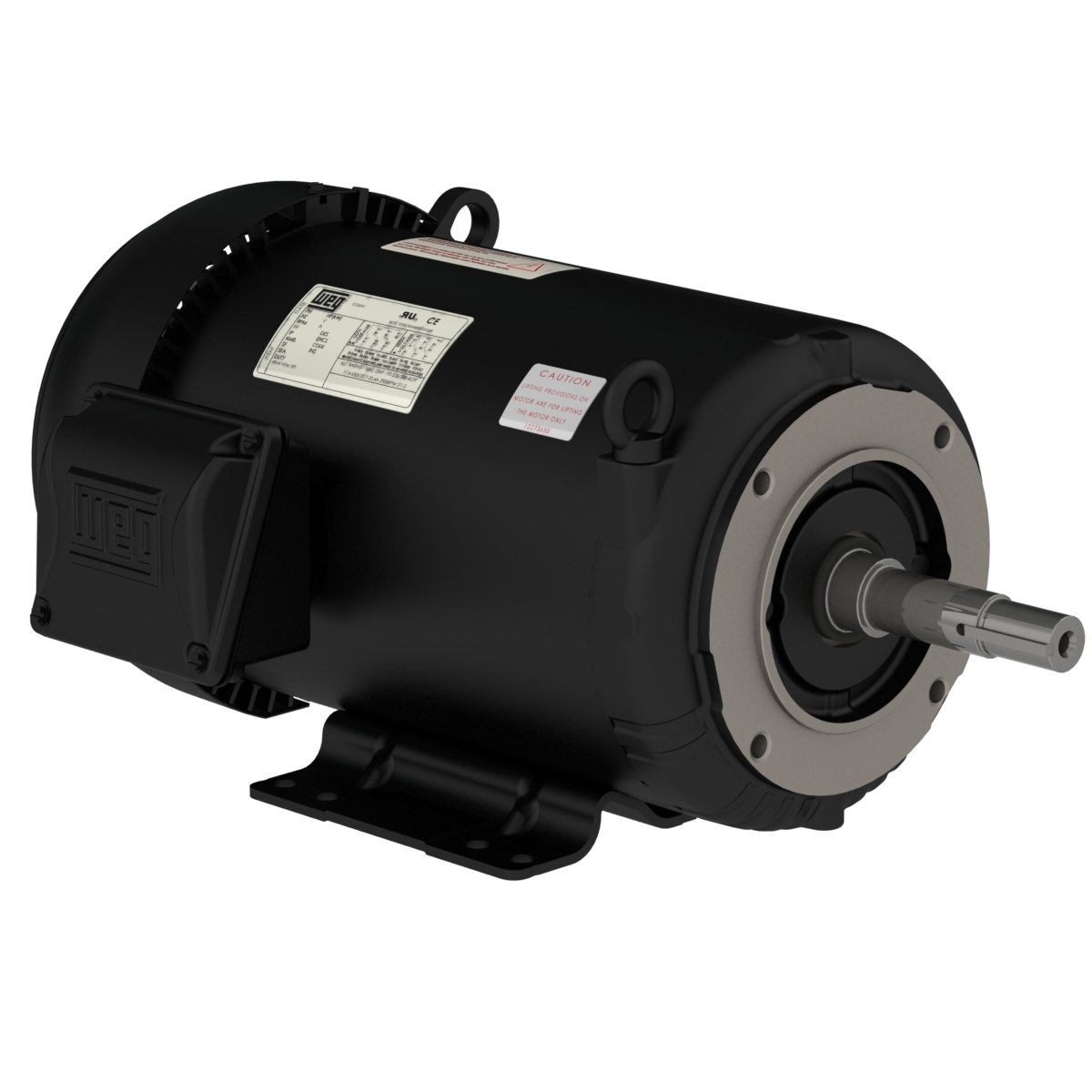

00536ET3H184JM-S WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536ET3H184JM-S

00536ET3H184JM-S WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536ET3H184JM-S

Selected accessories will also be added to cart
$956.75 / Each
Quantity:
IC411 - TEFC, IP55, 182JM/184JM Frame, 575VAC 3-Phase 60Hz, 14218463, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage575 V
Rated current4.72 A
L. R. Amperes36.8 A
LRC7.8x(Code J)
No load current1.76 A
Rated torque7.40 ft.lb
Locked rotor torque220 %
Breakdown torque300 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)0.2079 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?89.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  88.5

Power factor

50%75%100%
0.76  0.85  0.89

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
5HP
Enclosure
TEFC
Frame
182JM
Frame
184JM
