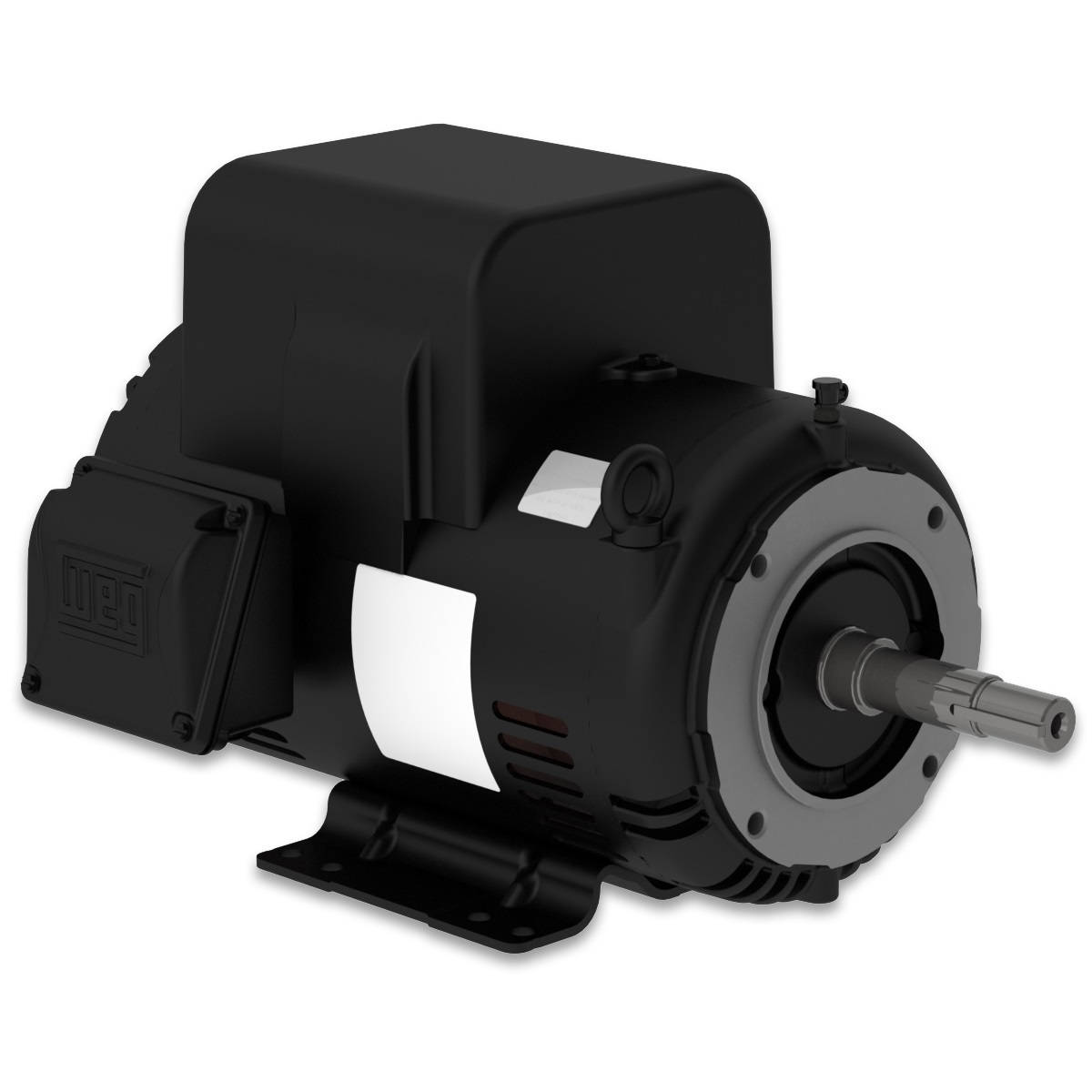

00536OS1B184JM-S WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536OS1B184JM-S

00536OS1B184JM-S WEG 5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OS1B184JM-S

Temporarily out of stock
Selected accessories will also be added to cart
$1,230.87 / Each
Quantity:
IC01 - ODP, 182JM/184JM Frame, 115/208-230VAC 60Hz Single Phase, 15194884, Rolled Steel Frame, Foot Mounted

Electric Motors

Frame182/4JM
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current39.5/22.0-19.7 A
L. R. Amperes265/147-132 A
LRC6.7x(Code G)
No load current10.4/3.00-5.20 A
Rated torque7.50 ft.lb
Locked rotor torque175 %
Breakdown torque250 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)0.1566 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³81.6 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.281.884.0

Power factor

50%75%100%
0.920.960.97

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
182JM
Frame
184JM
