/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Compressor Duty/00536OS1CCD182/4Y WEG 5HP Compressor Duty Electric Motor, 3600RPM

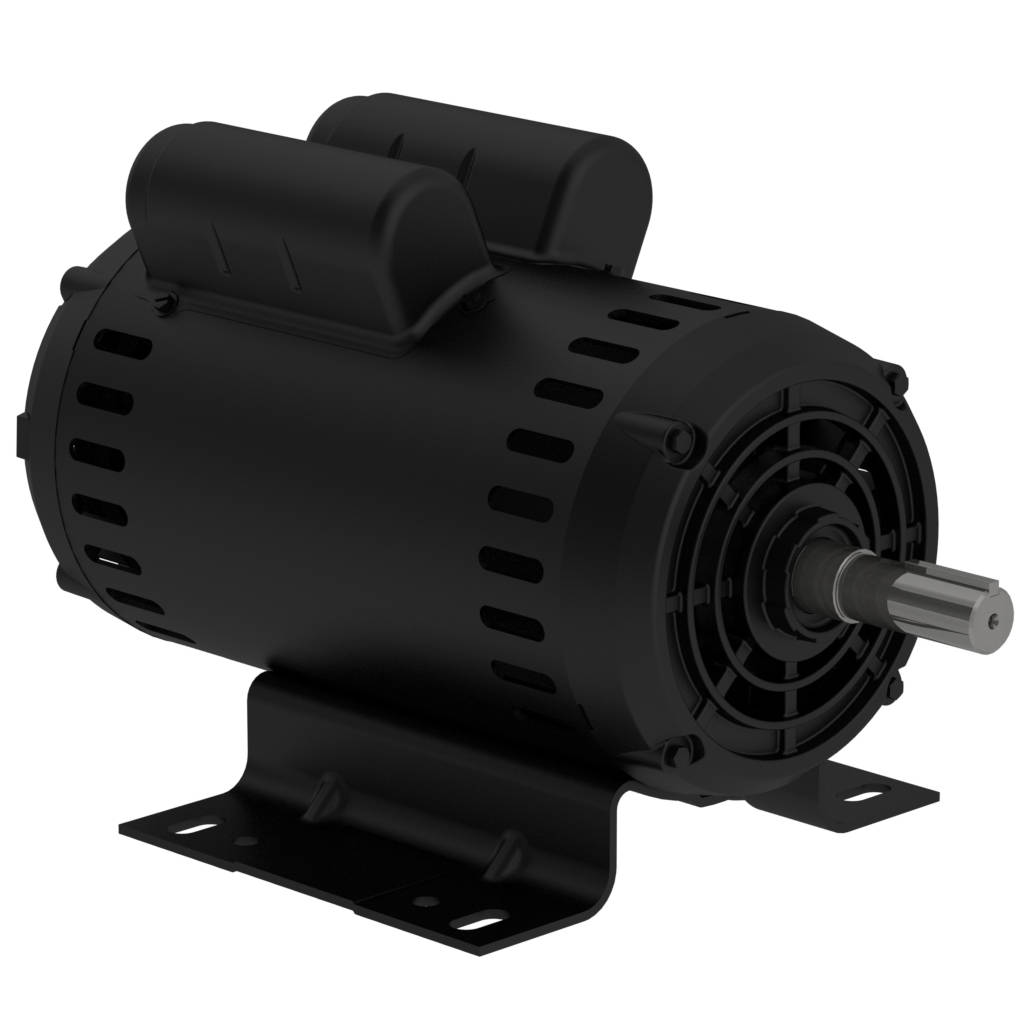

00536OS1CCD182/4Y WEG 5HP Compressor Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536OS1CCD182/4Y

00536OS1CCD182/4Y WEG 5HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OS1CCD182/4Y

Selected accessories will also be added to cart
$468.14 / Each
Quantity:
IC01 - ODP, IP21, 182Y/184Y Frame, 208-230VAC 60Hs Single Phase, 13516819, Rolled Steel, Foot Mounted, 7/8" Keyed Shaft

Electric Motors

Frame182/4Y
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3455 rpm
Slip4.03 %
Rated voltage208-230 V
Rated current21.0-19.1 A
L. R. Amperes137-124 A
LRC6.5x(Code G)
No load current0.000-3.70 A
Rated torque7.60 ft.lb
Locked rotor torque220 %
Breakdown torque200 %
Locked rotor time10s (cold) 6s (hot)
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCOMPRESSOR DUTY
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Approx. weight³49.2 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
83.085.085.0

Power factor

50%75%100%
0.990.990.99

Features

Frame MaterialRolled Steel
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Manual
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
5HP
Frame
184Y
Frame
182Y
Input Voltage
208VAC
Input Voltage
230VAC
