/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Compressor Duty/00536OS1CCDW184Y-S WEG 5HP Compressor Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00536OS1CCDW184Y-S

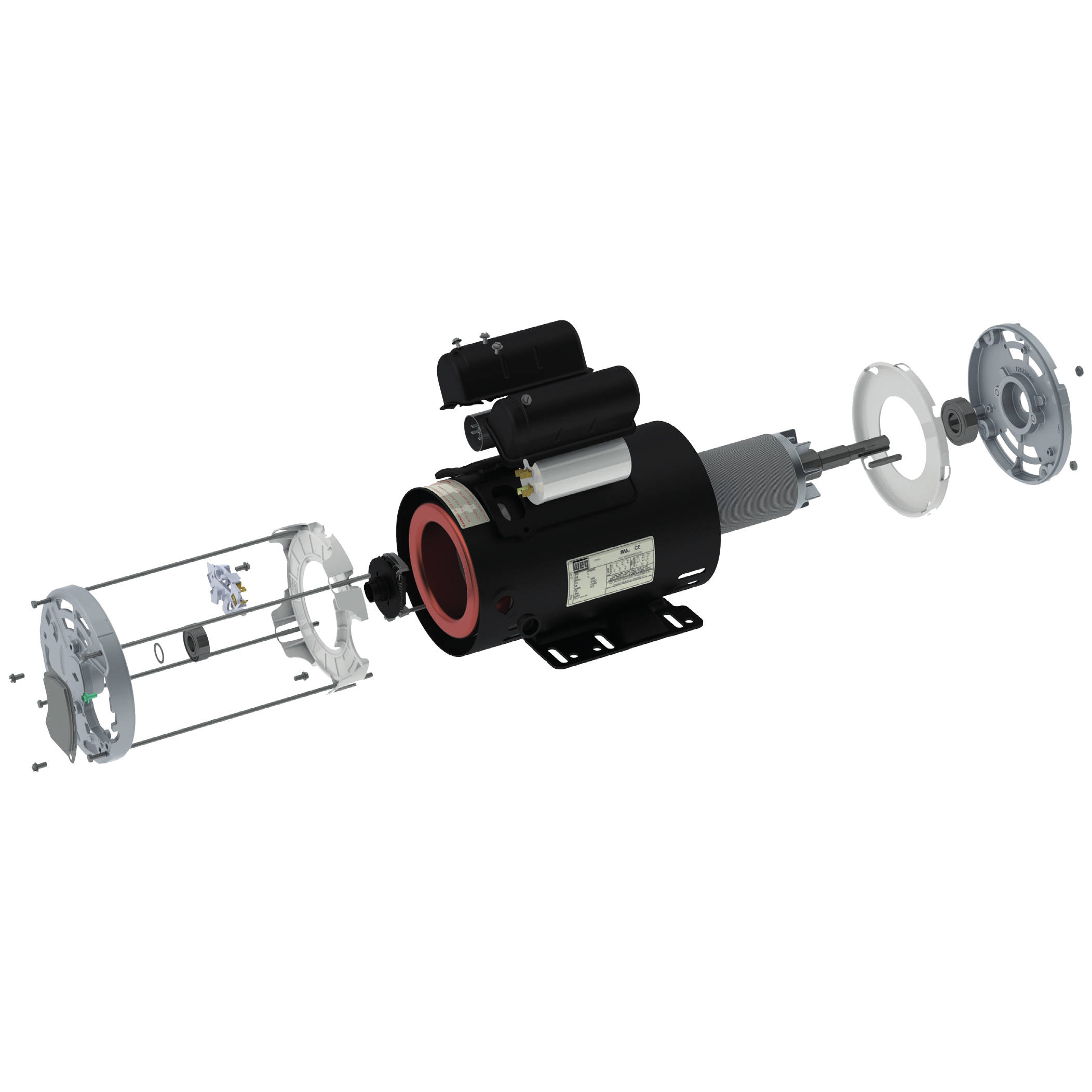

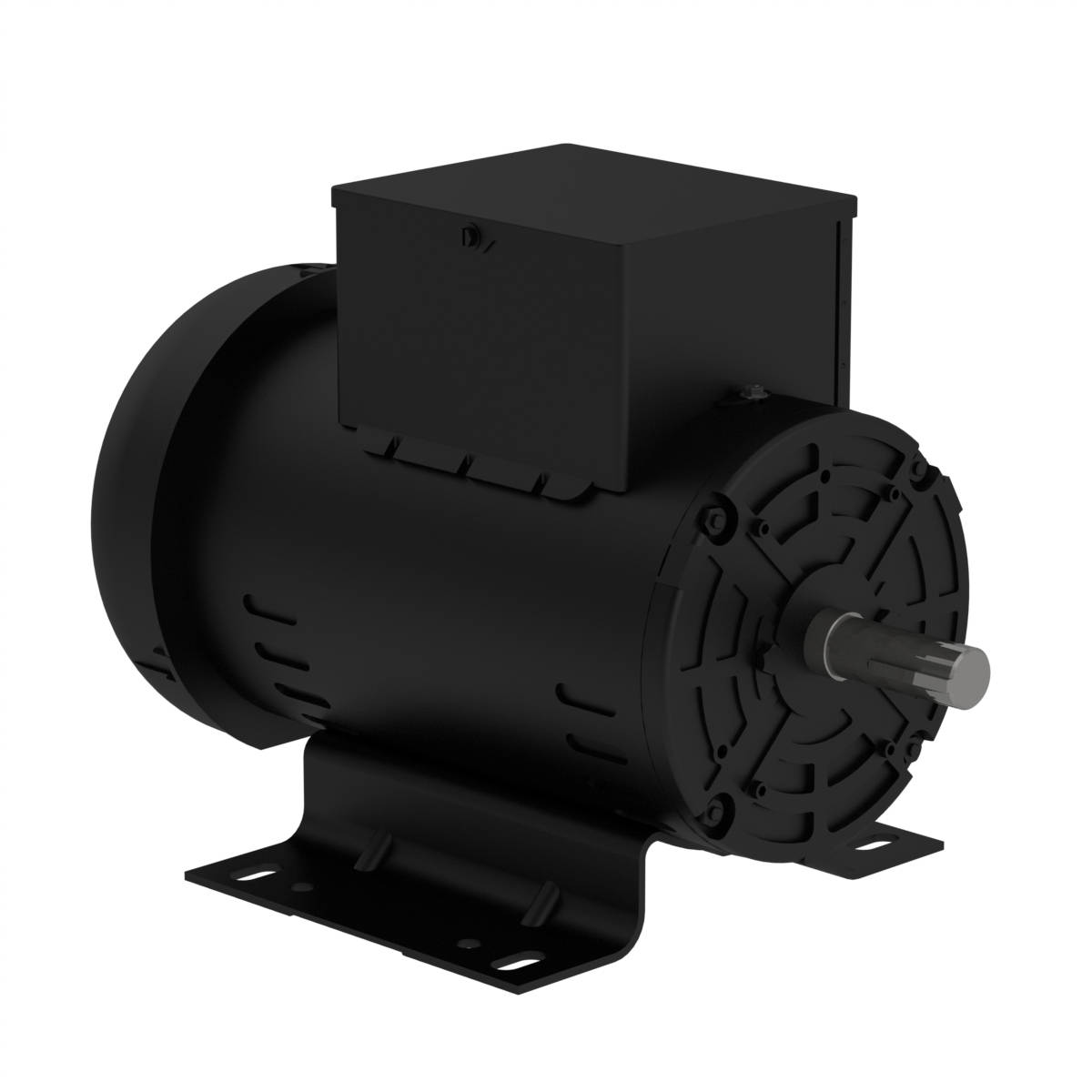

00536OS1CCDW184Y-S WEG 5HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OS1CCDW184Y-S

Selected accessories will also be added to cart
$468.14 / Each
Quantity:
IC01-ODP, W182Y/W184Y Frame, 208-230VAC Single Phase 60Hz, 14201573, Foot Mounted, Rolled Steel, 7/8" Keyed Shaft

Electric Motors

FrameW182/4Y
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3465 rpm
Slip3.75 %
Rated voltage208-230 V
Rated current22.4-20.7 A
L. R. Amperes139-128 A
LRC6.2x(Code G)
No load current6.95-6.25 A
Rated torque7.48 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
DesignL
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-3
Rotation¹CCW
Approx. weight³53.4 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.679.580.0

Power factor

50%75%100%
0.920.960.97

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
Painting
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ 6203 ZZ
SealingWithout Bearing SealWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
92 lb146 lb
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
5HP
Frame
W182Y/W184Y
Input Voltage
208VAC
Input Voltage
230VAC
