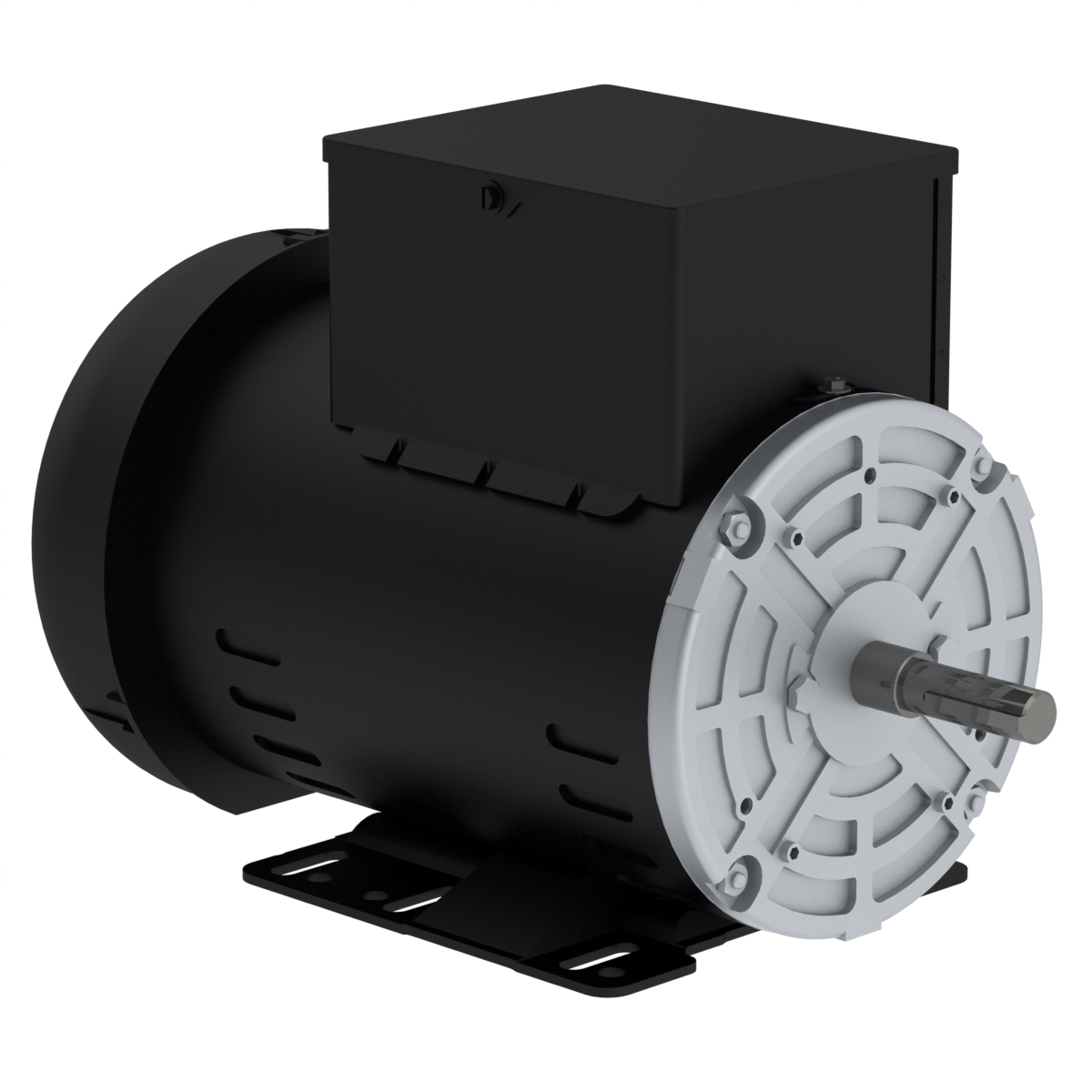

00536OS1DCD56HZ-S WEG 5HP Compressor Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536OS1DCD56HZ-S

00536OS1DCD56HZ-S WEG 5HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OS1DCD56HZ-S

Selected accessories will also be added to cart
$428.09 / Each
Quantity:
56HZ Frame, 230V Single Phase 60Hz,13521268, Rolled Steel, Foot Mounted, 7/8" Keyed Shaft

Electric Motors

Frame56HZ
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3440 rpm
Slip4.44 %
Rated voltage230 V
Rated current20.3 A
L. R. Amperes122 A
LRC6.0x(Code G)
No load current4.20 A
Rated torque7.53 ft.lb
Locked rotor torque240 %
Breakdown torque200 %
Locked rotor time7s (cold) 4s (hot)
Moment of inertia (J)0.0864 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
MountingF-3
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³49.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.679.580.0

Power factor

50%75%100%
0.980.980.99

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ 6203 ZZ
SealingSem vedaçãoWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
123 lb173 lb

 Loading...

Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
5HP
Frame
56HZ
