00536OT3V182JP-S WEG 5HP JP Close Coupled Pump Electric Motor, 3600RPM

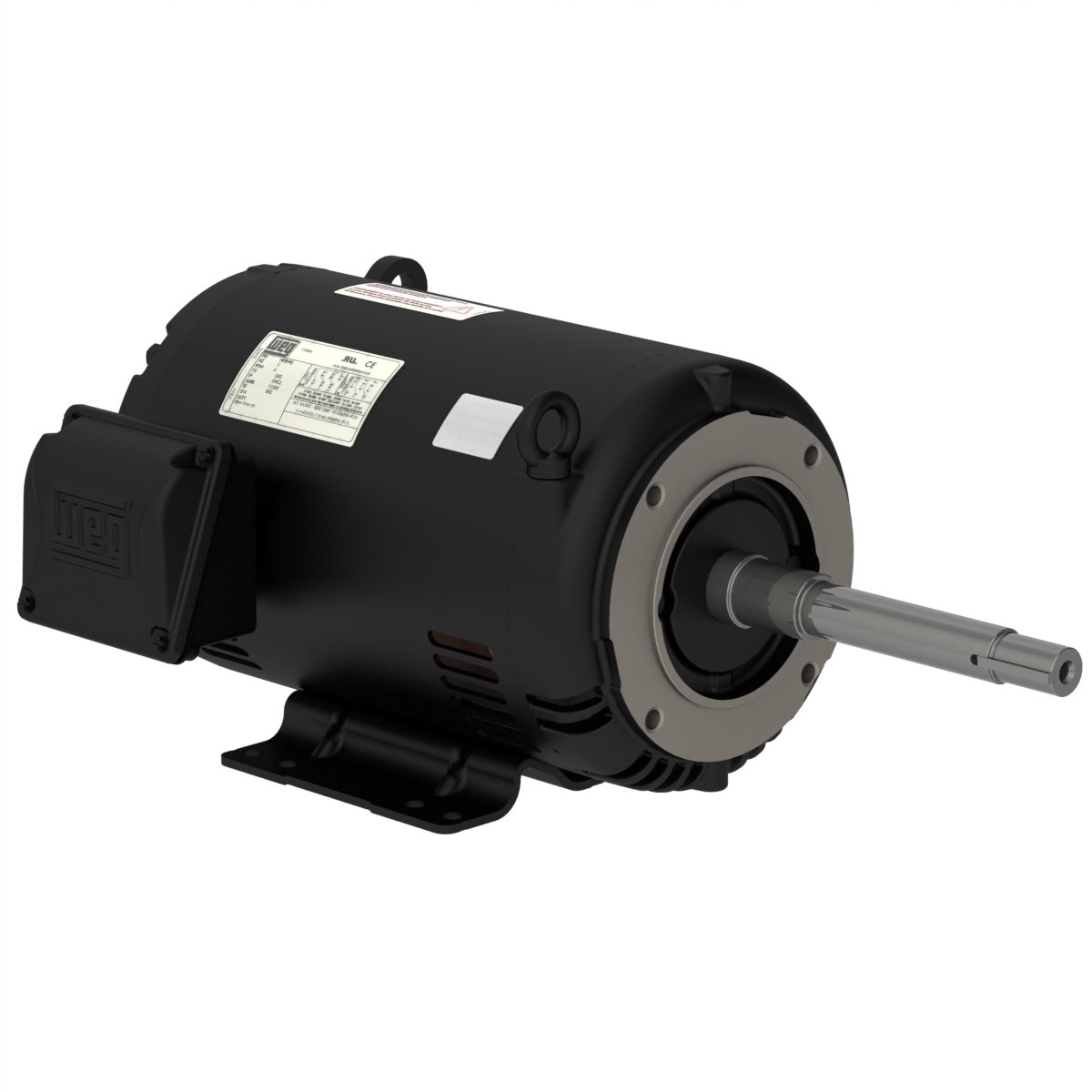

Enlarge Photo

Product ID: 00536OT3V182JP-S

00536OT3V182JP-S WEG 5HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536OT3V182JP-S

Selected accessories will also be added to cart
$704.88 / Each
Quantity:
IC01 - ODP, 182JP/184JP Frame, 200/400VAC 3-Phase 60Hz, 13503344, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame182/4JP
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage200/400 V
Rated current14.0/7.01 A
L. R. Amperes107/53.3 A
LRC7.6x(Code J)
No load current5.93/2.96 A
Rated torque7.38 ft.lb
Locked rotor torque190 %
Breakdown torque300 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.1386 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?65.0 dB(A)
Approx. weight?58.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.73  0.83  0.88

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
5HP
Enclosure
ODP
Frame
182JP
Frame
184JP
Input Voltage
200VAC
Input Voltage
400VAC
