Motor/Control Division

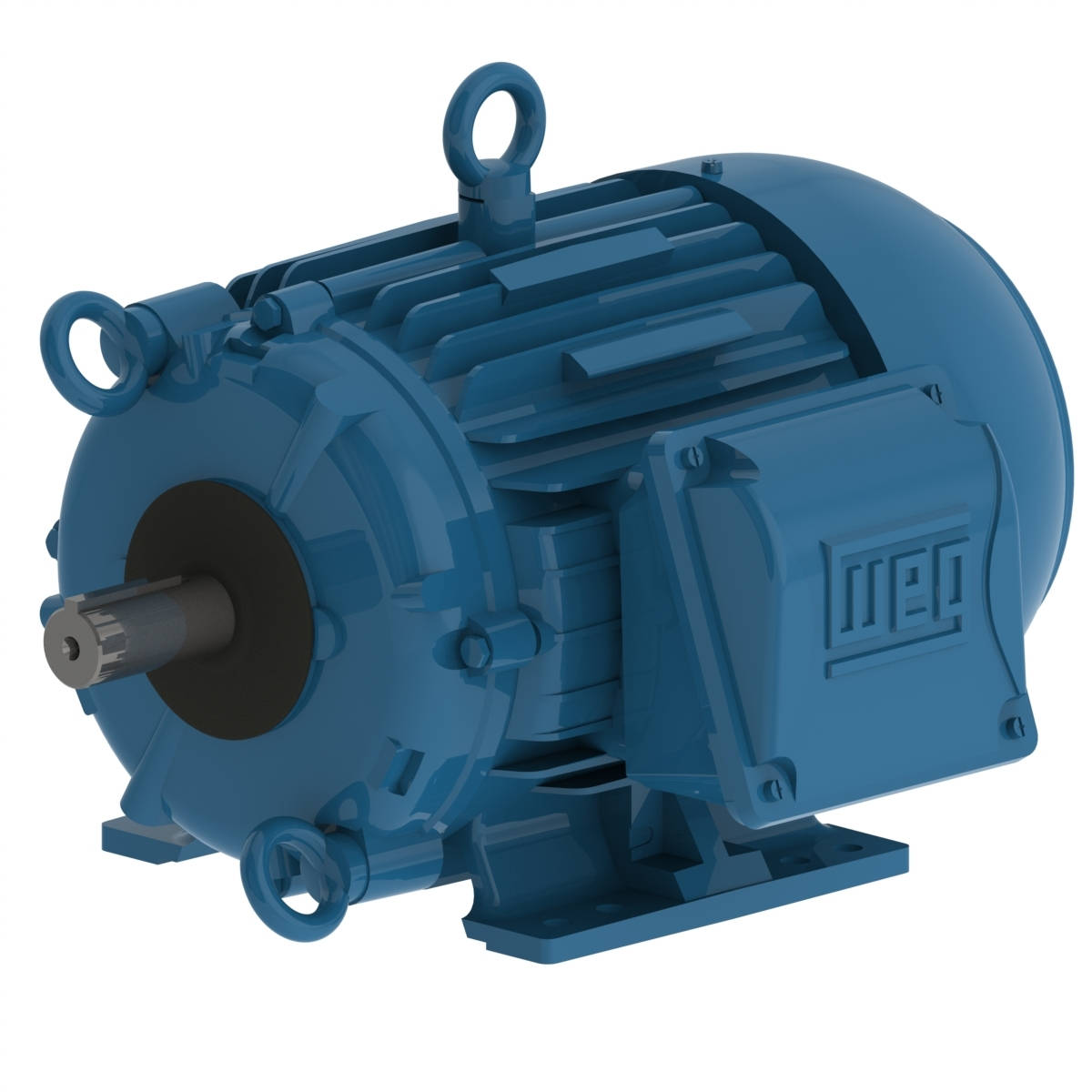

Frame	213/5T
Output	5 HP (3.7 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	1780 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	6.55 A
L. R. Amperes	64.8 A
LRC	9.9x(Code M)
No load current	3.90 A
Rated torque	14.8 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	1.56 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	61.0 dB(A)
Approx. weight?	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	88.5

Power factor

50%	75%	100%
0.61	0.72	0.80

Frame	213/5T
Output	1.25 HP (0.92 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	890 rpm
Slip	1.11 %
Rated voltage	460 V
Rated current	3.13 A
L. R. Amperes	14.1 A
LRC	4.5x(Code K)
No load current	3.00 A
Rated torque	7.38 ft.lb
Locked rotor torque	180 %
Breakdown torque	270 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	1.56 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	52.0 dB(A)
Approx. weight?	180 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
68.0	74.0	77.0

Power factor

50%	75%	100%
0.30	0.39	0.48

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
