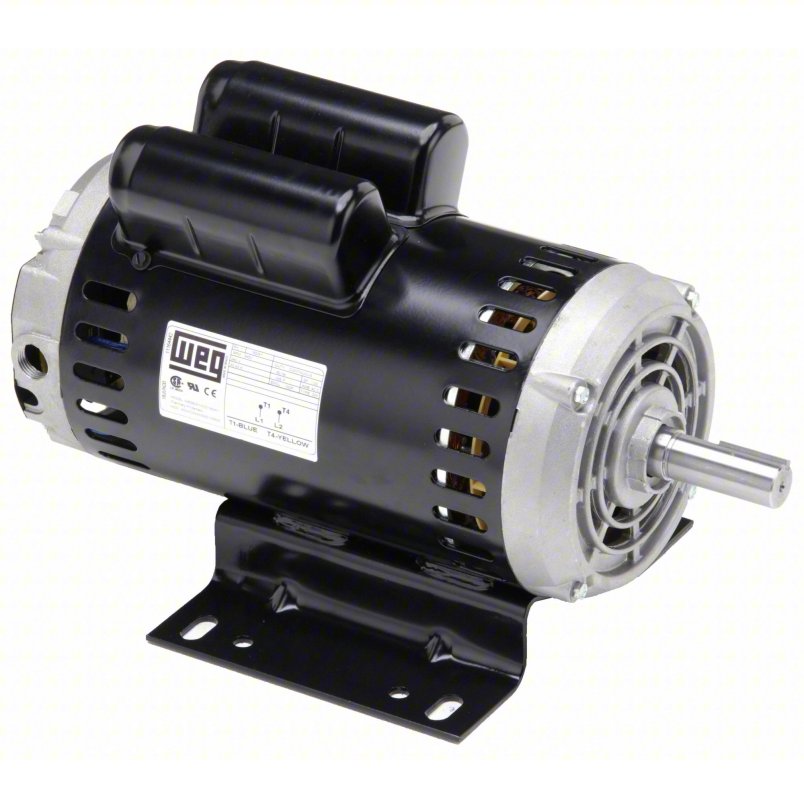

00636OS1XCD182/4Y WEG 6.4HP Compressor Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00636OS1XCD182/4Y

00636OS1XCD182/4Y WEG 6.4HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00636OS1XCD182/4Y

Available Stock: 1
Selected accessories will also be added to cart
$468.14 / Each
Quantity:
IC01 - ODP, IP21, 182/184 Frame, 240VAC 60Hz Single Phase, 11164442, Ingersol Rand Replacement, High Base, Rolled Steel, 7/8" Keyed Shaft

Electric Motors

Frame182/4
Output6.4 HP (4.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3450 rpm
Slip4.17 %
Rated voltage240 V
Rated current23.0 A
L. R. Amperes129 A
LRC5.6x(Code E)
No load current5.08 A
Rated torque9.74 ft.lb
Locked rotor torque190 %
Breakdown torque200 %
Locked rotor time14s (cold) 8s (hot)
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Approx. weight³49.6 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
79.083.082.0

Power factor

50%75%100%
0.950.970.98

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Manual
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
6.4HP
Frame
182
Frame
184
