/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount, C-Face/00709ET3E256TC-W22 WEG 7.5HP Severe Duty Electric Motor, 900RPM

Product ID: 00709ET3E256TC-W22

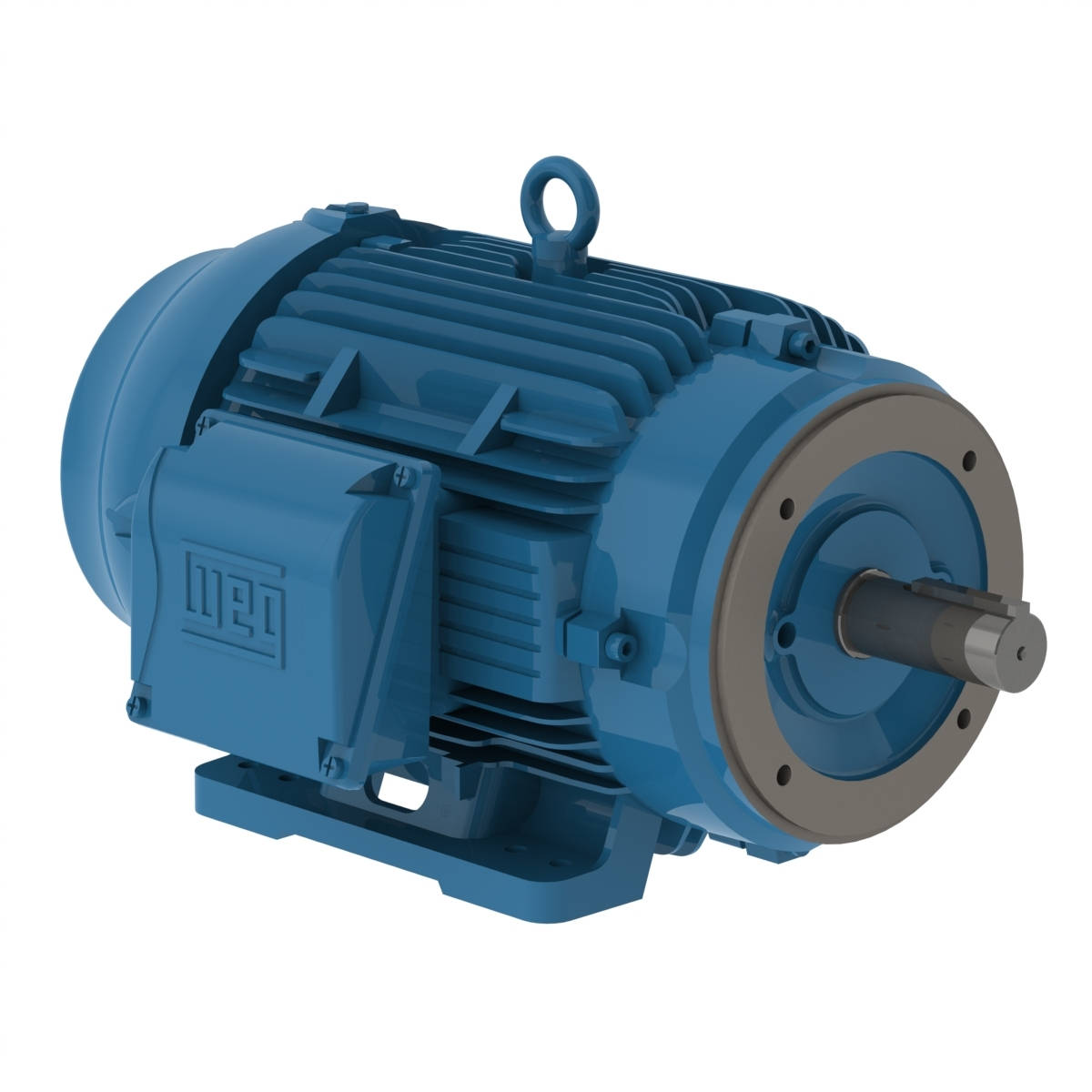

00709ET3E256TC-W22 WEG 7.5HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00709ET3E256TC-W22

Selected accessories will also be added to cart

$3,316.14 / Each

Quantity:

IC411 - TEFC, IP55, 254TC/256TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 13025620, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	22.2/11.1 A
L. R. Amperes	118/58.8 A
LRC	5.3x(Code G)
No load current	13.0/6.50 A
Rated torque	44.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	87.5

Power factor

50%	75%	100%
0.50	0.63	0.71

Frame	254/6TC
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	10.4 A
L. R. Amperes	56.1 A
LRC	5.4x(Code H)
No load current	6.40 A
Rated torque	39.6 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.1	85.7	85.5

Power factor

50%	75%	100%
0.47	0.60	0.69

Frame	254/6TC
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	10.5 A
L. R. Amperes	58.7 A
LRC	5.6x(Code J)
No load current	6.90 A
Rated torque	39.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.6	84.5	85.5

Power factor

50%	75%	100%
0.44	0.56	0.65

Frame	254/6TC
Output	5.5 HP (4 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	735 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	10.4 A
L. R. Amperes	62.5 A
LRC	6.0x(Code K)
No load current	7.30 A
Rated torque	39.3 ft.lb
Locked rotor torque	260 %
Breakdown torque	320 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.4	84.5	85.5

Power factor

50%	75%	100%
0.42	0.54	0.63

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	13.1 A
L. R. Amperes	56.3 A
LRC	4.3x(Code E)
No load current	6.40 A
Rated torque	54.7 ft.lb
Locked rotor torque	150 %
Breakdown torque	190 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	85.5	84.0

Power factor

50%	75%	100%
0.57	0.69	0.76

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	12.5 A
L. R. Amperes	58.7 A
LRC	4.7x(Code F)
No load current	6.90 A
Rated torque	54.3 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	85.5

Power factor

50%	75%	100%
0.53	0.66	0.74

Frame	254/6TC
Output	7.5 HP (5.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	12.4 A
L. R. Amperes	62.0 A
LRC	5.0x(Code G)
No load current	7.30 A
Rated torque	54.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	4.43 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	297 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	85.5

Power factor

50%	75%	100%
0.51	0.64	0.72

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
