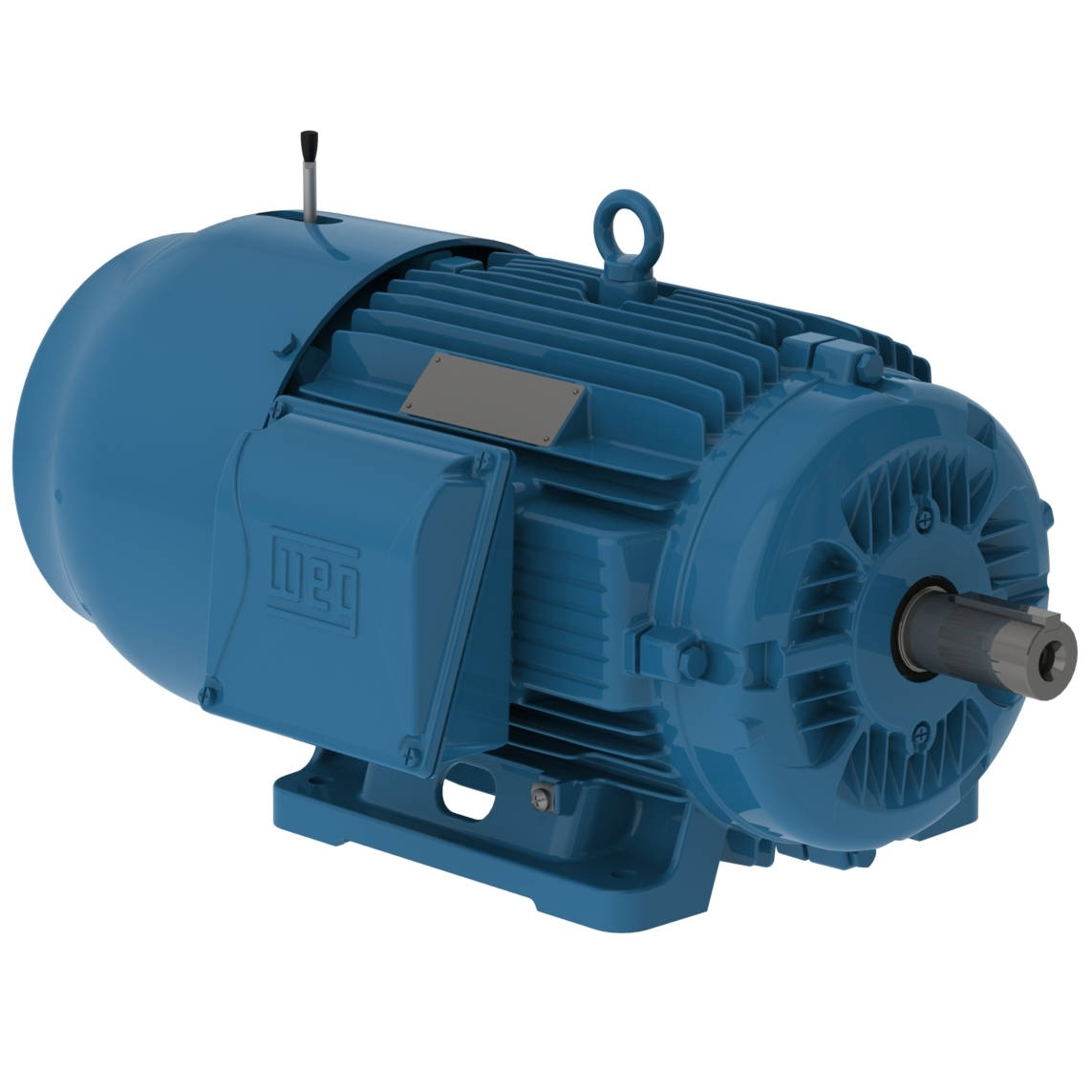

00709ET3EBM256T-W22 WEG 7.5HP Electric Brake Motor, 900RPM
Enlarge Photo

Product ID: 00709ET3EBM256T-W22

00709ET3EBM256T-W22 WEG 7.5HP Electric Brake Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00709ET3EBM256T-W22

Selected accessories will also be added to cart
$5,709.35 / Each
Quantity:
IC411 - TEFC, IP55, 254T/256T Frame, 230/460VAC 60Hz 3 Phase, 13500907, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6T
Output7.5 HP (5.5 kW)
Number of Poles8
Frequency60 Hz
Rated speed880 rpm
Slip2.22 %
Rated voltage230/460 V
Rated current22.2/11.1 A
L. R. Amperes118/58.8 A
LRC5.3x(Code G)
No load current13.0/6.50 A
Rated torque44.8 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time59s (cold) 33s (hot)
Moment of inertia (J)4.43 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?54.0 dB(A)
Approx. weight?335 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  87.5  87.5

Power factor

50%75%100%
0.50  0.63  0.71

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Brake TypeWEG - 150.0 Nm
Brake input Voltage220-240 V
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Horsepower
7.5HP
Enclosure
TEFC
Speed
900RPM
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254T
Frame
256T
