Motor/Control Division

Frame	160L
Output	10 HP (7.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	17.4 A
L. R. Amperes	85.3 A
LRC	4.9
No load current	9.50 A
Rated torque	72.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	51.0 dB(A)
Approx. weightÂ³	301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.8	88.5	87.5

Power factor

50%	75%	100%
0.56	0.68	0.75

Frame	160L
Output	10 HP (7.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	17.2 A
L. R. Amperes	89.4 A
LRC	5.2
No load current	10.5 A
Rated torque	71.5 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	51.0 dB(A)
Approx. weightÂ³	301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.0	88.3	87.5

Power factor

50%	75%	100%
0.52	0.64	0.72

Frame	160L
Output	10 HP (7.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	17.0 A
L. R. Amperes	93.5 A
LRC	5.5
No load current	11.5 A
Rated torque	71.0 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	51.0 dB(A)
Approx. weightÂ³	301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.2	88.0	87.5

Power factor

50%	75%	100%
0.49	0.61	0.70

Frame	160L
Output	10 HP (7.5 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	460 V
Rated current	15.0 A
L. R. Amperes	85.5 A
LRC	5.7
No load current	9.51 A
Rated torque	58.9 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	54.0 dB(A)
Approx. weightÂ³	301 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.0	89.5

Power factor

50%	75%	100%
0.49	0.62	0.70

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic

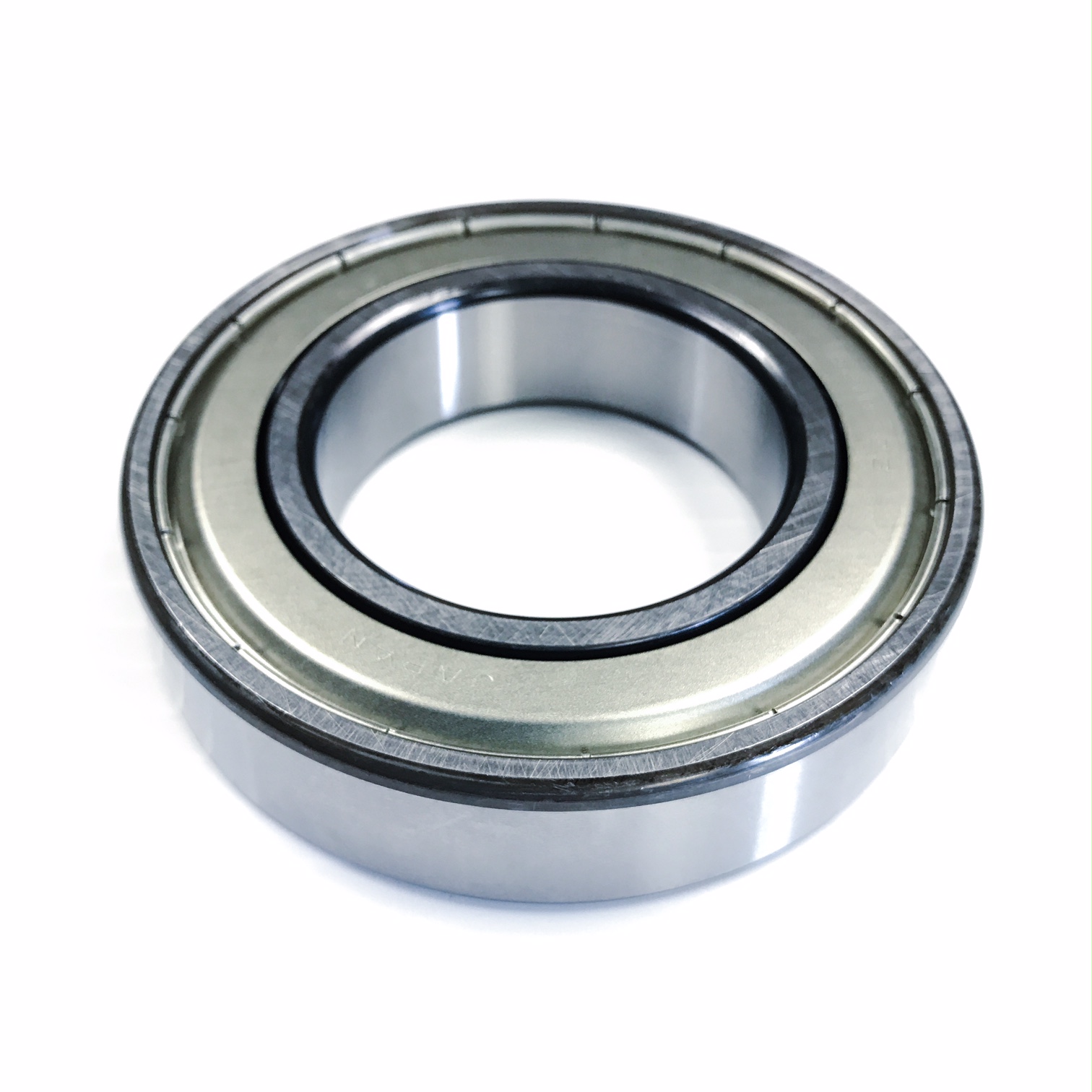

Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
