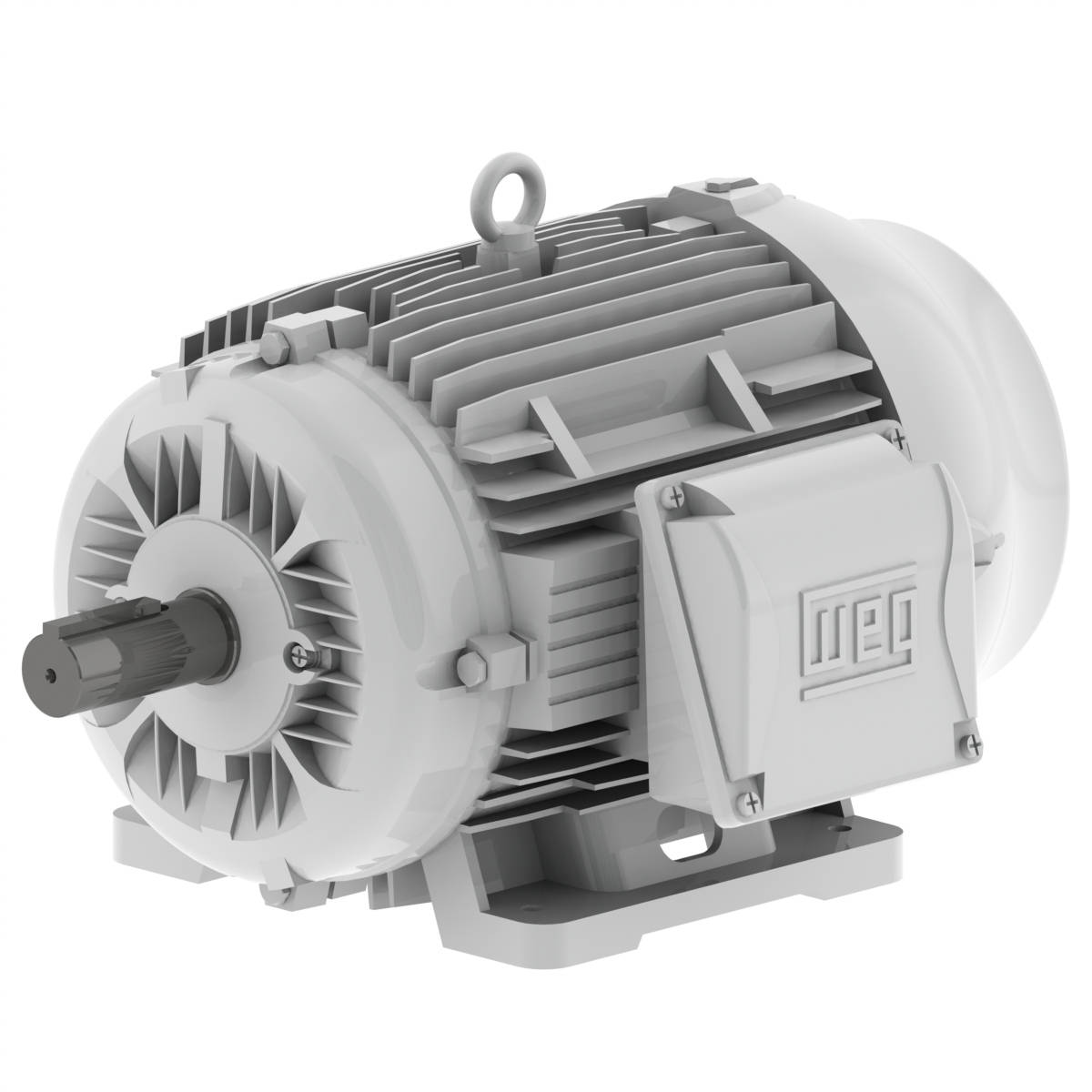

Motor/Control Division

Frame	254/6T
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1100 rpm
Slip	8.33 %
Rated voltage	208-230/460 V
Rated current	21.0-19.0/9.51 A
L. R. Amperes	137-124/61.8 A
LRC	6.5x(Code H)
No load current	7.08-6.40/3.20 A
Rated torque	35.8 ft.lb
Locked rotor torque	320 %
Breakdown torque	0 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.92 sq.ft.lb
Design	D
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	270 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	82.5

Power factor

50%	75%	100%
0.76	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 9010 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
