00712ET3E254JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 1200RPM

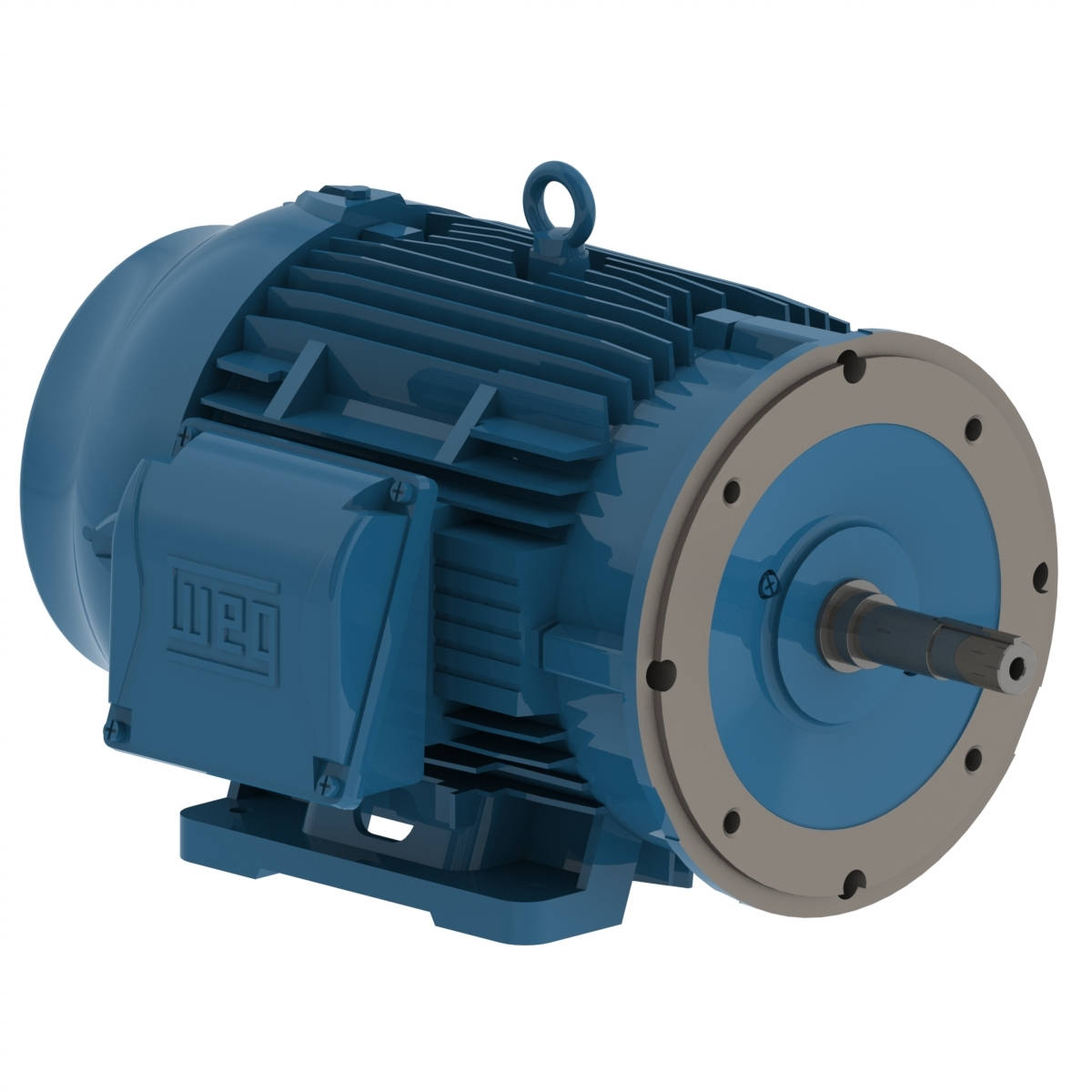

Enlarge Photo

Product ID: 00712ET3E254JM-W22

00712ET3E254JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712ET3E254JM-W22

Selected accessories will also be added to cart
$2,184.95 / Each
Quantity:
IC411 - TEFC, IP55, 254JM/256JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 12775600, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame254/6JM
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1178 rpm
Slip1.83 %
Rated voltage230/460 V
Rated current19.0/9.48 A
L. R. Amperes129/64.5 A
LRC6.8x(Code H)
No load current9.00/4.50 A
Rated torque33.4 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?283 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  91.0

Power factor

50%75%100%
0.63  0.74  0.80
Frame254/6JM
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage380 V
Rated current11.4 A
L. R. Amperes59.3 A
LRC5.2x(Code F)
No load current4.50 A
Rated torque40.6 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?283 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.0  88.0

Power factor

50%75%100%
0.70  0.79  0.83
Frame254/6JM
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed975 rpm
Slip2.50 %
Rated voltage400 V
Rated current11.0 A
L. R. Amperes63.8 A
LRC5.8x(Code G)
No load current4.75 A
Rated torque40.4 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?283 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.0  88.0

Power factor

50%75%100%
0.66  0.77  0.82
Frame254/6JM
Output7.5 HP (5.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed975 rpm
Slip2.50 %
Rated voltage415 V
Rated current10.7 A
L. R. Amperes66.3 A
LRC6.2x(Code H)
No load current4.95 A
Rated torque40.4 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)3.92 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?283 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.0  88.0

Power factor

50%75%100%
0.64  0.75  0.81

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C3)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Fan materialPlastic
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealV'Ring
DE bearing SealV'Ring
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Close Coupled Pump
Horsepower
7.5HP
Enclosure
TEFC
Frame
254JM
Frame
256JM
