00712ET3EBM254T-W22 WEG 7.5HP Electric Brake Motor, 1200RPM

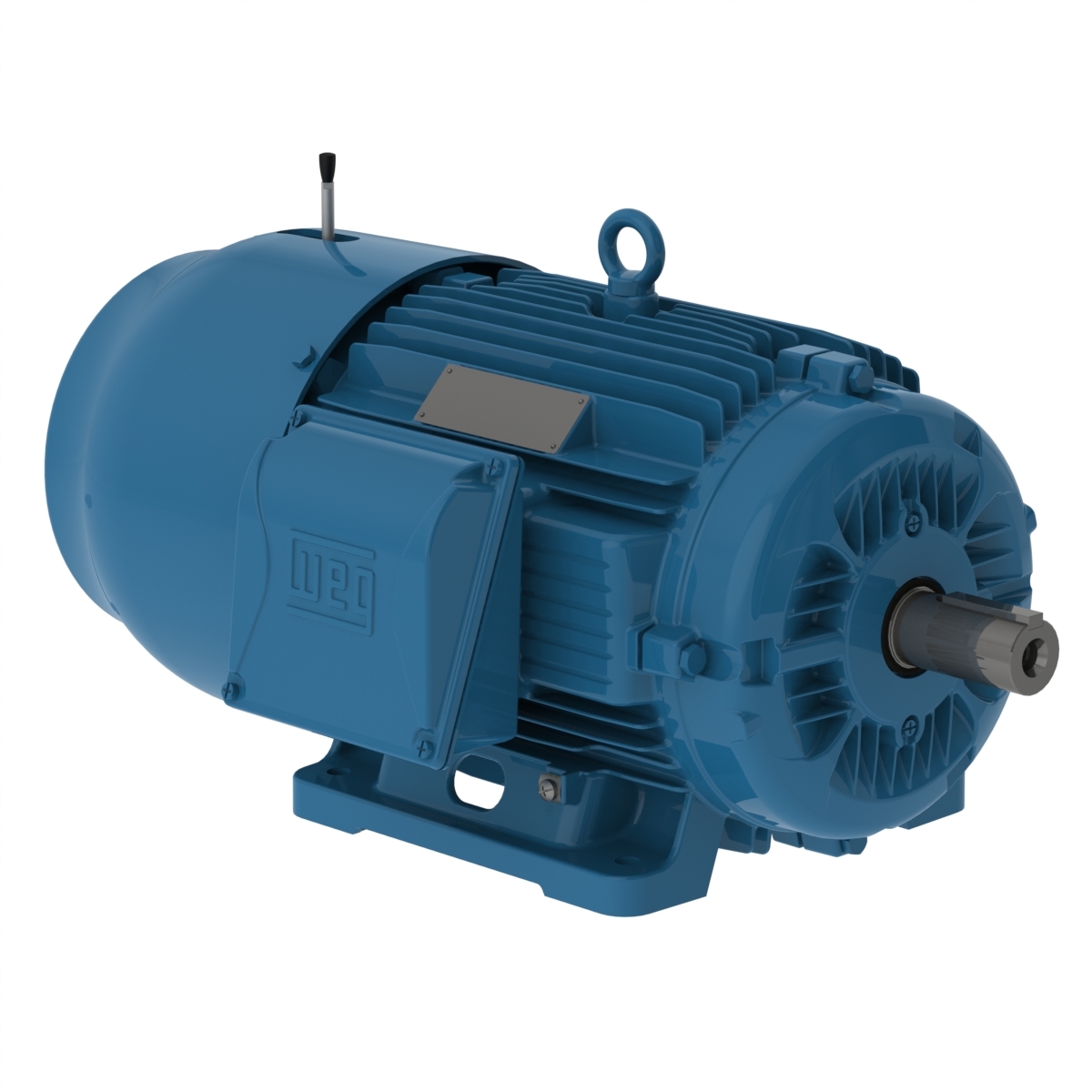

Enlarge Photo

Product ID: 00712ET3EBM254T-W22

00712ET3EBM254T-W22 WEG 7.5HP Electric Brake Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712ET3EBM254T-W22

Selected accessories will also be added to cart
$4,603.08 / Each
Quantity:
IC411 - TEFC, IP55, 254T/256T Frame, 208-230/460V 3-Phase 60Hz, Foot Mount, 13474053

Electric Motors

Frame 254/6T
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 21.0-19.0/9.48 A
L. R. Amperes 143-129/64.5 A
LRC 6.8x(Code H)
No load current 7.76-9.00/4.50 A
Rated torque 33.1 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 3.92 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 335 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  90.2  91.0

Power factor

50% 75% 100%
0.63  0.74  0.80

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Brake Type WEG - 235.0 Nm
Brake input Voltage 220-240 V
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6309 C3  6209 C3
Sealing V'Ring  Lip Seal
Lubrication interval 20000 h  20000 h
Lubricant amount 13 g  9 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
314 lb  650 lb

 Loading...

Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
7.5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254T
Frame
256T
