/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, TEFC/Foot Mount, AEGIS Ring/00712ET3H254T-SG WEG 7.5HP General Purpose Electric Motor, 1200RPM

Product ID: 00712ET3H254T-SG

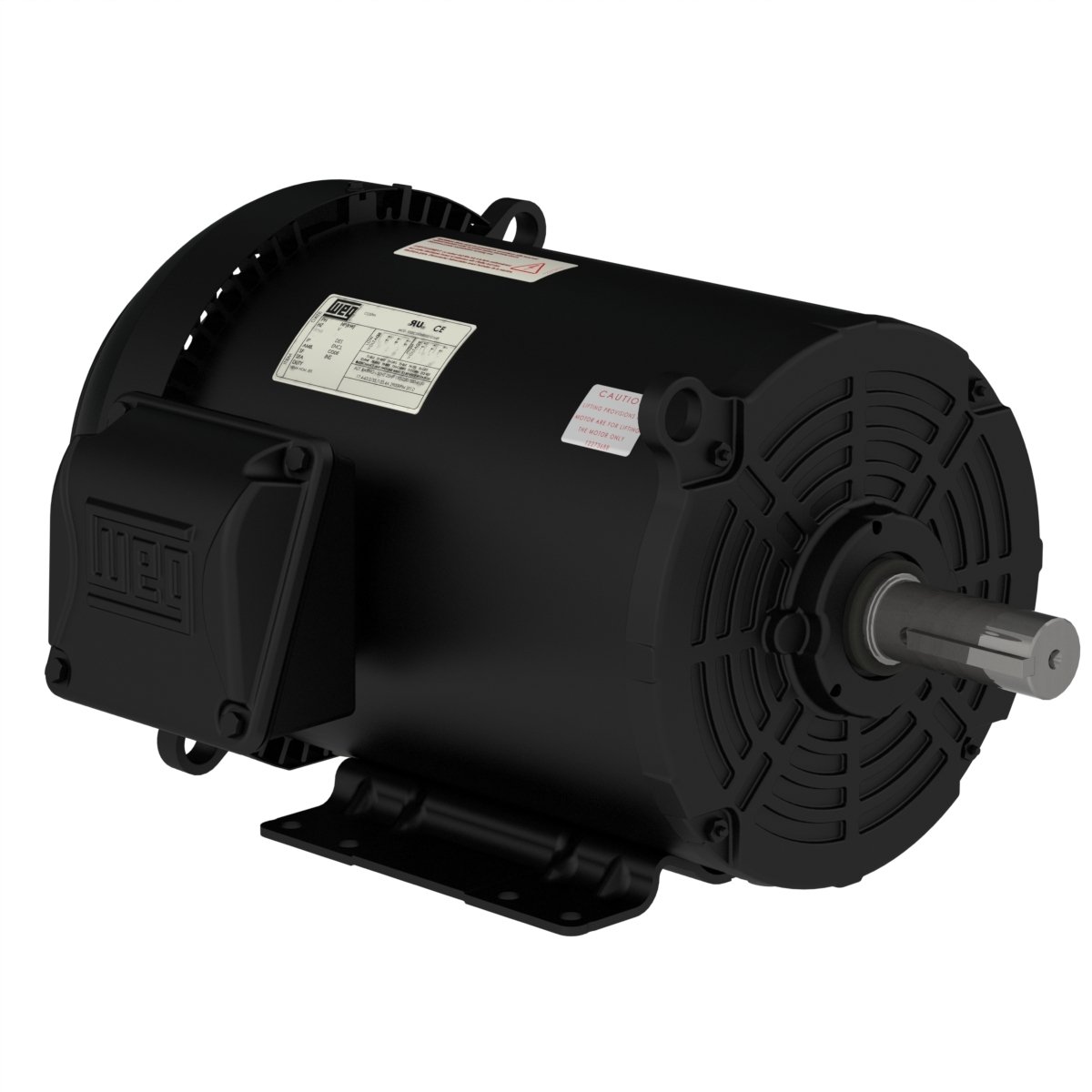

00712ET3H254T-SG WEG 7.5HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00712ET3H254T-SG

Selected accessories will also be added to cart

$1,850.31 / Each

Quantity:

IC411 - TEFC 254T/256T Frame, 575VAC 3 Phase 60Hz, 13273262, Rolled Steel NEMA Premium Efficiency, Foot Mount, AEGIS Shaft Grounding Ring, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6T
Output	7.5 HP (5.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	575 V
Rated current	7.98 A
L. R. Amperes	43.1 A
LRC	5.4x(Code G)
No load current	4.02 A
Rated torque	33.1 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	75s (cold) 42s (hot)

Moment of inertia (J)	2.34 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	59.0 dB(A)
Approx. weight?	232 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	91.0

Power factor

50%	75%	100%
0.58	0.70	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
