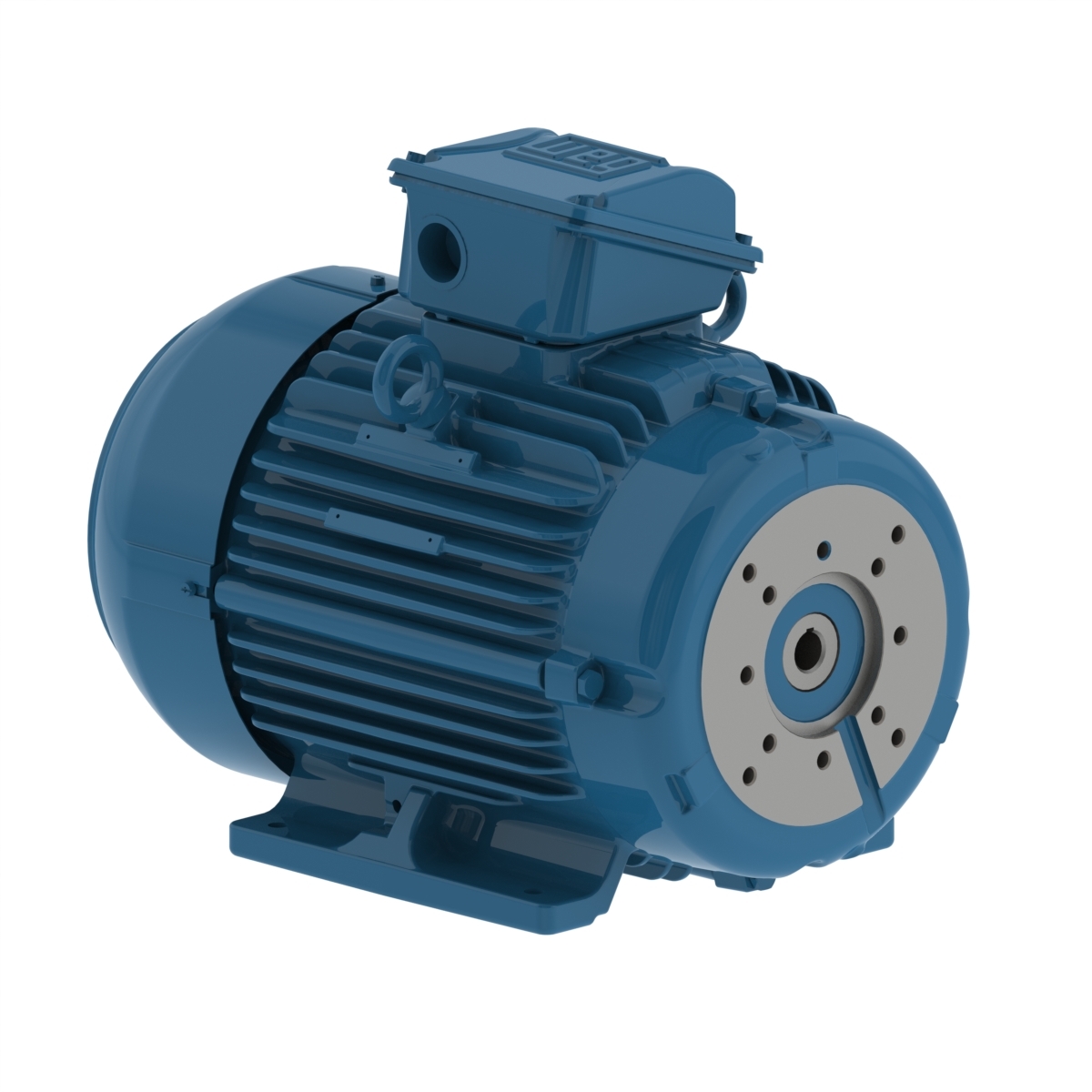

00718EP3EHP213TYZ7F3 WEG 7.5HP Hydraulic Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00718EP3EHP213TYZ7F3

00718EP3EHP213TYZ7F3 WEG 7.5HP Hydraulic Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00718EP3EHP213TYZ7F3

Selected accessories will also be added to cart
$938.06 / Each
Quantity:
IC411 - TEFC, 213TYZ Frame, 208-230/460V 3-Phase 60Hz, High Efficiency, Foot Mount, SAE-A, 13565752

Electric Motors

Frame213TYZ
Output7.5 HP (5.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1775 rpm
Slip1.39 %
Rated voltage208-230/460 V
Rated current24.0-21.7/10.9 A
L. R. Amperes209-189/94.8 A
LRC8.7x(Code M)
No load current16.8-15.2/7.60 A
Rated torque21.9 ft.lb
Locked rotor torque290 %
Breakdown torque409 %
Locked rotor time25s (cold) 14s (hot)
DesignA
Insulation ClassF
Temperature rise80 K
Duty CycleS3
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-3
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.087.589.5

Power factor

50%75%100%
0.480.620.71

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ 6207 ZZ
SealingV'RingV'Ring
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
7.5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
213TYZ
