/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount, C-Face/00736ET3E213TC-W22 WEG 7.5HP Severe Duty Electric Motor, 3600RPM

Product ID: 00736ET3E213TC-W22

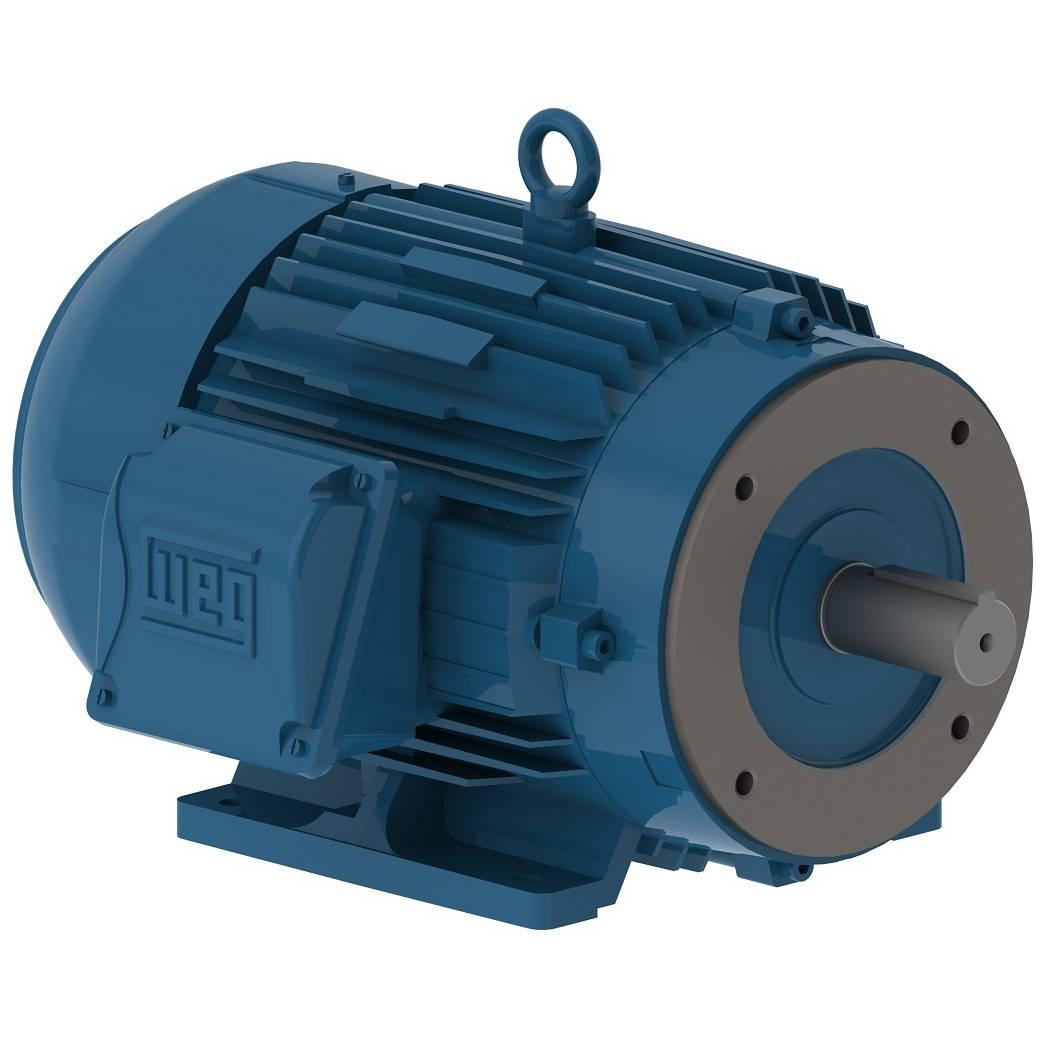

00736ET3E213TC-W22 WEG 7.5HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3E213TC-W22

Selected accessories will also be added to cart

$1,047.53 / Each

Quantity:

IC411 - TEFC, IP55, 213TC/215TC Frame, 230/460VAC 60Hz 3 Phase, 12446714, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	17.5/8.76 A
L. R. Amperes	126/63.1 A
LRC	7.2x(Code H)
No load current	5.40/2.70 A
Rated torque	11.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	89.5

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	213/5TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	7.24 A
L. R. Amperes	59.4 A
LRC	8.2x(Code J)
No load current	2.84 A
Rated torque	8.93 ft.lb
Locked rotor torque	260 %
Breakdown torque	380 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.7	88.2	88.2

Power factor

50%	75%	100%
0.74	0.83	0.88

Frame	213/5TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	7.03 A
L. R. Amperes	64.0 A
LRC	9.1x(Code K)
No load current	3.05 A
Rated torque	8.90 ft.lb
Locked rotor torque	290 %
Breakdown torque	420 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.4	88.3	88.3

Power factor

50%	75%	100%
0.70	0.81	0.86

Frame	213/5TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2952 rpm
Slip	1.60 %
Rated voltage	415 V
Rated current	6.92 A
L. R. Amperes	67.1 A
LRC	9.7x(Code L)
No load current	3.22 A
Rated torque	8.89 ft.lb
Locked rotor torque	320 %
Breakdown torque	450 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.1	88.5	88.5

Power factor

50%	75%	100%
0.67	0.78	0.84

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	380 V
Rated current	10.6 A
L. R. Amperes	60.4 A
LRC	5.7x(Code F)
No load current	2.70 A
Rated torque	13.6 ft.lb
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	88.5	87.5

Power factor

50%	75%	100%
0.80	0.87	0.90

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	400 V
Rated current	10.2 A
L. R. Amperes	65.3 A
LRC	6.4x(Code G)
No load current	2.90 A
Rated torque	13.6 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.77	0.86	0.89

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	415 V
Rated current	9.82 A
L. R. Amperes	67.8 A
LRC	6.9x(Code H)
No load current	3.30 A
Rated torque	13.5 ft.lb
Locked rotor torque	210 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	160 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	88.5

Power factor

50%	75%	100%
0.74	0.84	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
