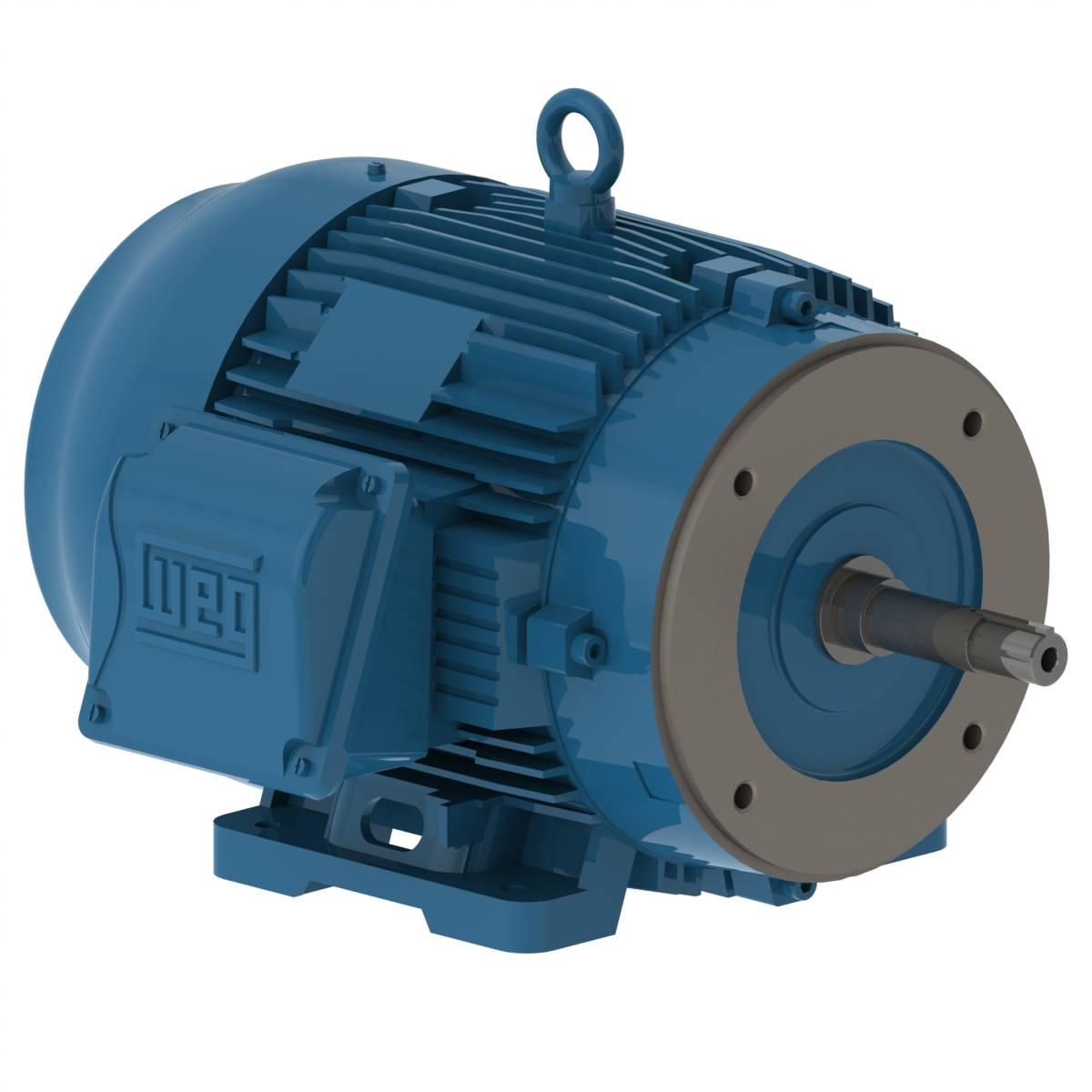

00736ET3H213JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00736ET3H213JM-W22

00736ET3H213JM-W22 WEG 7.5HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ET3H213JM-W22

Selected accessories will also be added to cart
$1,262.91 / Each
Quantity:
IC411 - TEFC, IP55, 213JM/215JM Frame, 575VAC 60Hz 3 Phase, 12711992, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame213/5JM
Output7.5 HP (5.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage575 V
Rated current7.01 A
L. R. Amperes50.5 A
LRC7.2x(Code H)
No load current2.16 A
Rated torque11.2 ft.lb
Locked rotor torque210 %
Breakdown torque300 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)0.4665 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?163 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  89.5  89.5

Power factor

50%75%100%
0.75  0.84  0.88

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
7.5HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
213JM
Frame
215JM
