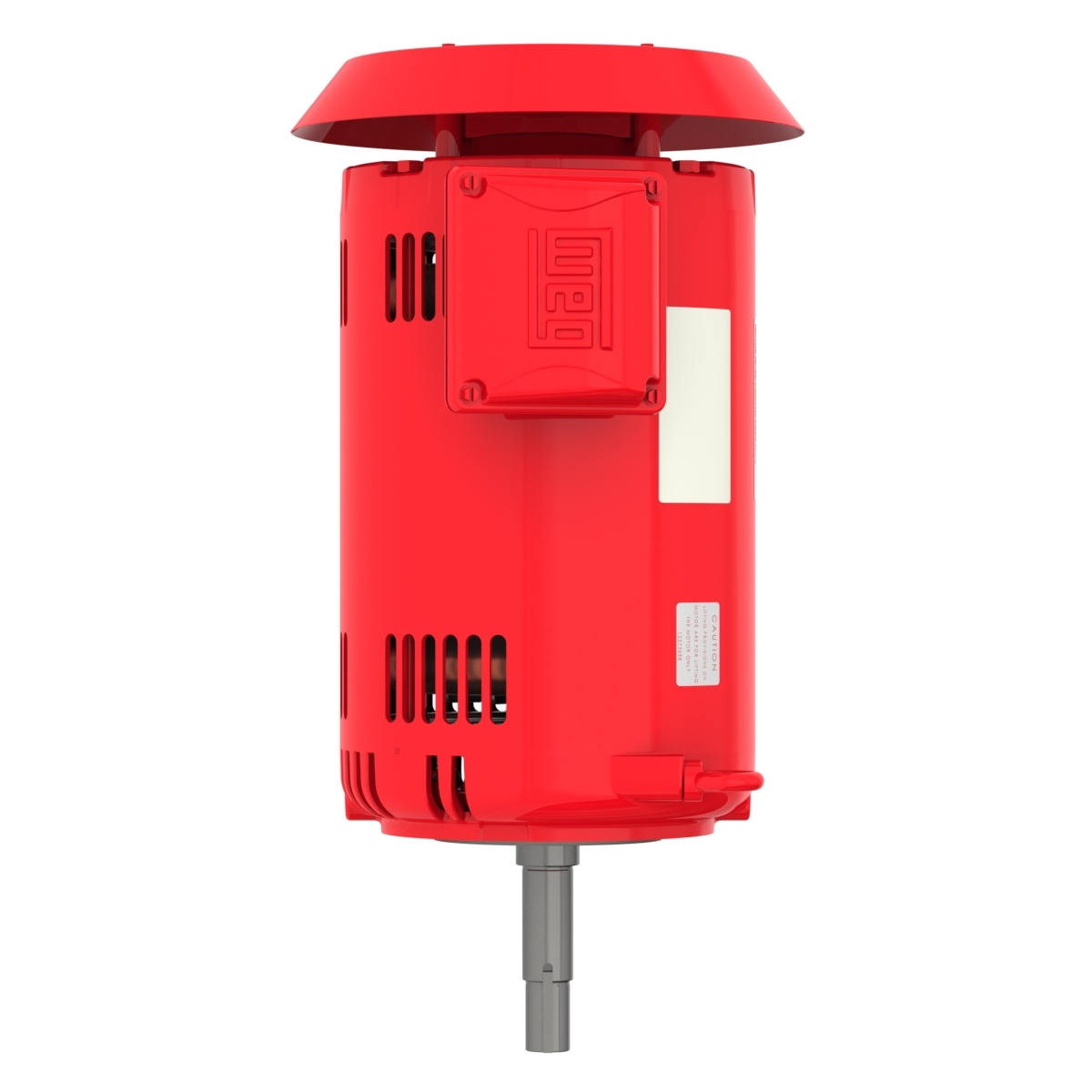

Motor/Control Division

Frame	182/4JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	230/460 V
Rated current	17.7/8.86 A
L. R. Amperes	124/62.0 A
LRC	7.0x(Code H)
No load current	6.99/3.49 A
Rated torque	11.3 ft.lb
Locked rotor torque	180 %
Breakdown torque	280 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.1559 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	65.0 dB(A)
Approx. weight?	70.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	87.5

Power factor

50%	75%	100%
0.74	0.84	0.89

Frame	182/4JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2850 rpm
Slip	5.00 %
Rated voltage	190/380 V
Rated current	22.0/11.0 A
L. R. Amperes	112/56.1 A
LRC	5.1x(Code E)
No load current	6.86/3.43 A
Rated torque	13.8 ft.lb
Locked rotor torque	130 %
Breakdown torque	200 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.1559 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	70.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.1	86.4	83.2

Power factor

50%	75%	100%
0.81	0.89	0.91

Frame	182/4JM
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2875 rpm
Slip	4.17 %
Rated voltage	220/415 V
Rated current	19.6/10.4 A
L. R. Amperes	112/59.3 A
LRC	5.7x(Code F)
No load current	7.31/3.88 A
Rated torque	13.7 ft.lb
Locked rotor torque	140 %
Breakdown torque	220 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.1559 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	70.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.9	86.9	84.5

Power factor

50%	75%	100%
0.77	0.86	0.90

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
