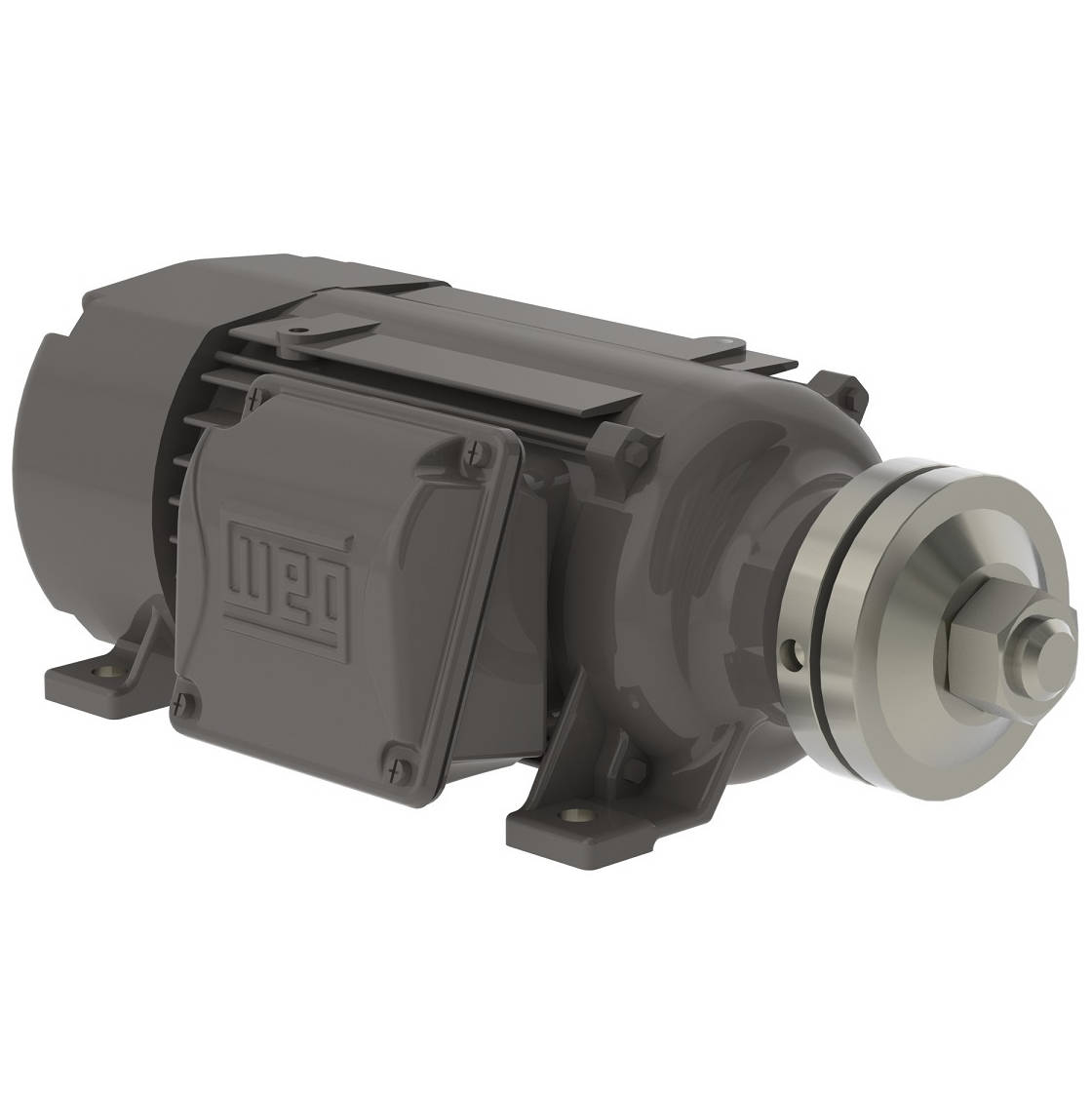

00736ES3ESA80LR WEG 7.5HP Saw Arbor Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00736ES3ESA80LR

00736ES3ESA80LR WEG 7.5HP Saw Arbor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736ES3ESA80LR

Selected accessories will also be added to cart
$1,461.38 / Each
Quantity:
IC411 - TEFC, IP54, 80L/MS Frame, 208-230/460VAC 60Hz 3 Phase, 13574407, M30x3.5mm RH Thread

Electric Motors

Frame80L/MS
Output7.5 HP (5.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3490 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current21.6-19.5/9.76 A
L. R. Amperes199-179/89.8 A
LRC9.2
No load current7.59-8.80/4.40 A
Rated torque11.3 ft.lb
Locked rotor torque400 %
Breakdown torque459 %
Locked rotor time9s (cold) 5s (hot)
DesignN
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleS6
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP54
EnclosureIC411 - TEFC
MountingB3R(D)
Rotation?CCW
Noise level?62.0 dB(A)
Approx. weight?120 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.2  87.0  87.4

Power factor

50%75%100%
0.64  0.75  0.81

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeRWG(Rp) 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6307 ZZ  6207 ZZ
SealingWithout Bearing Seal Without Bearing Seal
Lubrication interval0 h 0 h
Lubricant amount0 g 0 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
272 lb 393 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
7.5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
80L/MS
