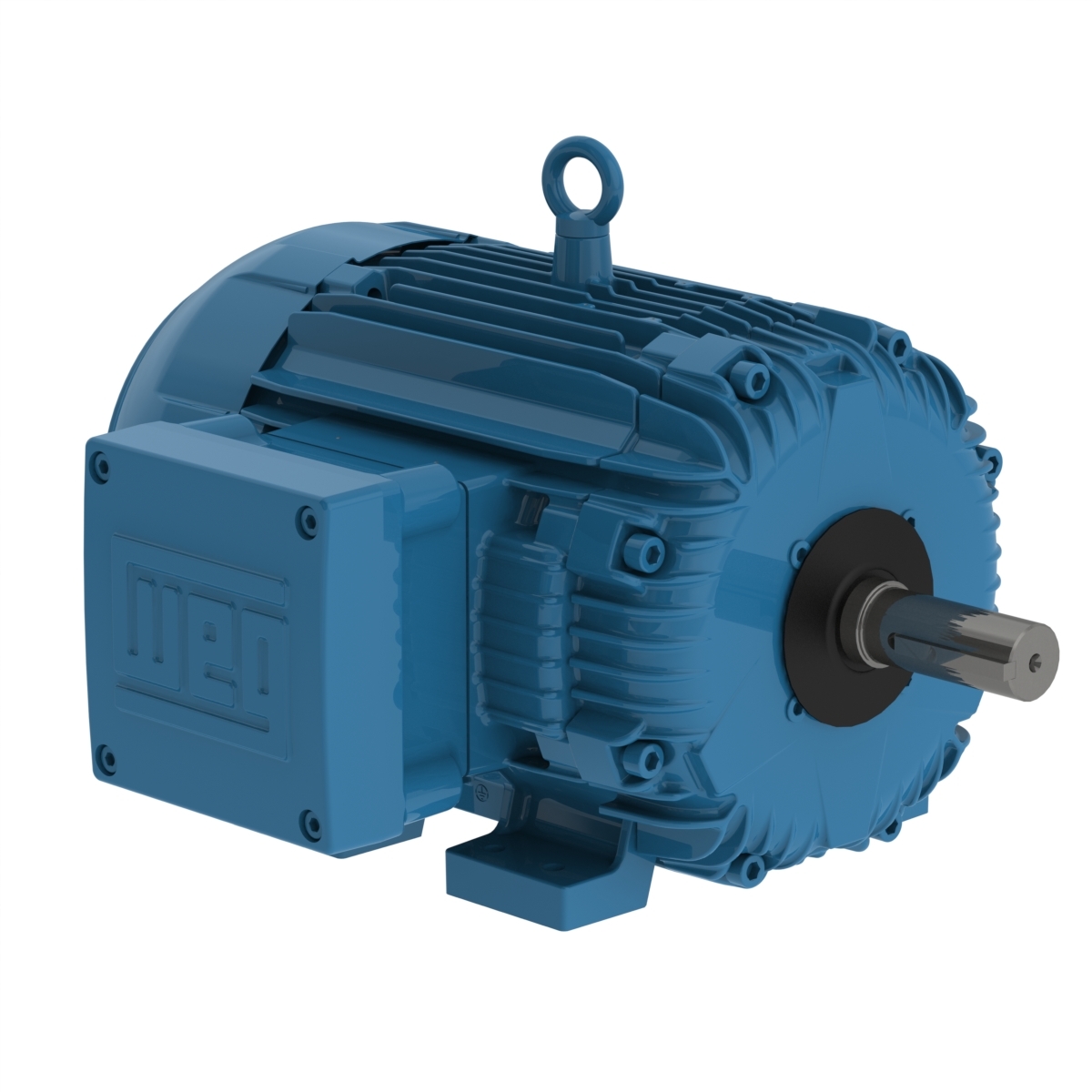

00736XT3E213T WEG 7.5HP Explosion Proof Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00736XT3E213T

00736XT3E213T WEG 7.5HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00736XT3E213T

Selected accessories will also be added to cart
$1,464.94 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14188207, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 17.1/8.57 A
L. R. Amperes 120/60.0 A
LRC 7.0x(Code H)
No load current 5.60/2.80 A
Rated torque 11.2 ft.lb
Locked rotor torque 240 %
Breakdown torque 330 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.4696 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 205 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  88.5  89.5

Power factor

50% 75% 100%
0.78  0.87  0.90
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 10.3 A
L. R. Amperes 63.9 A
LRC 6.2x(Code G)
No load current 2.70 A
Rated torque 13.6 ft.lb
Locked rotor torque 190 %
Breakdown torque 240 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.4696 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 205 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  87.5  89.0

Power factor

50% 75% 100%
0.84  0.89  0.91
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 9.89 A
L. R. Amperes 67.3 A
LRC 6.8x(Code G)
No load current 2.85 A
Rated torque 13.5 ft.lb
Locked rotor torque 210 %
Breakdown torque 270 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.4696 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 205 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  88.5  89.2

Power factor

50% 75% 100%
0.81  0.88  0.90
Frame 213/5T
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 9.61 A
L. R. Amperes 71.1 A
LRC 7.4x(Code H)
No load current 2.90 A
Rated torque 13.5 ft.lb
Locked rotor torque 290 %
Breakdown torque 310 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.4696 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 205 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  88.5  89.5

Power factor

50% 75% 100%
0.79  0.86  0.89

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
7.5HP
Enclosure
TEFC
Frame
213T
Frame
215T
