Motor/Control Division

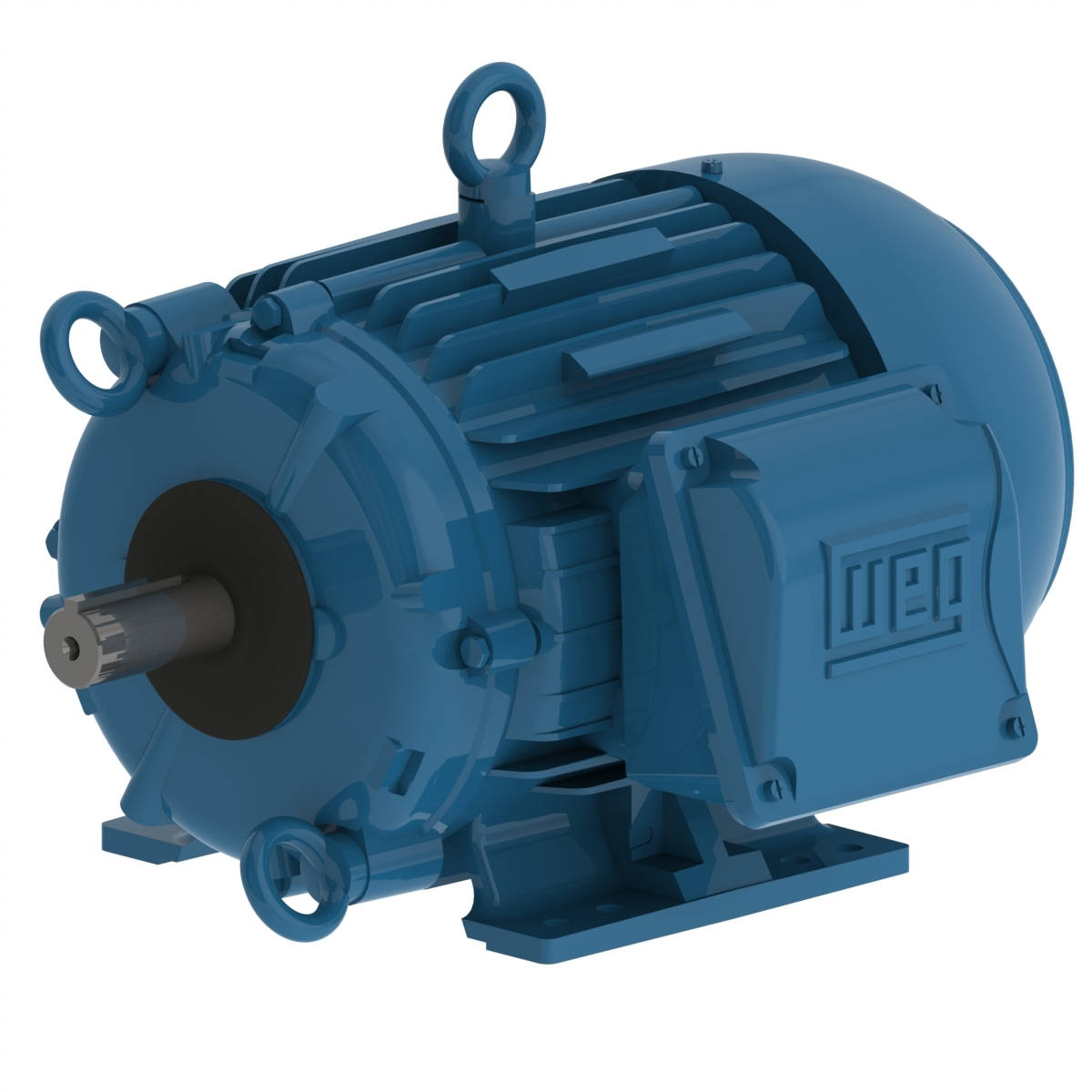

Frame	213T
Output	7.5 HP (5.5 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	575 V
Rated current	7.61 A
L. R. Amperes	63.9 A
LRC	8.4x(Code K)
No load current	3.60 A
Rated torque	22.3 ft.lb
Locked rotor torque	200 %
Breakdown torque	300 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	1.38 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	61.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	88.5

Power factor

50%	75%	100%
0.64	0.77	0.82

Frame	213T
Output	1.75 HP (1.3 kW)
Number of Poles	8/4
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	575 V
Rated current	2.72 A
L. R. Amperes	12.5 A
LRC	4.6x(Code J)
No load current	2.00 A
Rated torque	10.4 ft.lb
Locked rotor torque	140 %
Breakdown torque	220 %
Locked rotor time	73s (cold) 41s (hot)

Moment of inertia (J)	1.38 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	2.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	78.5	80.0

Power factor

50%	75%	100%
0.40	0.50	0.60

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
