01012ET3E256JM-W22 WEG 10HP JM Close Coupled Pump Electric Motor, 1200RPM

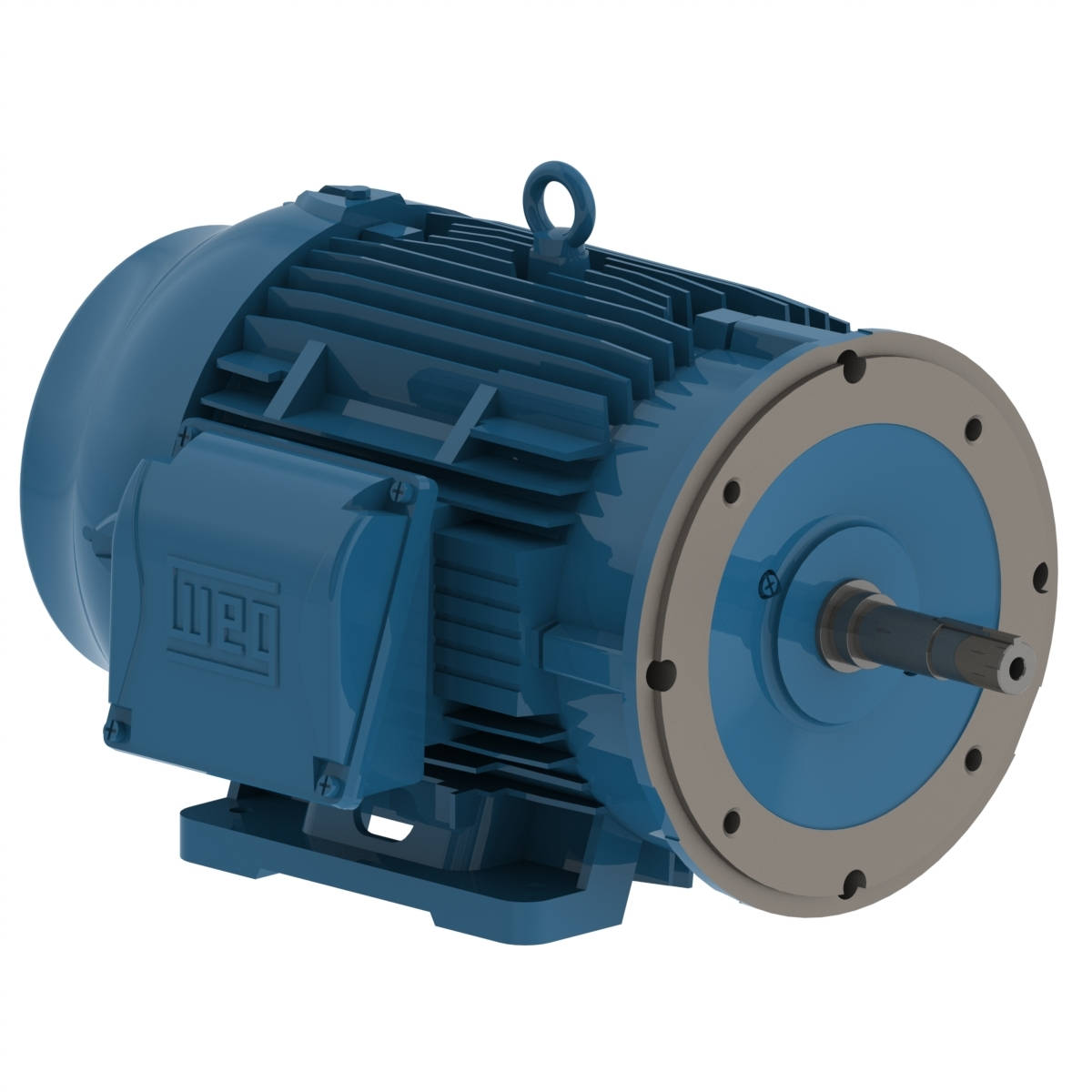

Enlarge Photo

01012ET3E256JM-W22 WEG 10HP JM Close Coupled Pump Electric Motor, 1200RPM

Product ID: 01012ET3E256JM-W22

MFG: WEG Electric Corporation
MFG Part Number: 01012ET3E256JM-W22

Selected accessories will also be added to cart
$2,651.31 / Each
Quantity:
IC411 - TEFC, IP55, 254JM/256JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 12941830, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted

Electric Motors

Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1175 rpm
Slip2.08 %
Rated voltage230/460 V
Rated current26.6/13.3 A
L. R. Amperes173/86.5 A
LRC6.5x(Code H)
No load current12.0/6.00 A
Rated torque44.7 ft.lb
Locked rotor torque229 %
Breakdown torque280 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)4.43 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.63  0.74  0.78
Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed965 rpm
Slip3.50 %
Rated voltage380 V
Rated current15.4 A
L. R. Amperes78.5 A
LRC5.1x(Code F)
No load current6.40 A
Rated torque54.4 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)4.43 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  89.5  89.1

Power factor

50%75%100%
0.66  0.79  0.83
Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage400 V
Rated current14.8 A
L. R. Amperes84.4 A
LRC5.7x(Code G)
No load current6.80 A
Rated torque54.1 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)4.43 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  90.2  89.5

Power factor

50%75%100%
0.63  0.77  0.82
Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed975 rpm
Slip2.50 %
Rated voltage415 V
Rated current14.4 A
L. R. Amperes87.8 A
LRC6.1x(Code H)
No load current7.20 A
Rated torque53.9 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)4.43 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?57.0 dB(A)
Approx. weight?305 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  89.5

Power factor

50%75%100%
0.60  0.75  0.81

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Close Coupled Pump
Horsepower
10HP
Enclosure
TEFC
Frame
254JM
Frame
256JM
