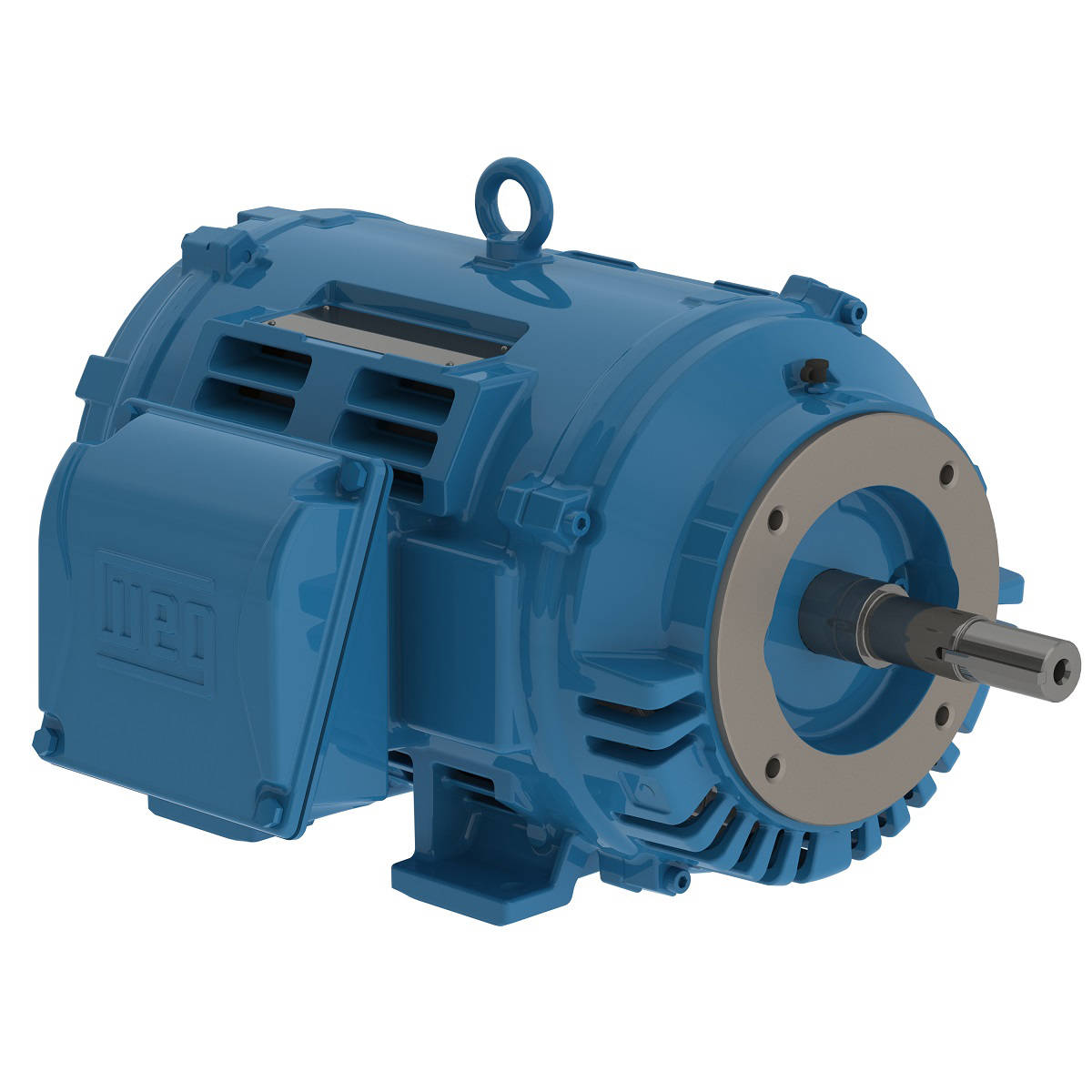

01012OT3E256JM-W40 WEG 10HP JM Close-Coupled Pump Electric Motor, 1200RPM
Enlarge Photo

Product ID: 01012OT3E256JM-W40

01012OT3E256JM-W40 WEG 10HP JM Close-Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01012OT3E256JM-W40

Selected accessories will also be added to cart
$2,045.22 / Each
Quantity:
IC01 - ODP, IP23, 254JM/256JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 14483182, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1180 rpm
Slip1.67 %
Rated voltage230/460 V
Rated current25.6/12.8 A
L. R. Amperes174/87.0 A
LRC6.8x(Code H)
No load current12.2/6.10 A
Rated torque44.5 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)3.53 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?271 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.7

Power factor

50%75%100%
0.62  0.74  0.80
Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage380 V
Rated current15.0 A
L. R. Amperes88.5 A
LRC5.9x(Code G)
No load current6.10 A
Rated torque54.1 ft.lb
Locked rotor torque190 %
Breakdown torque229 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)3.53 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?271 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.6  89.0  89.1

Power factor

50%75%100%
0.70  0.80  0.85
Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed975 rpm
Slip2.50 %
Rated voltage400 V
Rated current14.6 A
L. R. Amperes93.4 A
LRC6.4x(Code H)
No load current6.50 A
Rated torque53.9 ft.lb
Locked rotor torque210 %
Breakdown torque260 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)3.53 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?271 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.6  89.0  89.1

Power factor

50%75%100%
0.66  0.78  0.83
Frame254/6JM
Output10 HP (7.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed975 rpm
Slip2.50 %
Rated voltage415 V
Rated current14.3 A
L. R. Amperes94.4 A
LRC6.6x(Code H)
No load current6.80 A
Rated torque53.9 ft.lb
Locked rotor torque229 %
Breakdown torque280 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)3.53 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?271 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.6  89.0  89.1

Power factor

50%75%100%
0.63  0.76  0.82

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
10HP
Enclosure
ODP
Frame
254JM/256JM
