01012OT3H256TC-S WEG 10HP General Purpose Electric Motor, 1200RPM

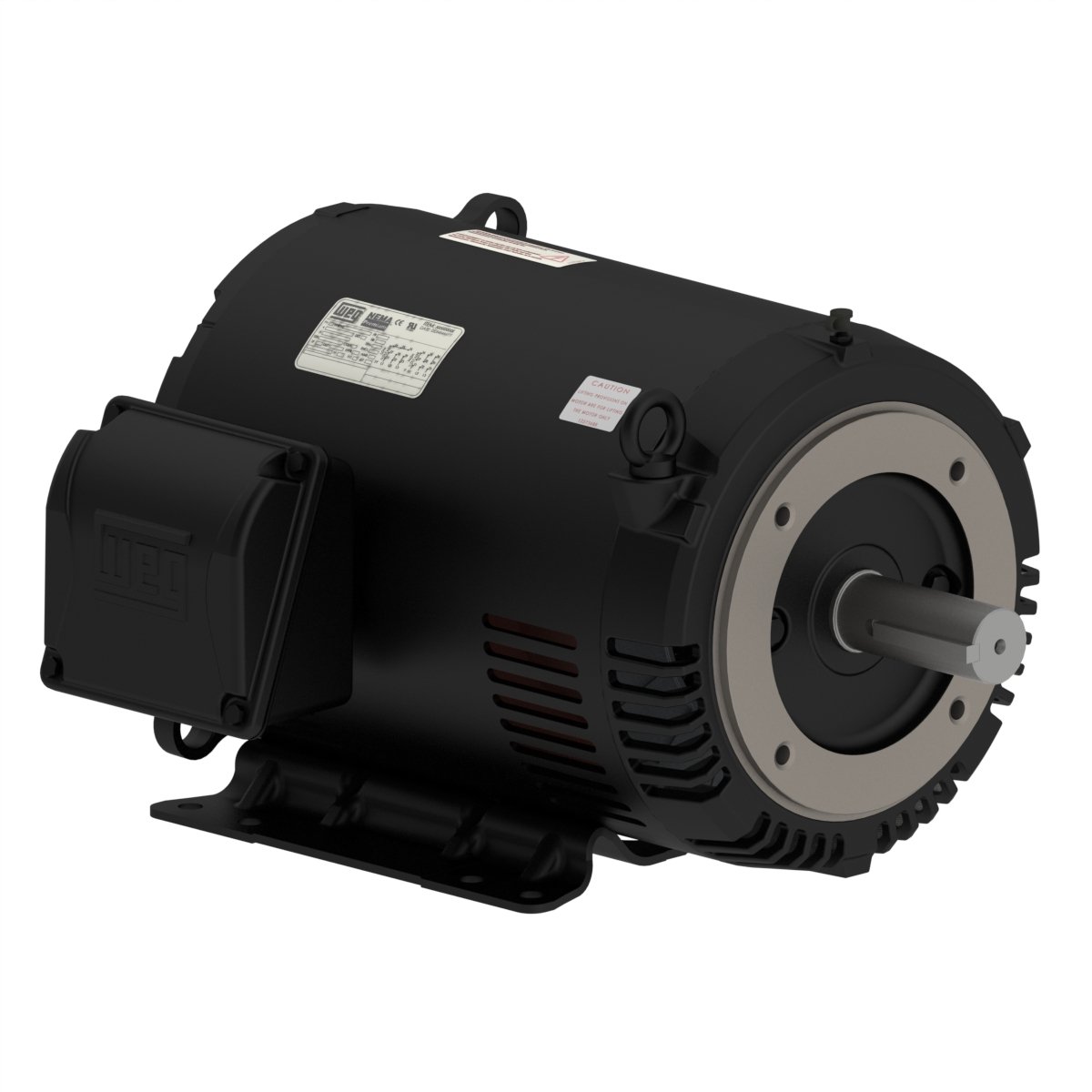

Enlarge Photo

Product ID: 01012OT3H256TC-S

01012OT3H256TC-S WEG 10HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01012OT3H256TC-S

Selected accessories will also be added to cart
$1,588.65 / Each
Quantity:
IC01 - ODP, 254TC/256TC Frame, 575VAC 3-Phase 60Hz, 14331134, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6TC
Output10 HP (7.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1180 rpm
Slip1.67 %
Rated voltage575 V
Rated current11.1 A
L. R. Amperes58.9 A
LRC5.3x(Code G)
No load current5.86 A
Rated torque43.9 ft.lb
Locked rotor torque210 %
Breakdown torque229 %
Locked rotor time61s (cold) 34s (hot)
Moment of inertia (J)2.50 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?59.0 dB(A)
Approx. weight?209 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.56  0.68  0.74

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole1.732"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
10HP
Enclosure
ODP
Input Voltage
575VAC
Frame
254TC/256TC
