/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/575V/01018ET3H215T-W22 WEG 10HP Severe Duty Electric Motor, 1800RPM

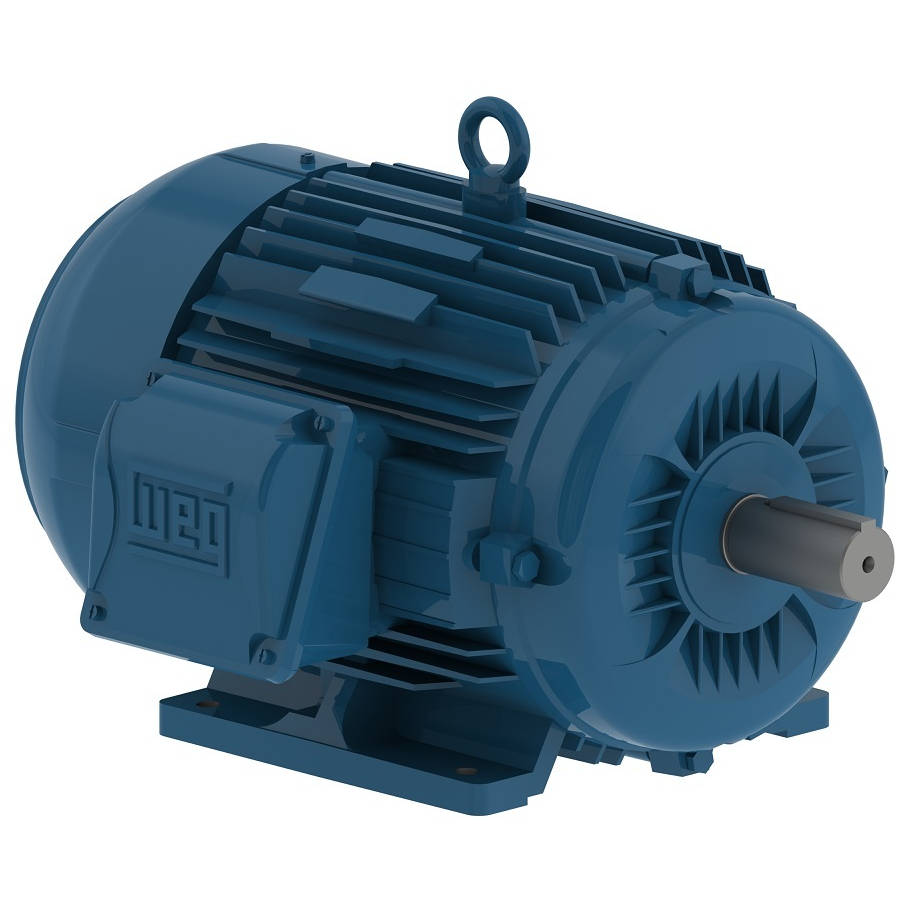

01018ET3H215T-W22 WEG 10HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01018ET3H215T-W22

01018ET3H215T-W22 WEG 10HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ET3H215T-W22

Selected accessories will also be added to cart
$1,132.97 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 11442841, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output10 HP (7.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage575 V
Rated current9.92 A
L. R. Amperes63.5 A
LRC6.4x(Code H)
No load current4.52 A
Rated torque29.8 ft.lb
Locked rotor torque200 %
Breakdown torque295 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)1.51 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?58.0 dB(A)
Approx. weight?176 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.66  0.77  0.83

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Horsepower
10HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
213T
Frame
215T
