01018EP3EHP215TYZ7F3 WEG 10HP Hydraulic Pump Electric Motor, 1800RPM

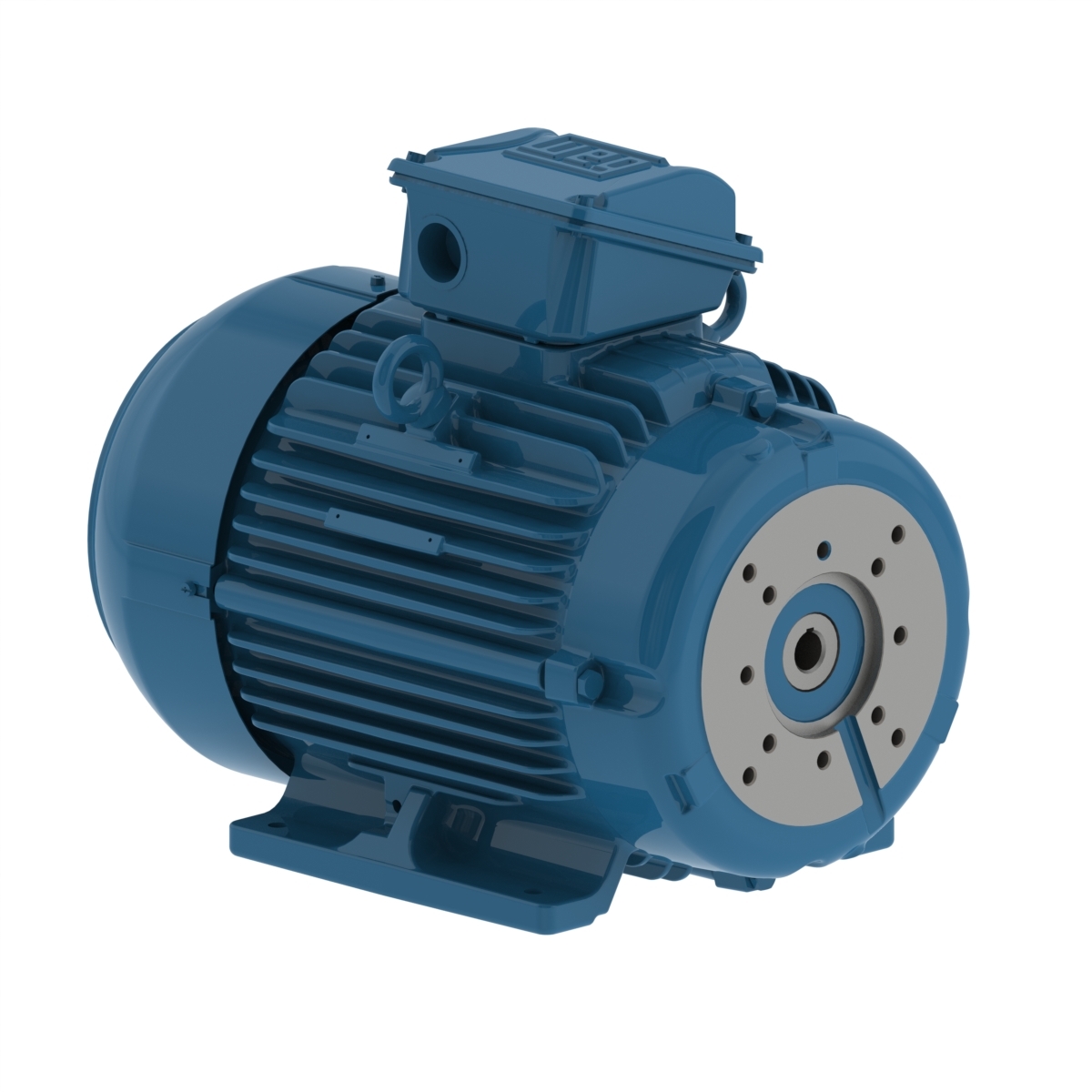

Enlarge Photo

Product ID: 01018EP3EHP215TYZ7F3

01018EP3EHP215TYZ7F3 WEG 10HP Hydraulic Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018EP3EHP215TYZ7F3

Selected accessories will also be added to cart
$1,107.16 / Each
Quantity:
IC411 - TEFC, IP55, 215TYZ Frame, 208-230/460V 3-Phase 60Hz, High Effieciency, Foot Mount, SAE-A, 13565753

Electric Motors

Frame215TYZ
Output10 HP (7.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1775 rpm
Slip1.39 %
Rated voltage208-230/460 V
Rated current34.7-31.4/15.7 A
L. R. Amperes316-286/143 A
LRC9.1x(Code N)
No load current23.9-21.6/10.8 A
Rated torque29.2 ft.lb
Locked rotor torque340 %
Breakdown torque430 %
Locked rotor time18s (cold) 10s (hot)
DesignA
Insulation ClassF
Temperature rise80 K
Duty CycleS3
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-3
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³178 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.087.589.5

Power factor

50%75%100%
0.430.570.67

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout

    Bearing details

     Drive EndNon Drive End
    Bearing type6308 ZZ 6207 ZZ
    SealingWithout Bearing SealV'Ring
    Lubrication interval--
    Lubricant amount--
    Grease TypeMobil Polyrex EM

    Foundation loads

    Max. tractionMax. compression
    619 lb797 lb
    Type
    Electric Motor
    Input Phase
    3-Phase
    Speed
    1800RPM
    Horsepower
    10HP
    Enclosure
    TEFC
    Input Voltage
    208VAC
    Input Voltage
    230VAC
    Input Voltage
    460VAC
    Frame
    215T
