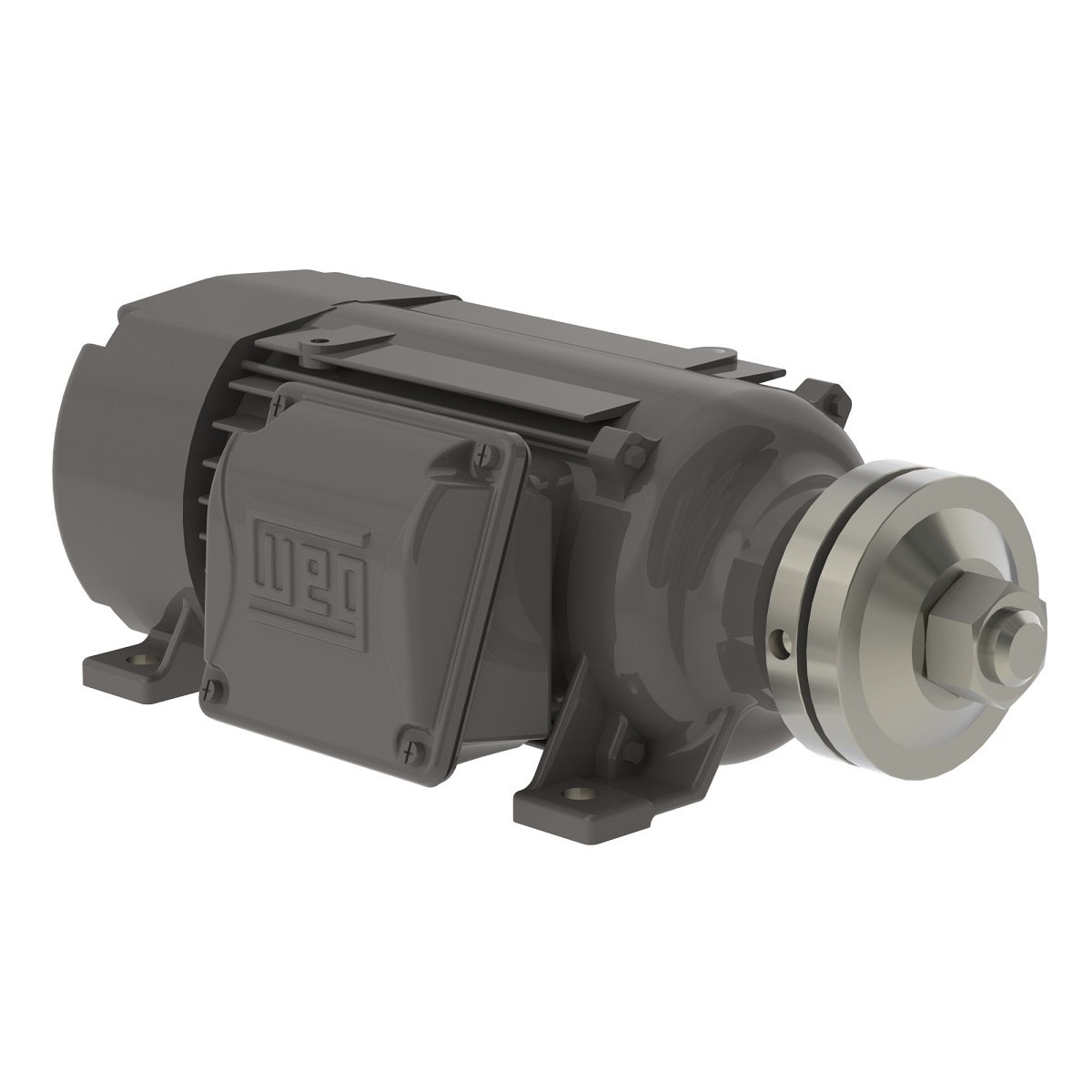

01018ES3ESA90LL WEG 10HP Saw Arbor Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01018ES3ESA90LL

01018ES3ESA90LL WEG 10HP Saw Arbor Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ES3ESA90LL

Selected accessories will also be added to cart
$1,936.64 / Each
Quantity:
IC411 - TEFC, IP54, 90L Frame, 208-230/460V 3-Phase 60Hz, Left Hand Thread, 13574451

Electric Motors

Frame90L/MS
Output10 HP (7.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1715 rpm
Slip4.72 %
Rated voltage208-230/460 V
Rated current32.5-29.4/14.7 A
L. R. Amperes276-250/125 A
LRC8.5
No load current18.0-16.3/8.15 A
Rated torque30.2 ft.lb
Locked rotor torque459 %
Breakdown torque450 %
Locked rotor time10s (cold) 6s (hot)
DesignN
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleS6
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP54
EnclosureIC411 - TEFC
MountingB3R(D)
Rotation?CW
Noise level?51.0 dB(A)
Approx. weight?182 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.5  85.5  85.5

Power factor

50%75%100%
0.54  0.67  0.75

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeRWG(Rp) 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ  6208 ZZ
SealingSem veda??o Without Bearing Seal
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
944 lb 1126 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
10HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
90L
